Exhaust Pipe: Service and Repair

Dual Converter Y-Pipe-3.0L (4V)

Removal and Installation

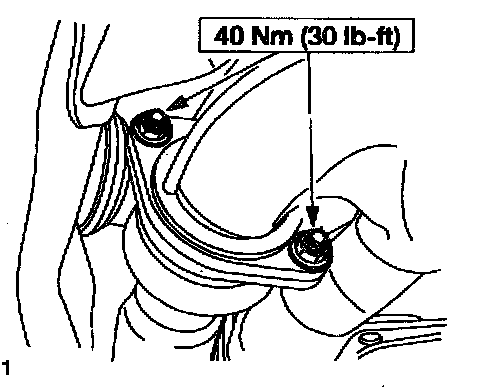

1. Remove the nuts.
2. Raise and support the vehicle.





3. Disconnect the Catalyst Monitor Sensor (CMS) electrical connectors.





4. Support the exhaust system with a suitable jack stand.

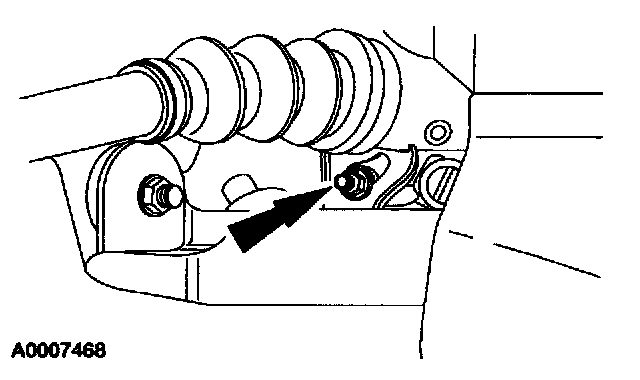

5. Remove the nut.

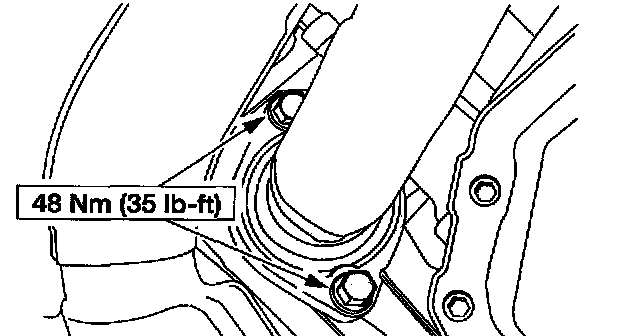

6. Remove the bolts.

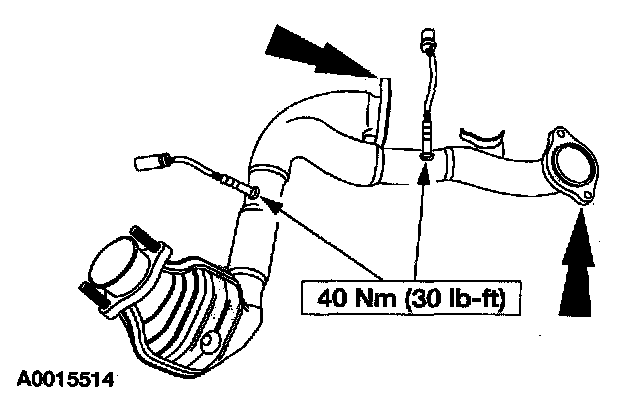

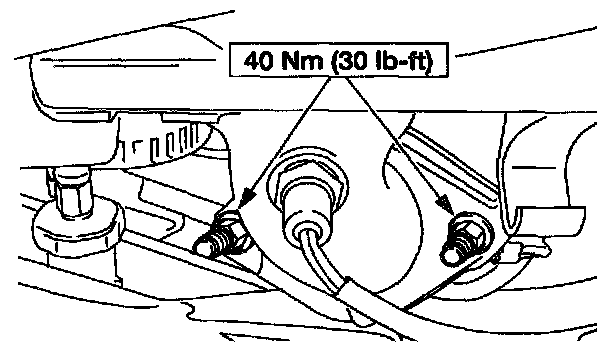

7. Remove the nuts and remove the dual converter Y-pipe.





8. Remove the gaskets and, if necessary, the Catalyst Monitor Sensors (CMS).
^ Discard the gaskets.

9. To install, reverse the removal procedure.
