Rear Crankshaft Main Bearing Seal: Service and Repair

Crankshaft Rear Seal

Special Tools:

Special Tool(s)

Removal
1. Remove the flexplate.

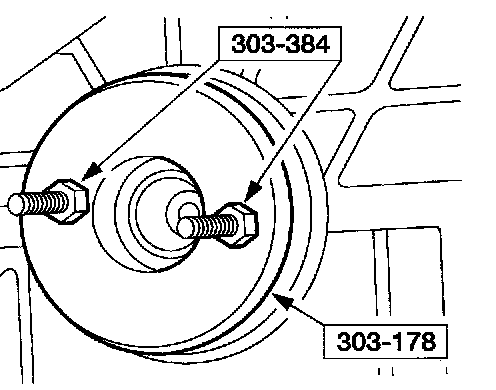

2. Using the special tools, remove the crankshaft rear oil seal and discard.

Installation

1. NOTE: Clean all sealing surfaces with metal surface cleaner.

NOTE: Lubricate the crankshaft rear oil seal lips with clean engine oil.

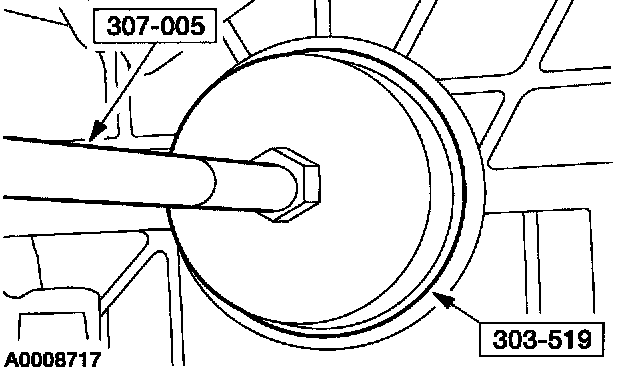

Using the special tools, install the crankshaft rear oil seal.
2. Install the flexplate.
