Lower Intake Manifold
Lower Intake ManifoldRemoval
1. Remove the upper intake manifold.
2. Disconnect the fuel hose spring lock coupling.

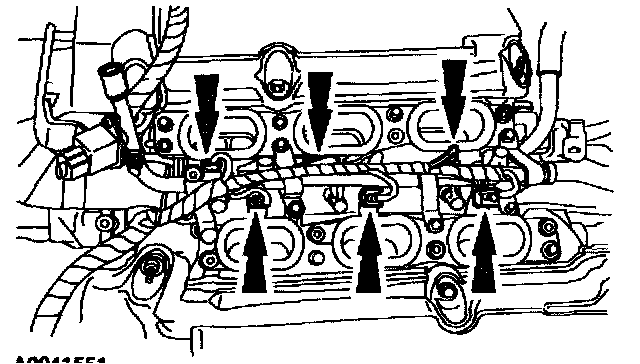

3. Disconnect the fuel injector electrical connectors.
4. Remove the bolts in the sequence shown, and remove the lower intake manifold.
5. Remove and discard the gaskets from the lower intake manifold.
Installation
1. Clean and inspect all mating surfaces.
2. Install new gaskets in the lower intake manifold.
Lower Intake Manifold:

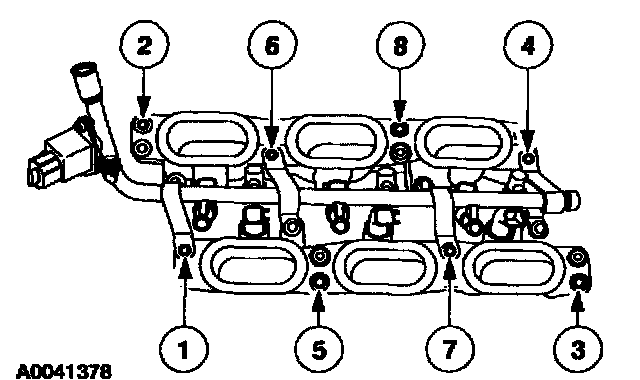

3. Install the lower intake manifold assembly and tighten the bolts in the sequence shown.
4. Connect the fuel injector electrical connectors.
5. Connect the fuel hose spring lock coupling.
6. Install the upper intake manifold.
