Harmonic Balancer - Crankshaft Pulley: Specifications

Crankshaft Damper

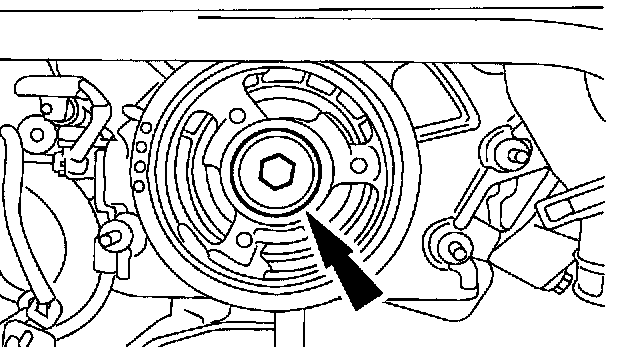

Install the bolt and the washer and tighten in four stages.
Tighten to 120 Nm (89 ft. lbs.).
Loosen 360 degrees.
Tighten to 50 Nm (37 ft. lbs.).
Tighten 90 degrees.

Crankshaft pulley bracket nuts 25 Nm (18 ft. lbs.)
