Crankshaft Vibration Damper

Crankshaft Vibration Damper

Special Tools:

Special Tool(s)

Removal
1. Remove the crankshaft pulley.





2. Remove the crankshaft damper bolt and washer.

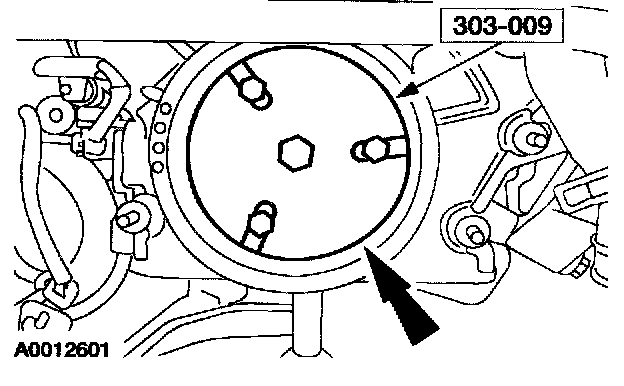

3. Using the special tool, remove the crankshaft damper.

Installation





1. NOTE: Clean the keyway and slot using metal surface cleaner before applying gasket sealer.

NOTE: Seal surfaces must be free of dirt and oil.

Apply silicone gasket and sealant to the end of the keyway slot.





2. NOTE: Lubricate the outside diameter sealing surface of the crankshaft pulley with clean engine oil.

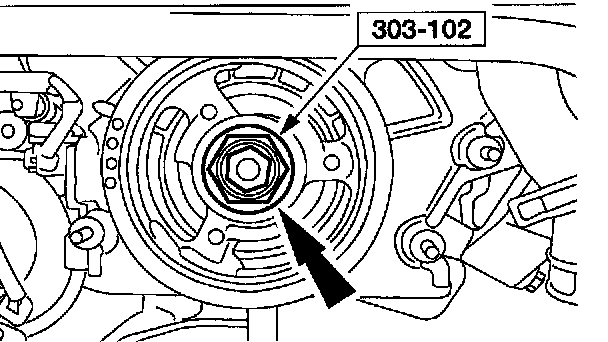

Using the special tool, install the crankshaft damper.

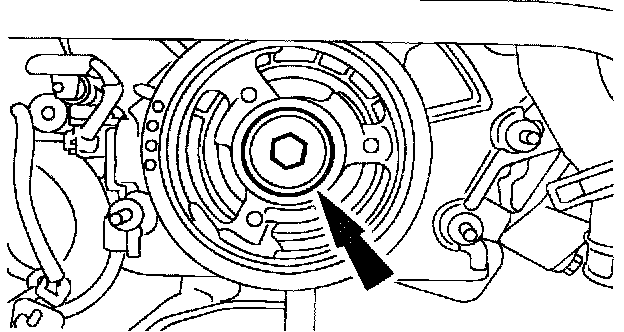

3. Install the bolt and the washer and tighten in four stages.
- Stage 1: Tighten to 120 Nm (89 ft. lbs.).
- Stage 2: Loosen 360 degrees.
- Stage 3: Tighten to 50 Nm (37 ft. lbs.).
- Stage 4: Tighten 90 degrees.

4. Install the crankshaft pulley.
