Crankshaft Pulley

Crankshaft Pulley

Special Tools:

Special Tool(s)

Removal and Installation
1. Raise and support the vehicle.
2. Remove the RH front wheel.

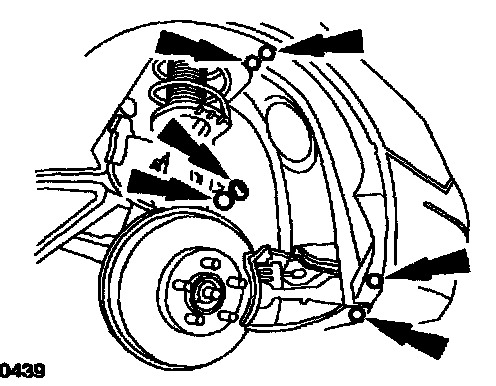

3. Remove the RH front inner fender splash shield.
- Remove the screws and the pin-type retainers.





4. Remove the alternator splash shield.

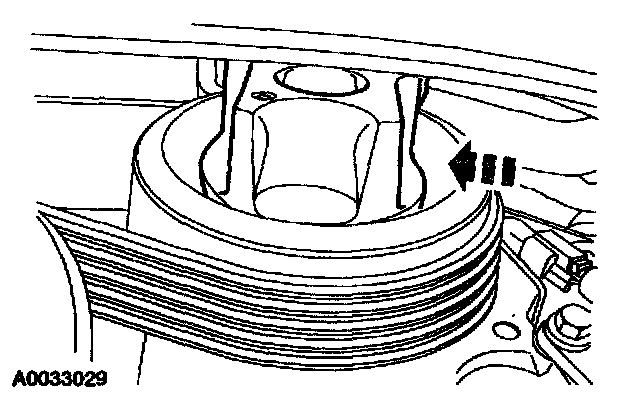

5. NOTE: Use 1 1/4-inch open end wrench to remove the tension.

Rotate the accessory drive belt tensioner clockwise and remove the accessory drive belt from the crankshaft pulley.

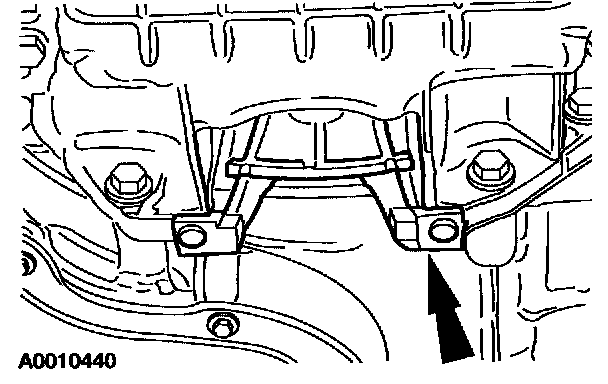

6. Remove the torque converter inspection cover.





7. Install the flywheel holding tool.

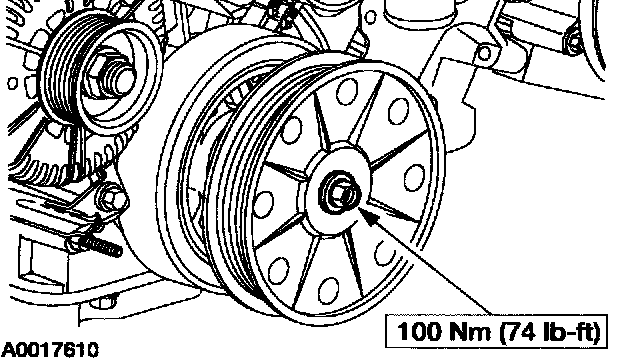

8. NOTE: The pulley has a reverse thread.

Remove the crankshaft pulley.
9. To install, reverse the removal procedure.
