Extension Housing Oil Seal

Extension Housing Oil Seal

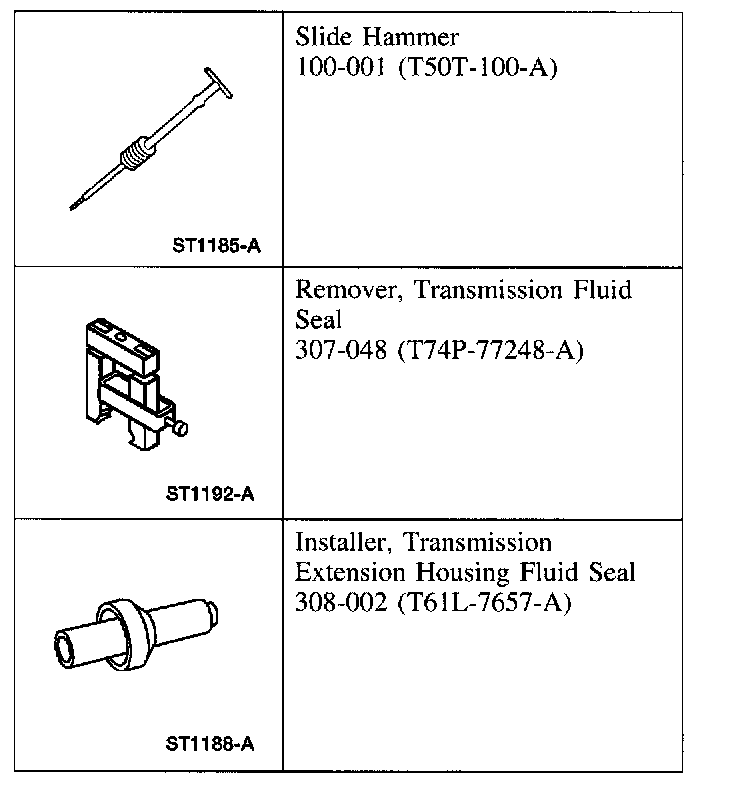

Special Tool(s)

Removal
1. Position the vehicle on a hoist. Place in NEUTRAL.





2. NOTE: The output shaft and driveshaft are a balanced assembly.

Mark the driveshaft flange and the rear pinion flange for correct alignment during assembly.





3. Remove the four driveshaft bolts.





4. Index mark the drive shaft and the extension housing. Separate the driveshaft from the transmission.





5. Using the special tools, remove the extension housing seal.

Installation





1. Using the special tool, install a new extension housing seal.





2. NOTE: The output shaft and the driveshaft are a balanced assembly.

Install the driveshaft.
^ Align the index marks and position the driveshaft on the transmission.
^ Install the driveshaft.





3. NOTE: To maintain driveshaft balance, install the driveshaft yoke and flange in the original position that was marked during removal.

Install the four retaining bolts.
4. Check the level of the transmission fluid, add clean automatic transmission fluid as necessary.
