Accelerator Cable

REMOVAL







1. Remove the bolts and the accelerator splash shield.







2. Remove the spring and disconnect the accelerator and speed control cables.







3. Disconnect the accelerator cable from the bracket.

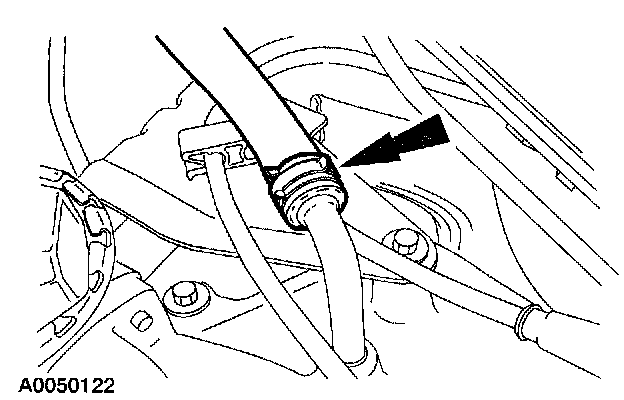

4. Disconnect the vacuum hose.







5. Disconnect the accelerator cable from the cable retainer.







6. Remove the nuts.







7. Disconnect the accelerator cable from the accelerator pedal and shaft.

NOTE: Non-memory pedal shown, memory pedal similar.







8. Remove the accelerator cable retainer.
9. Pull the cable through the dash panel and remove from the vehicle.

INSTALLATION
1. To install, reverse the removal procedure.
