Exhaust Gas Recirculation: Service and Repair

REMOVAL

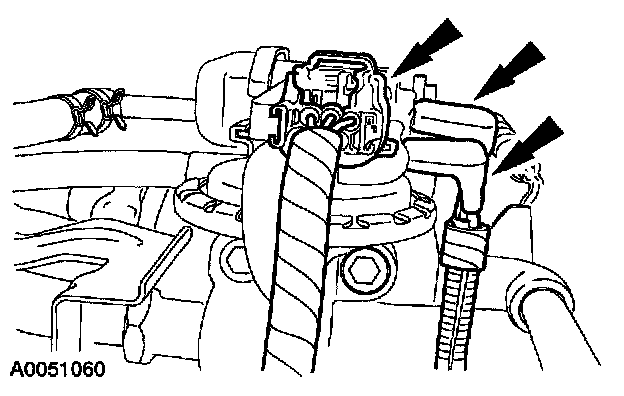

1. Disconnect the electrical connector and the vacuum hoses.

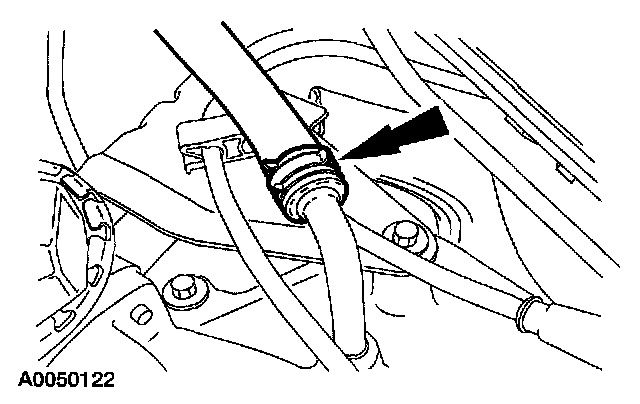

2. Disconnect the vacuum hose.

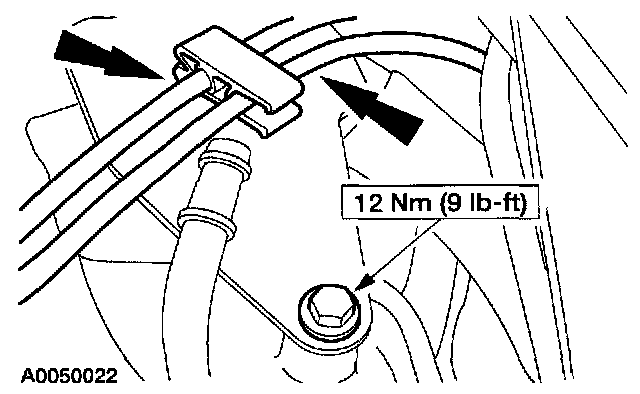

3. Remove the bolt and disconnect the accelerator cables from the retainer.

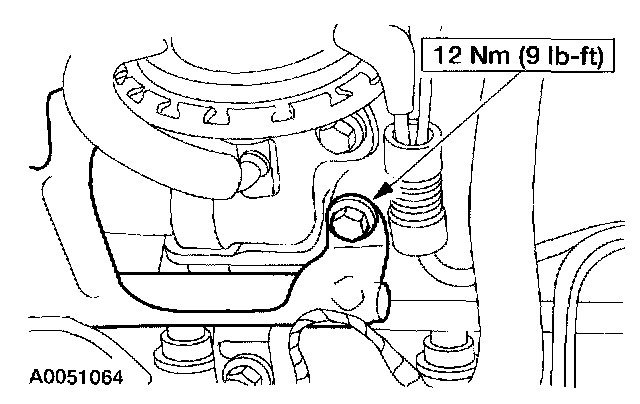

4. Remove the bolt and the accelerator cable bracket.

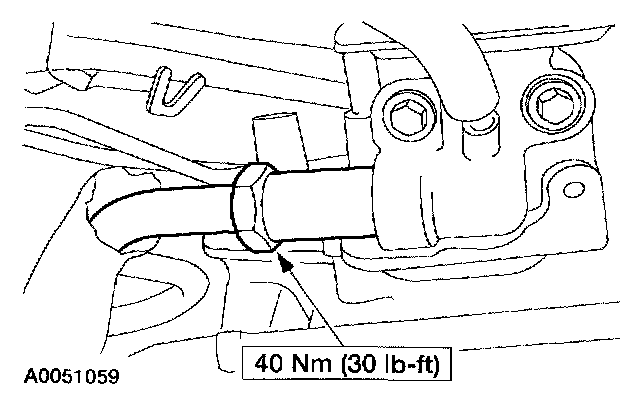

5. Disconnect the Exhaust Gas Recirculation (EGR) tube from the EGR valve.

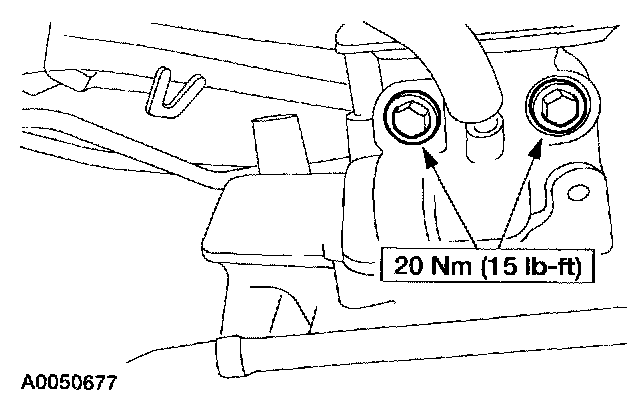

6. Remove the bolts, ESM valve, and the gasket.

INSTALLATION
1. To install, reverse the removal procedure.
^ Install a new EGR system module gasket.
