Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

Oil Level Indicator and Tube

Removal and Installation
1. Remove the oil level dipstick.

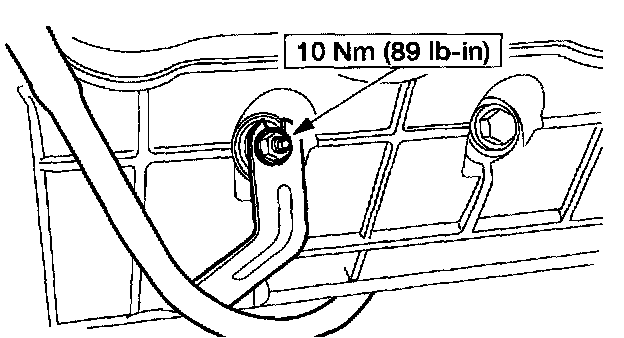

2. Remove the bolt.
3. Remove the LH exhaust manifold.





4. Remove the nut and the oil level indicator tube.
5. To install, reverse the removal procedure.
