Rocker Arm Assembly: Service and Repair

Camshaft Roller Follower

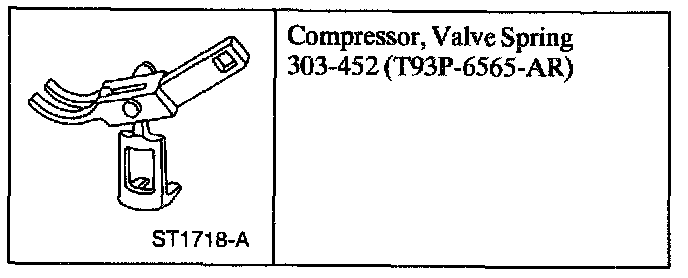

Special Tool(s)

Removal and Installation
1. Remove the left and right valve cover.
2. Position the piston of the cylinder being repaired at the bottom of the stroke and camshaft lobe at the base circle.





3. Using the special tool, compress the intake valve spring and remove the roller follower.





4. Using the special tool, compress the exhaust valve spring and remove the roller follower.
5. Repeat Steps 2, 3 and 4 to remove all the necessary roller followers. Inspect the roller finger followers and camshafts.
6. To install, reverse the removal procedure.
