FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2003
>>
Marauder V8-4.6L DOHC VIN V
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Module Controlled
>>
Test N
Test N
PINPOINT TEST N: DTC B1300, DTC B1310, DTC B1396, DTC B1397 DOOR UNLOCK CIRCUIT FAILURE

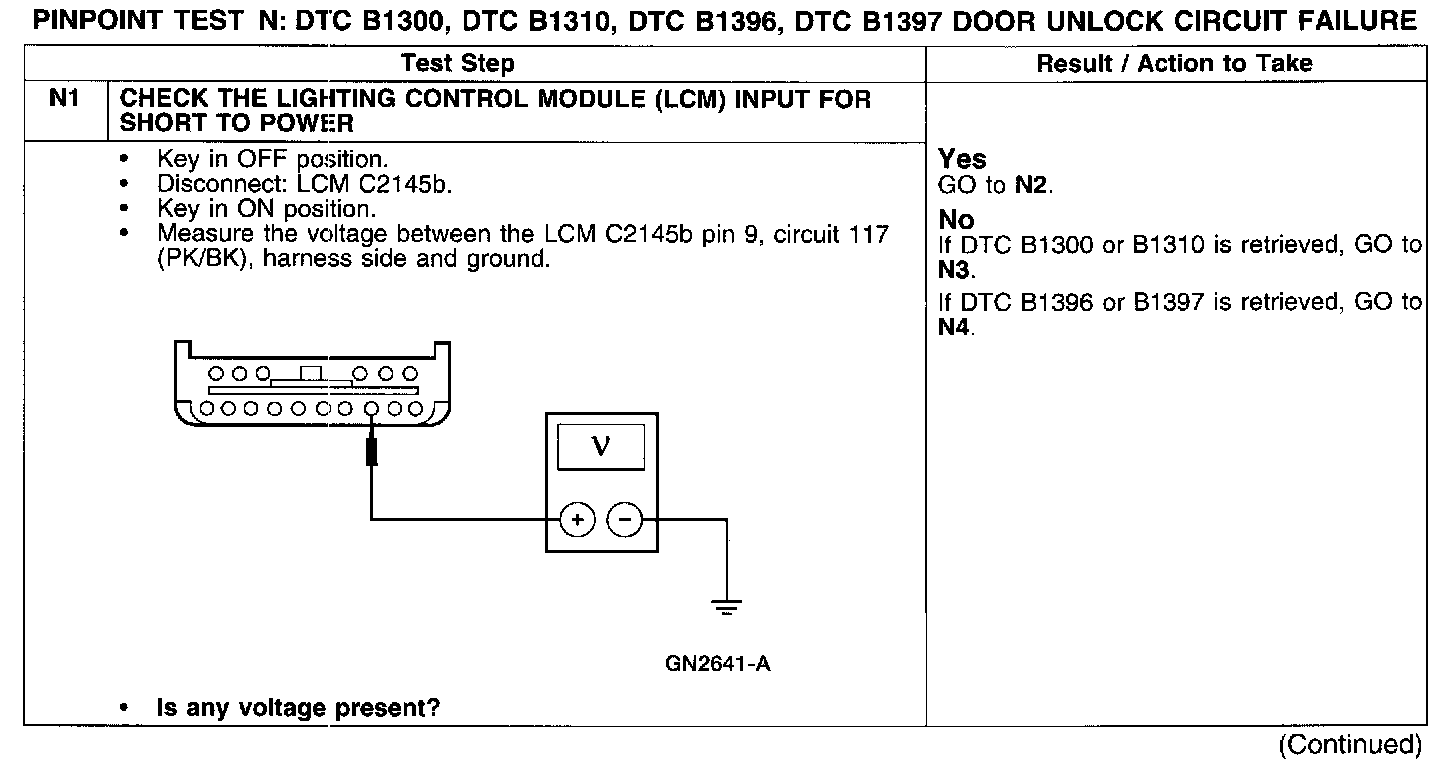

Test N1:

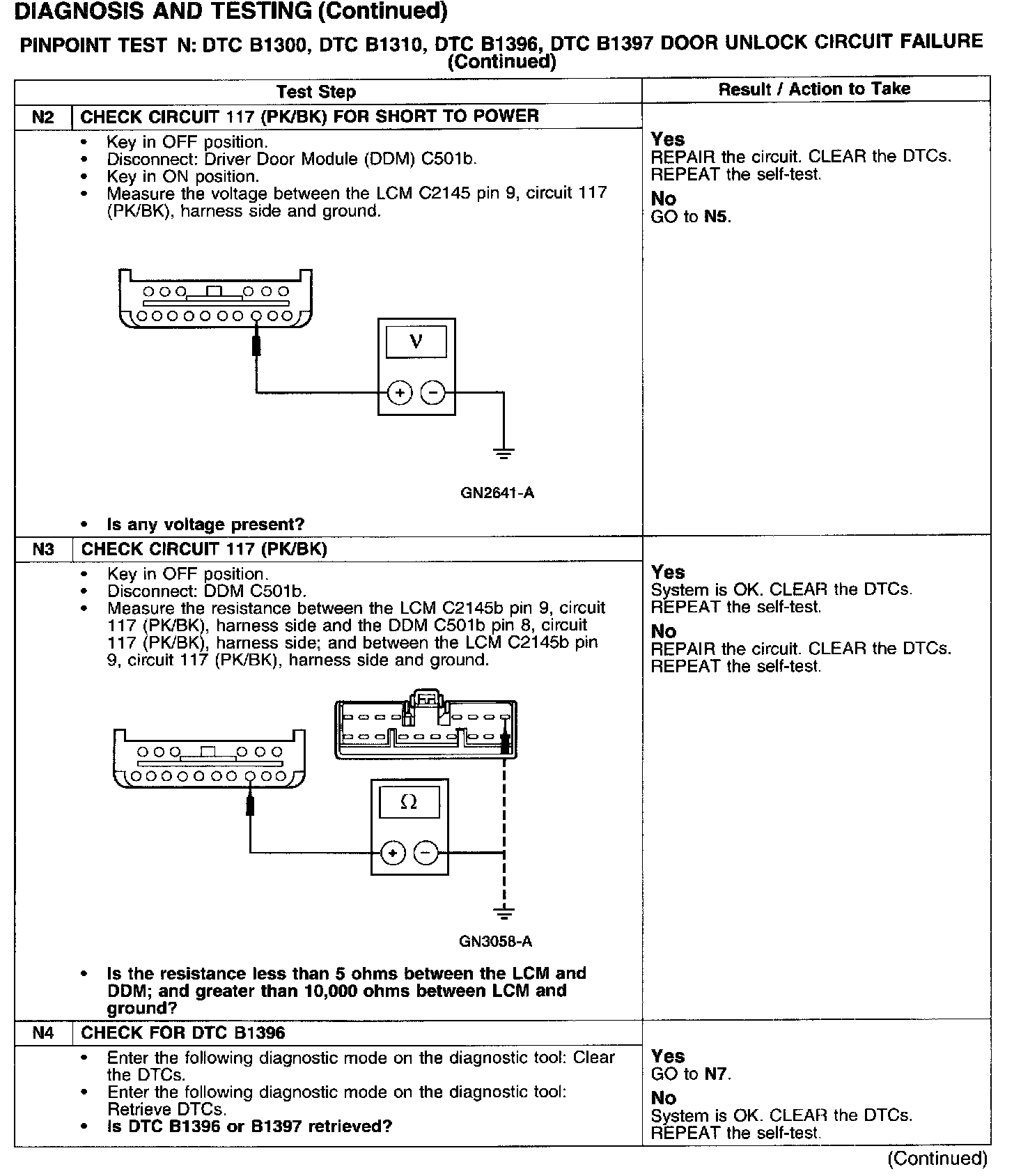

Test N2-N4:

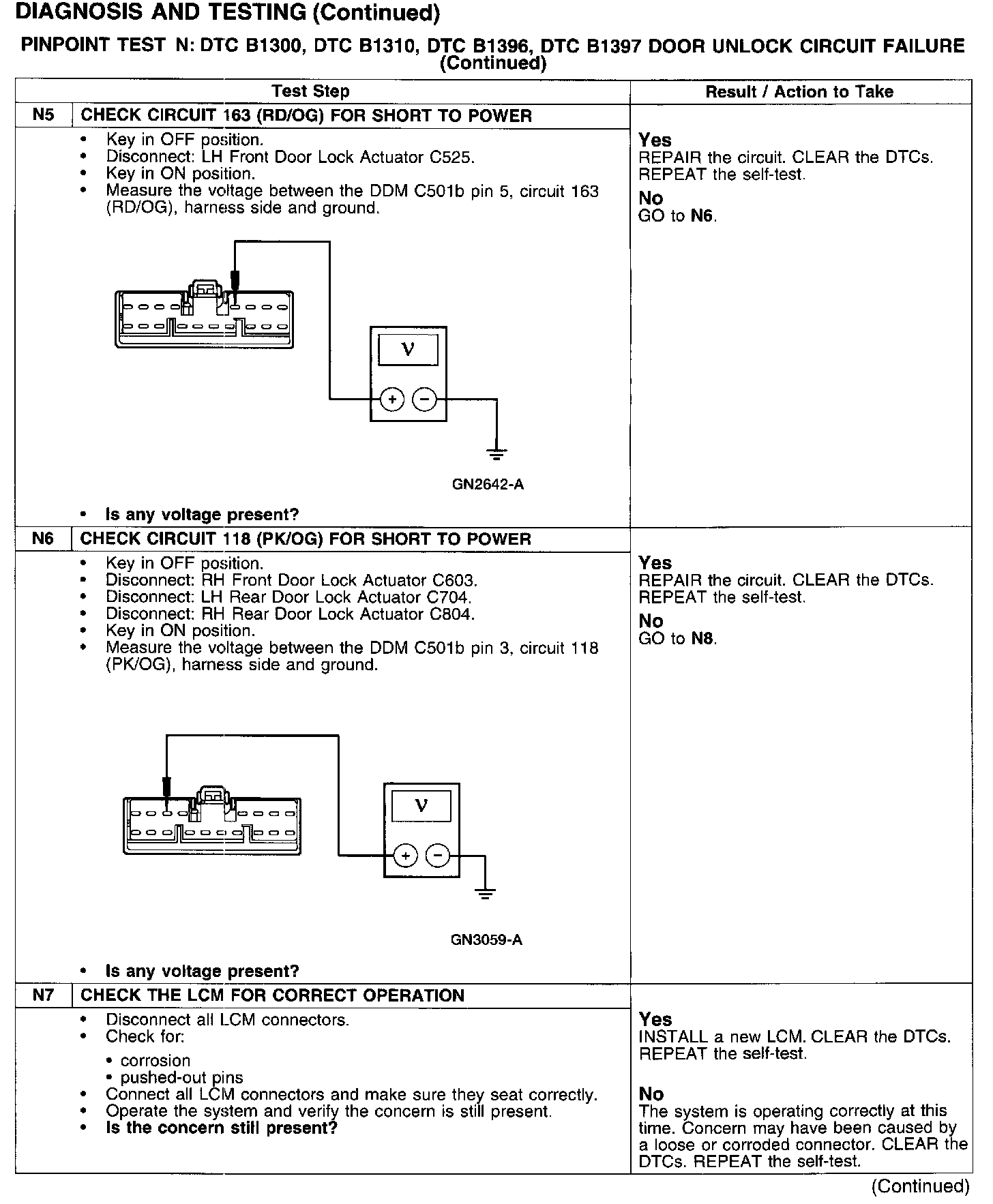

Test N5-N7:

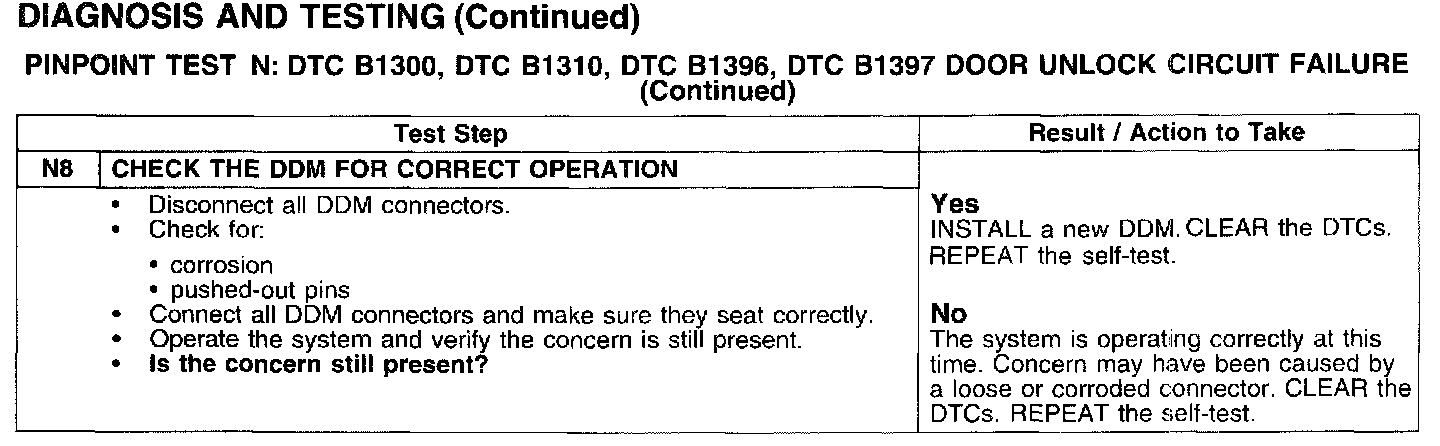

Test N8:
