Wiper Motor: Service and Repair

REMOVAL
1. Remove the mounting arm and pivot shaft assembly.
2. Remove the windshield wiper motor cover.

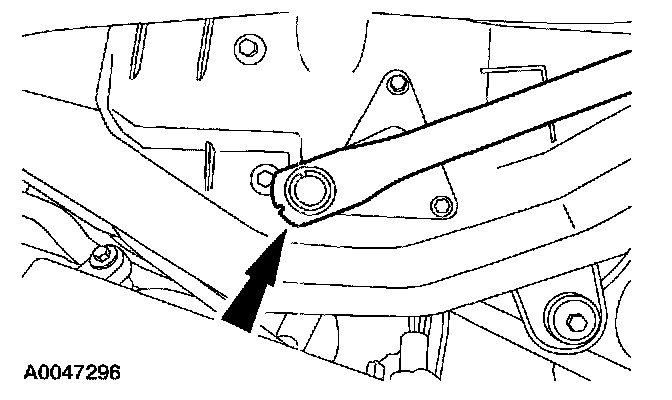

3. Disconnect the wiper motor linkage.

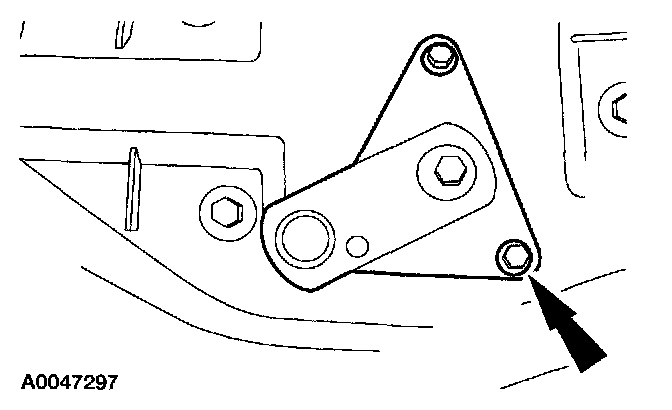

4. Remove the windshield wiper motor.
^ Remove the three bolts.

INSTALLATION
1. To install, reverse the removal procedure.
