Test D
Test D
PINPOINT TEST D: THE INTERMITTENT WIPER SPEED DOES NOT OPERATE CORRECTLY (HIGH/LOW SPEEDS OK)

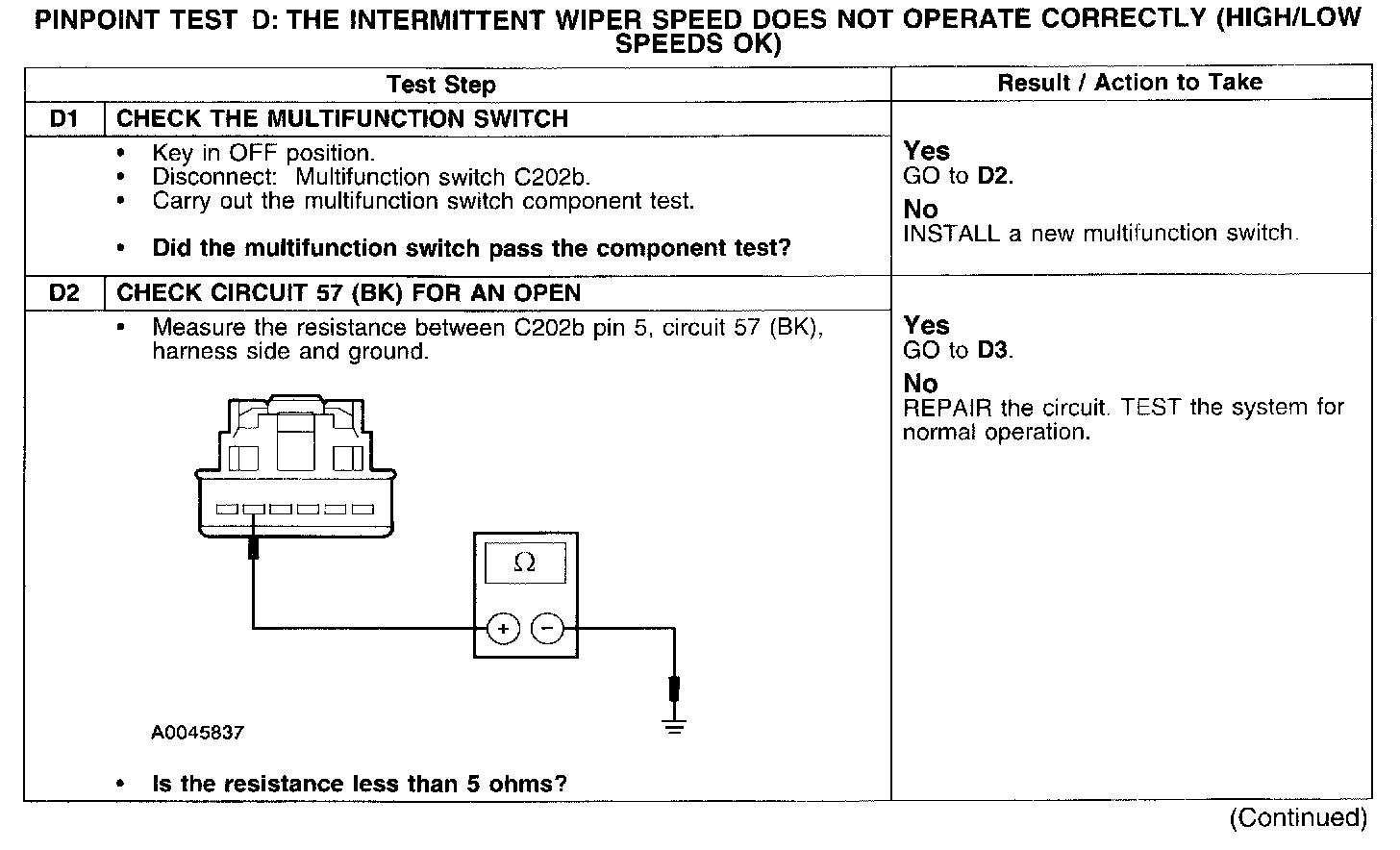

Test D1-D2:

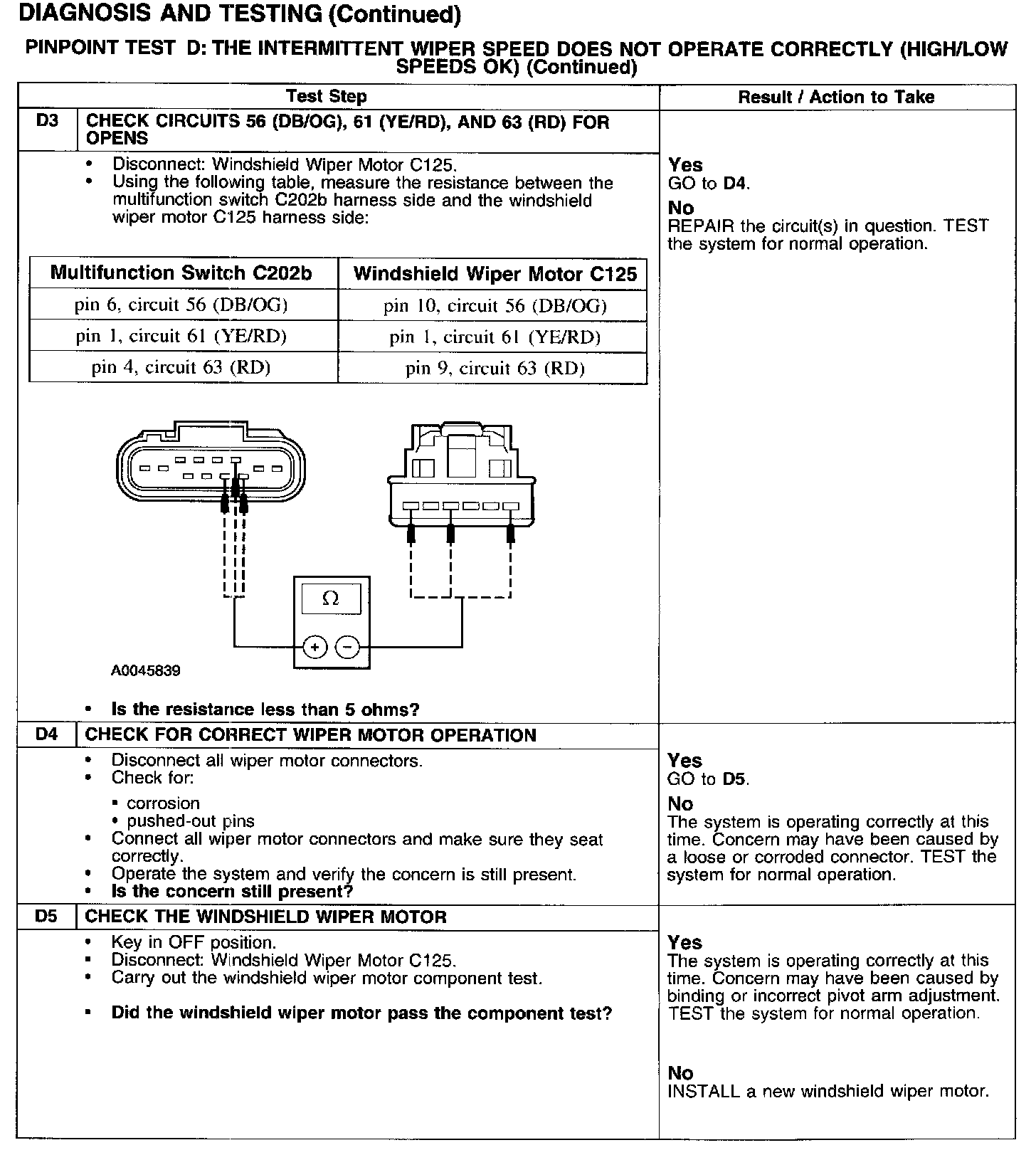

Test D3-D5:
