Front Door Window Regulator: Service and Repair

Heavy Duty Riveter:

SPECIAL TOOL(S)

REMOVAL
1. Remove the front door window glass.

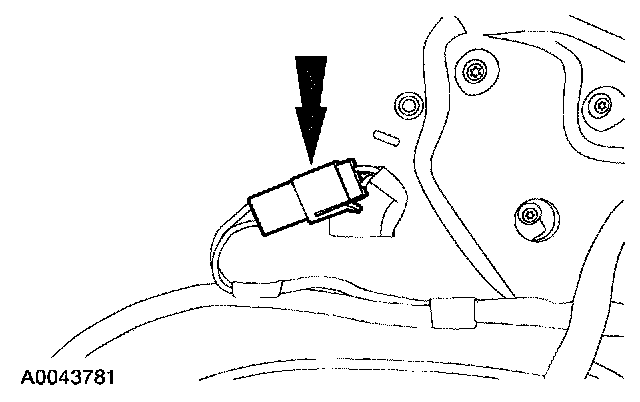

2. Disconnect the electrical connector.







3. Remove the front door window regulator rivets.

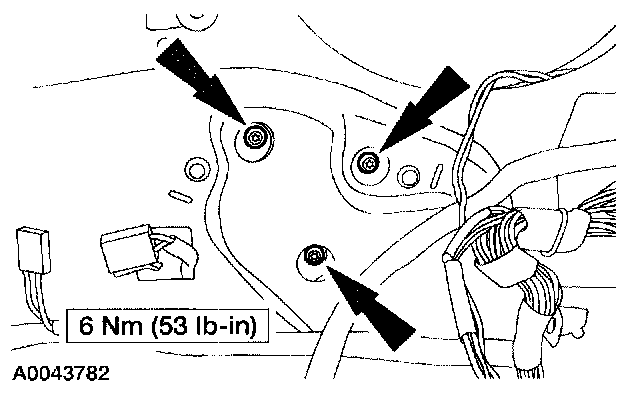

4. Remove the front door window regulator motor screws.







5. Remove the front door window regulator nuts.
6. Remove the front door window regulator.

INSTALLATION
1. To install, reverse the removal procedure.
^ Use the special tool to install the new rivets.
^ Transfer parts as necessary.
