Quarter Window Glass: Service and Repair

REMOVAL
1. Remove the rear door window glass.







2. Remove the rear door window garnish moulding.

CAUTION: If the rear door window garnish moulding becomes kinked, it is no longer usable and a new moulding must be installed.







3. Remove the rear door top glass run and quarter window glass as an assembly.

NOTE:
^ Pull the quarter glass forward to loosen the rear door top glass run assembly.

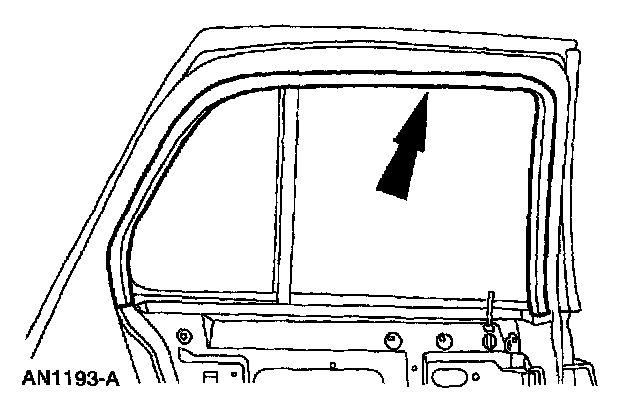

^ Push the quarter window glass on angle as shown to seat fully.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: Make sure to install the quarter window glass into the glass channel.
