Home >> Mercury >> 2003 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Windows and Glass >> Windows >> Testing and Inspection >> Pinpoint Tests >> Test C

Test C

PINPOINT TEST C: A SINGLE POWER WINDOW IS INOPERATIVE - PASSENGER FRONT

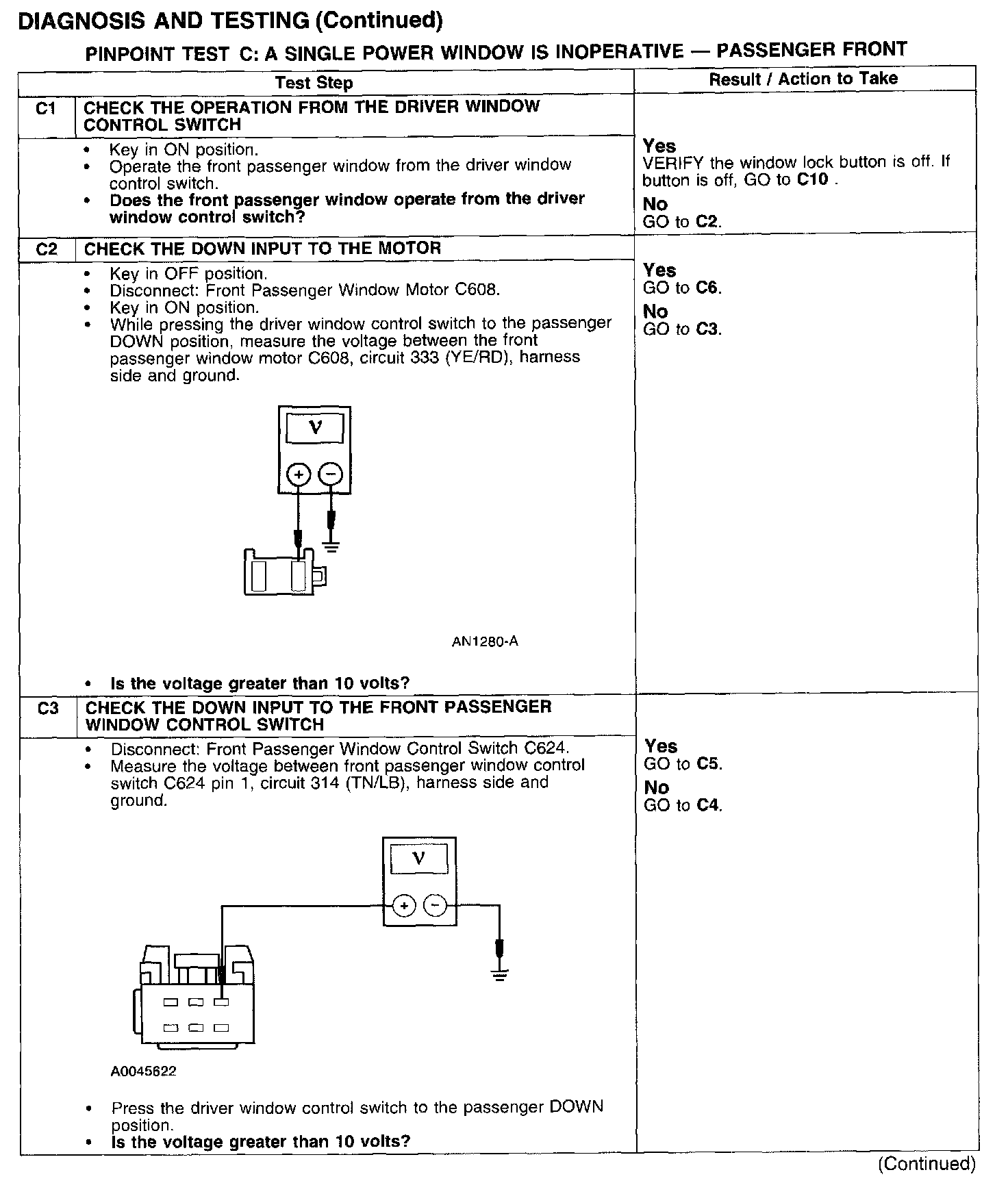

Test C1-C3:

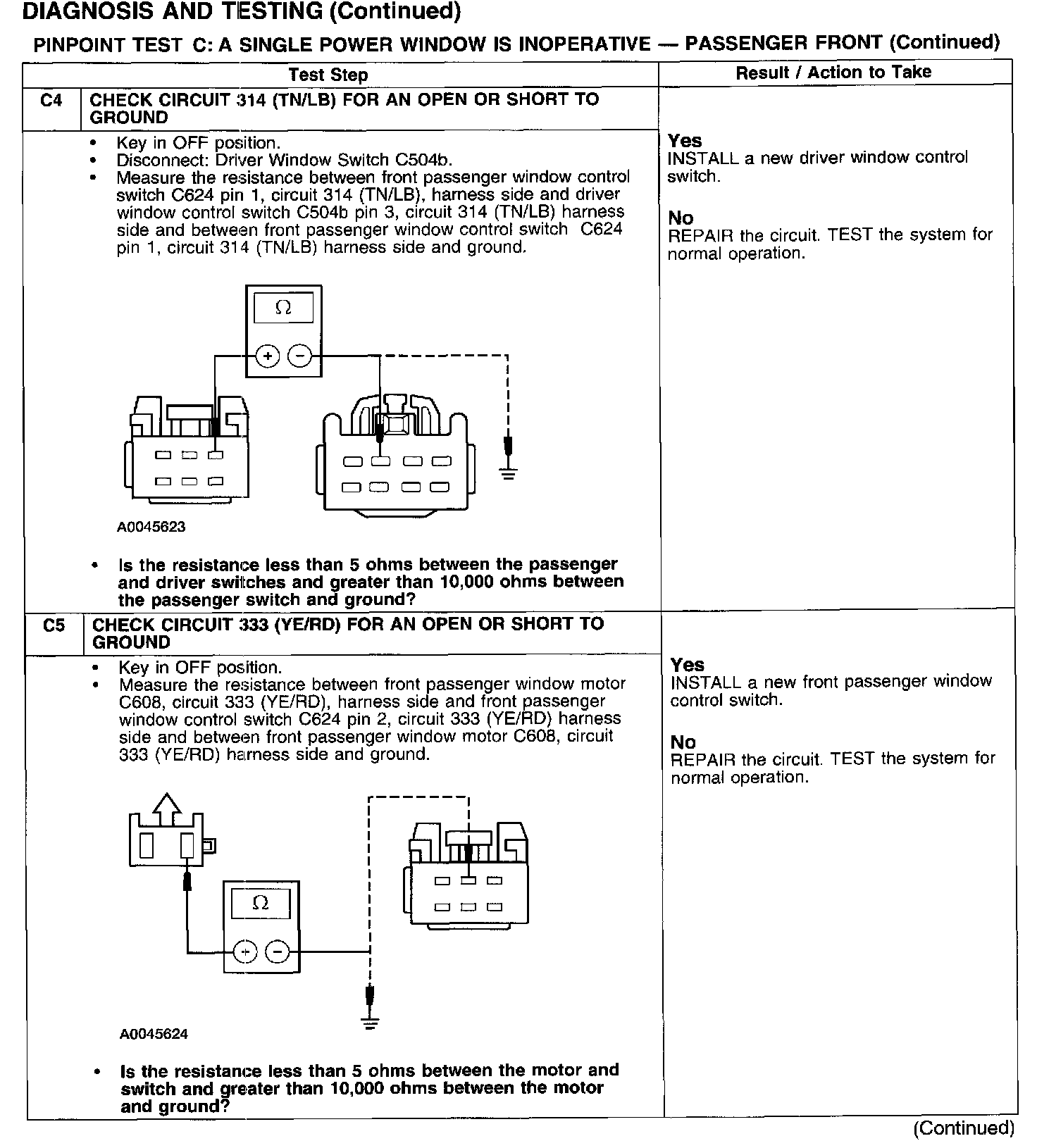

Test C4-C5:

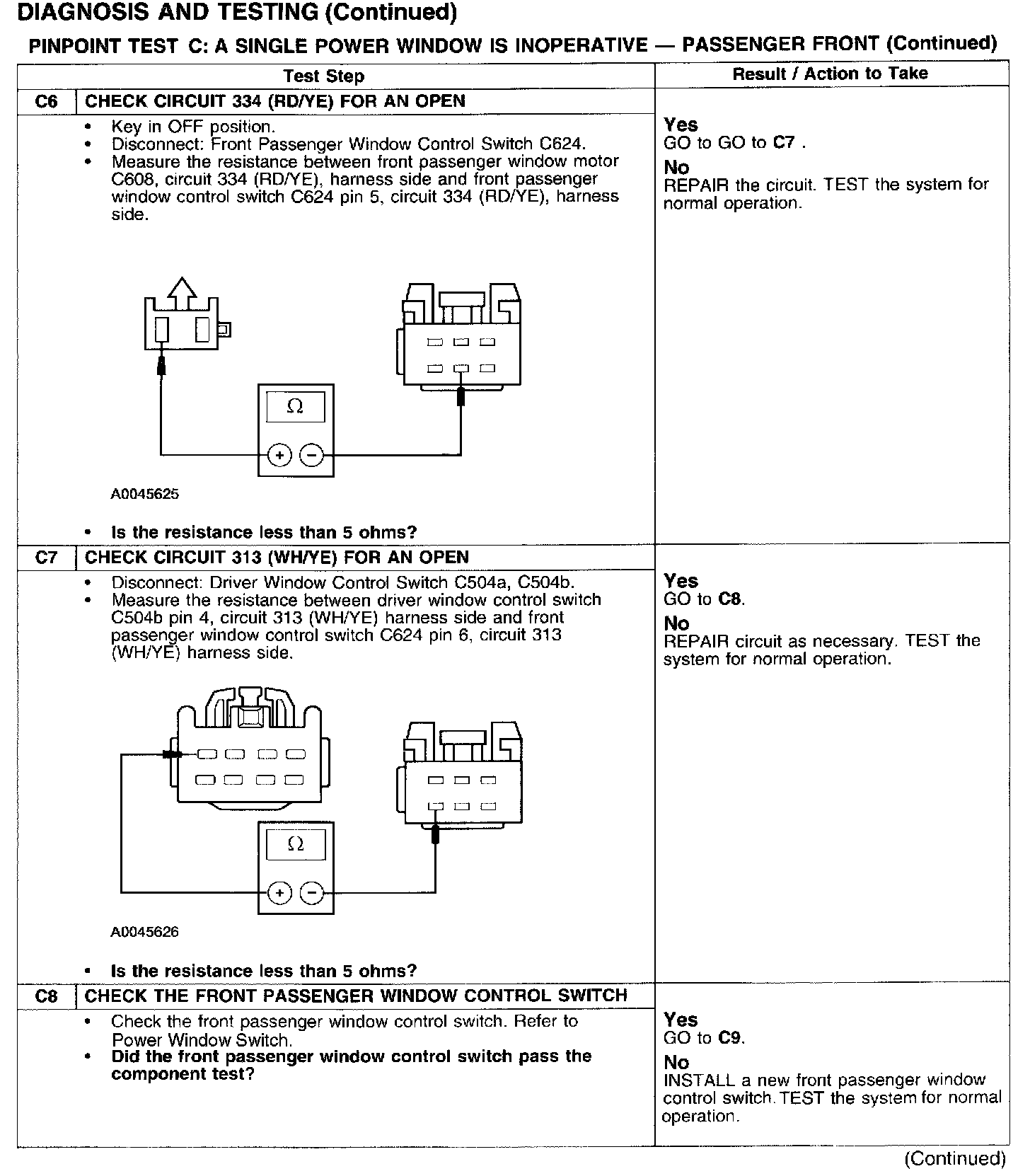

Test C6-C8:

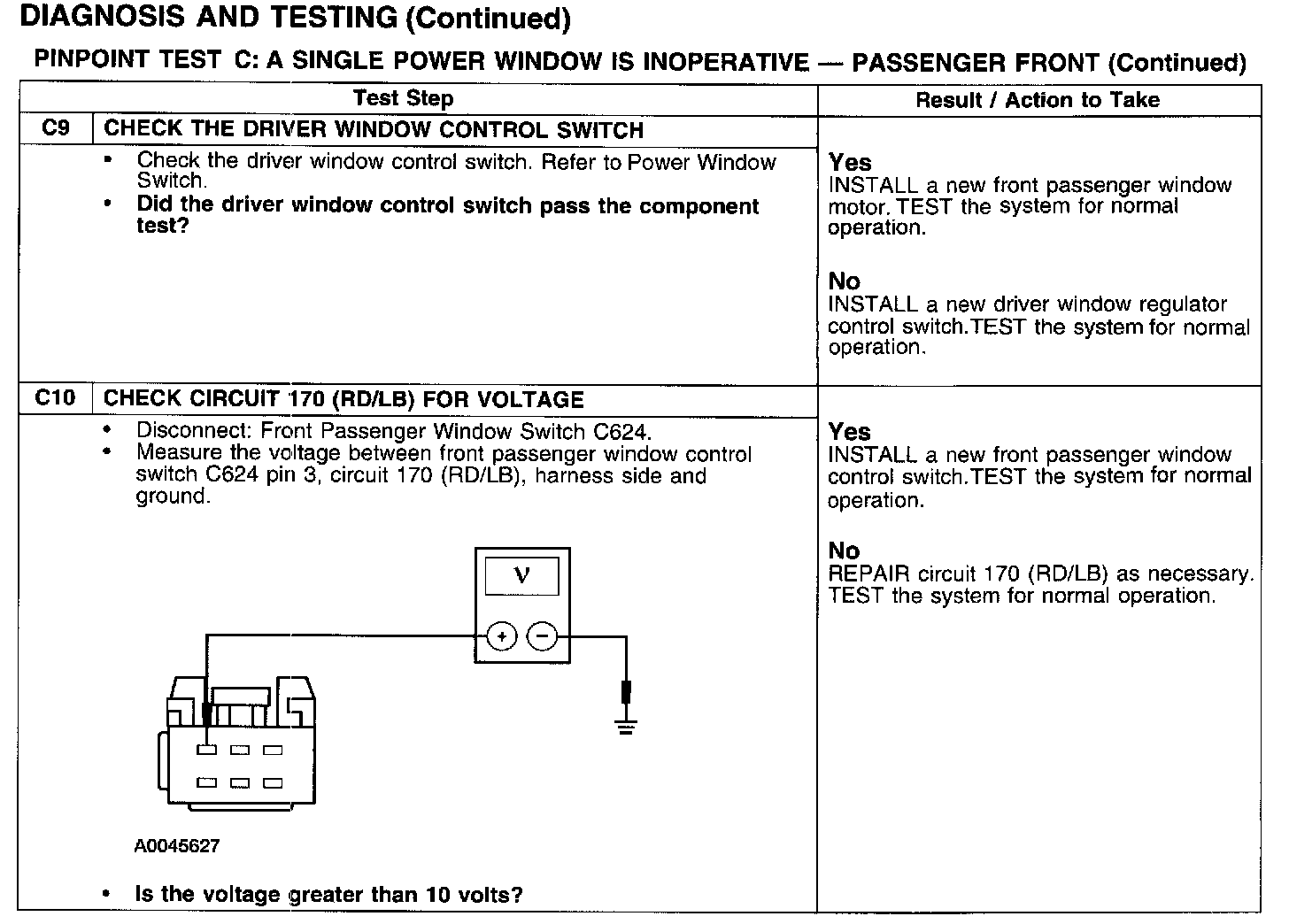

Test C9-C10:
