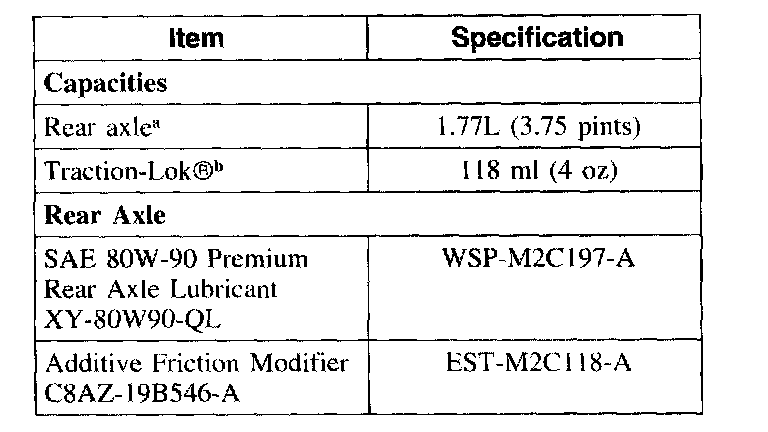

Fluid Type Specifications

General Specifications








a Service refill capacities are determined by filling the axle 6.3 mm (1/4 in.) to 14.3 mm (9/16 in.) below the bottom of the filler hole. The vehicle must be on a level surface.
b Additive Friction Modifier
