Grand Marquis V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - External Controls - Column Shift
>>
Test E: Trans. Control Indicator Lamp (TCIL) Is Illuminated Continuously
Test E: Trans. Control Indicator Lamp (TCIL) Is Illuminated Continuously

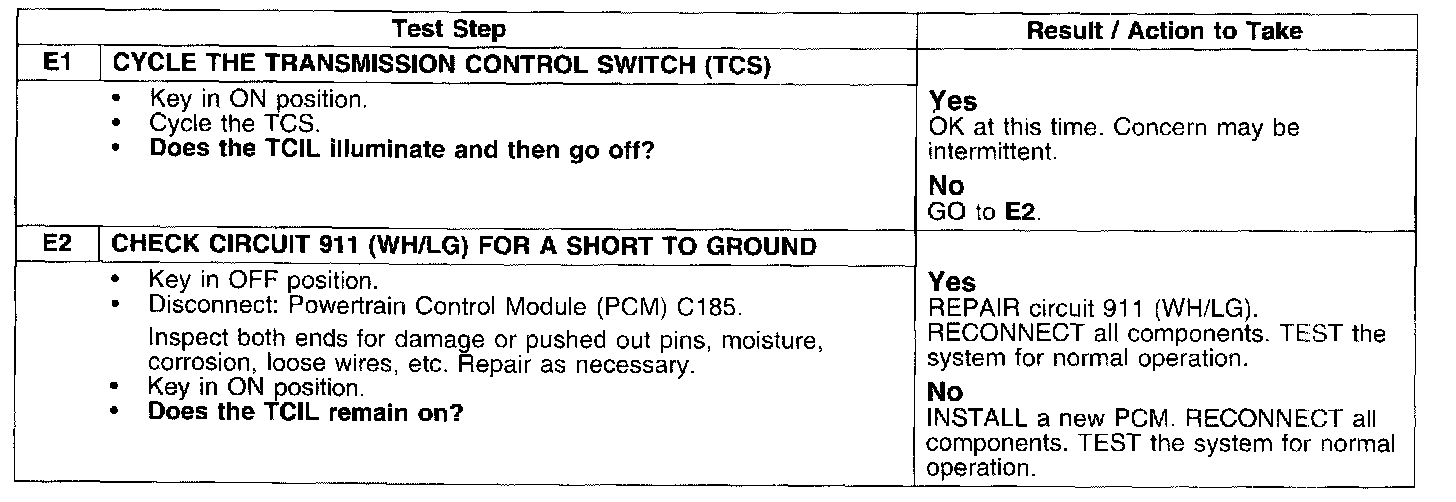

PINPOINT TEST E: THE TRANSMISSION CONTROL INDICATOR LAMP (TCIL) IS ILLUMINATED CONTINUOUSLY
Test E1-E2:
