Test D: Transmission Control Switch (TCS) Doesn't Operate Correctly

PINPOINT TEST D: THE TRANSMISSION CONTROL SWITCH (TCS) DOES NOT OPERATE CORRECTLY

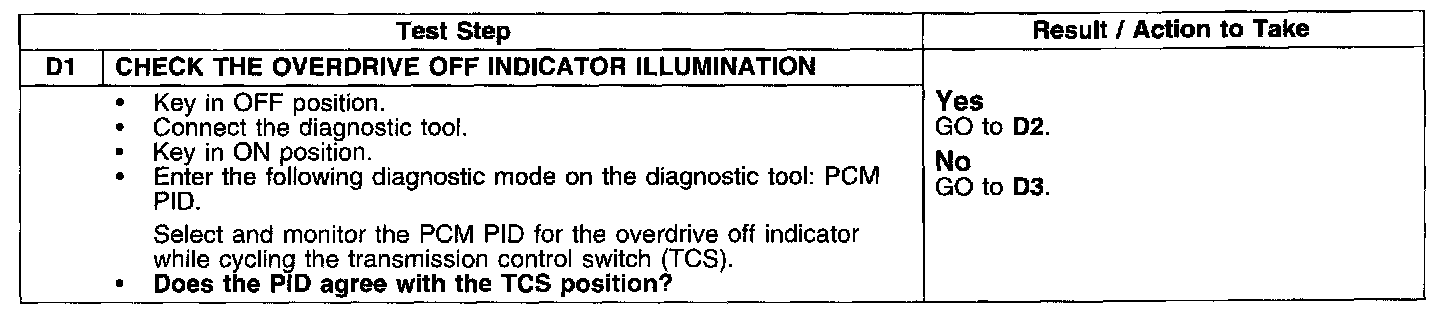

Test D1 Continued:

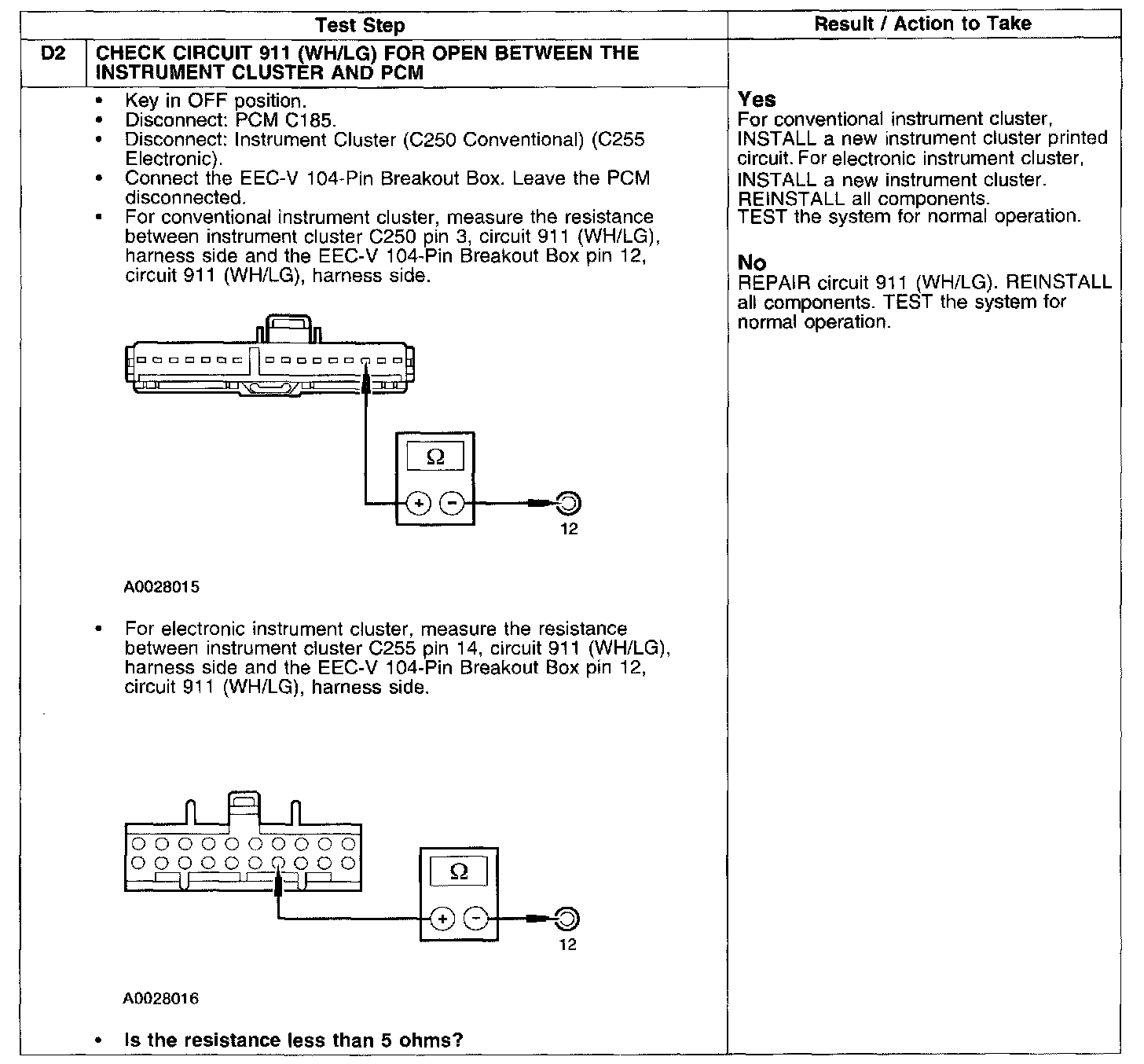

Test D2 Continued:

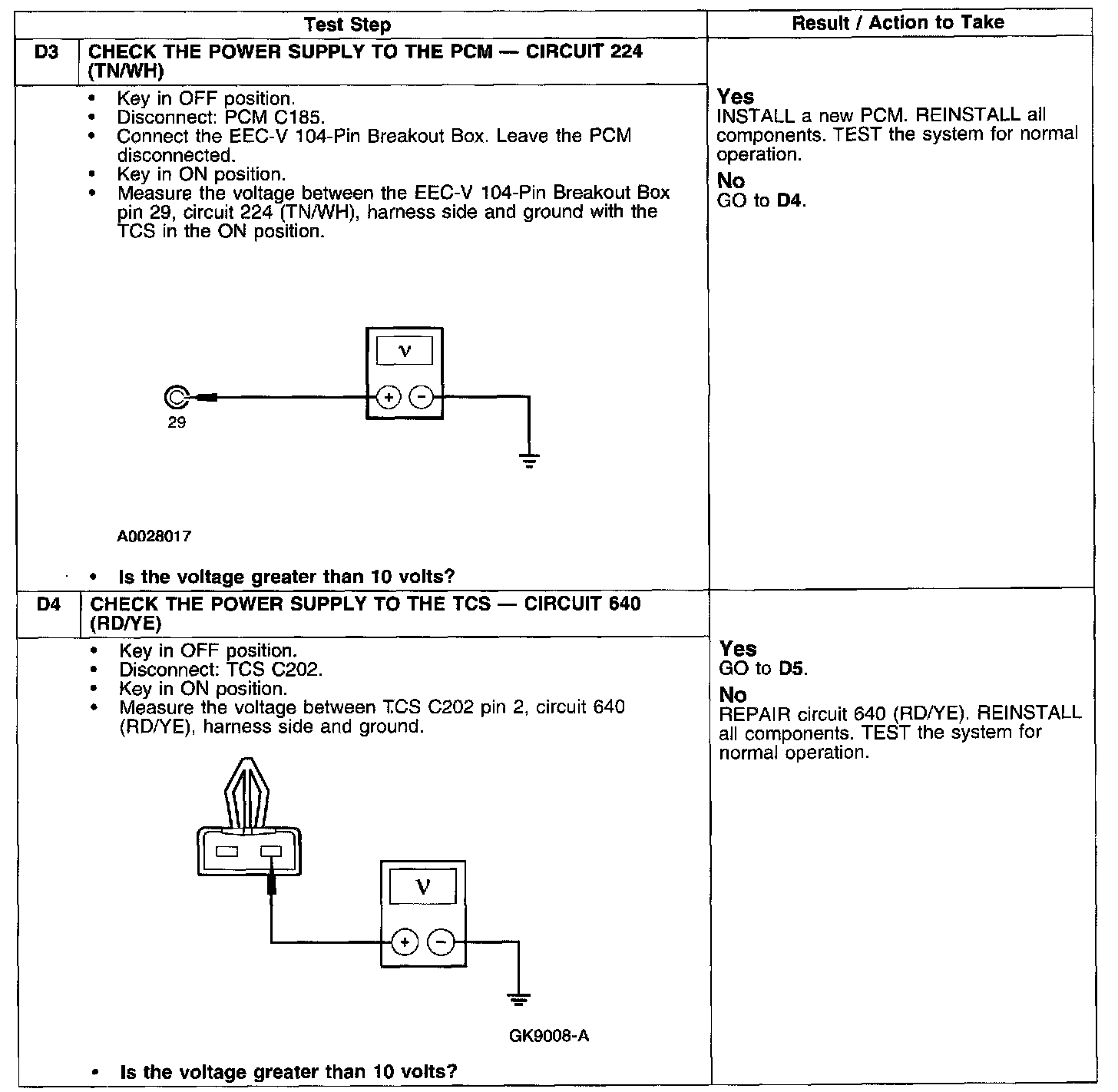

Test D3-D4:

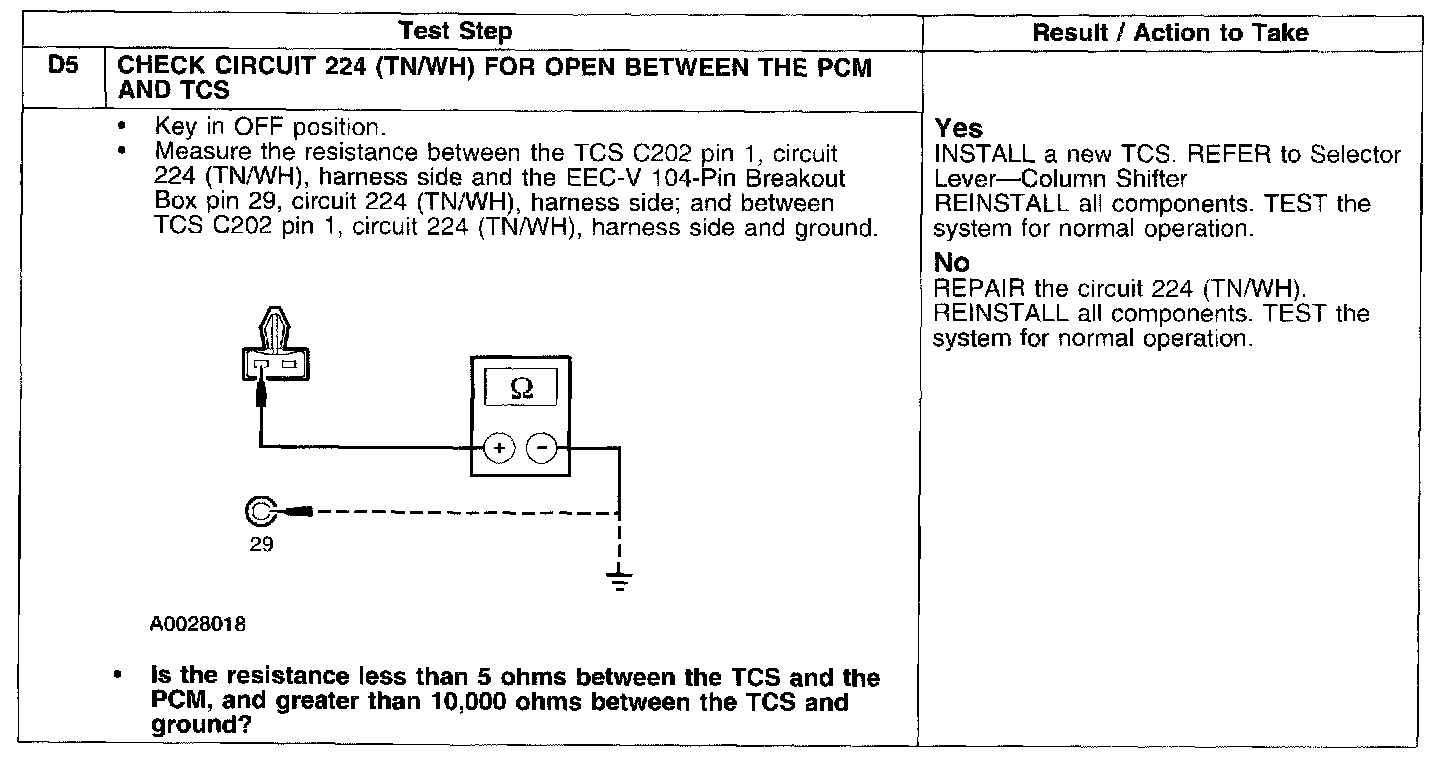

Test D5:
