Pinpoint Test - External Controls - Floor Shift
>>
Test G: The Shift Control Is Out of Correct Gear Relationship
Test G: The Shift Control Is Out of Correct Gear Relationship

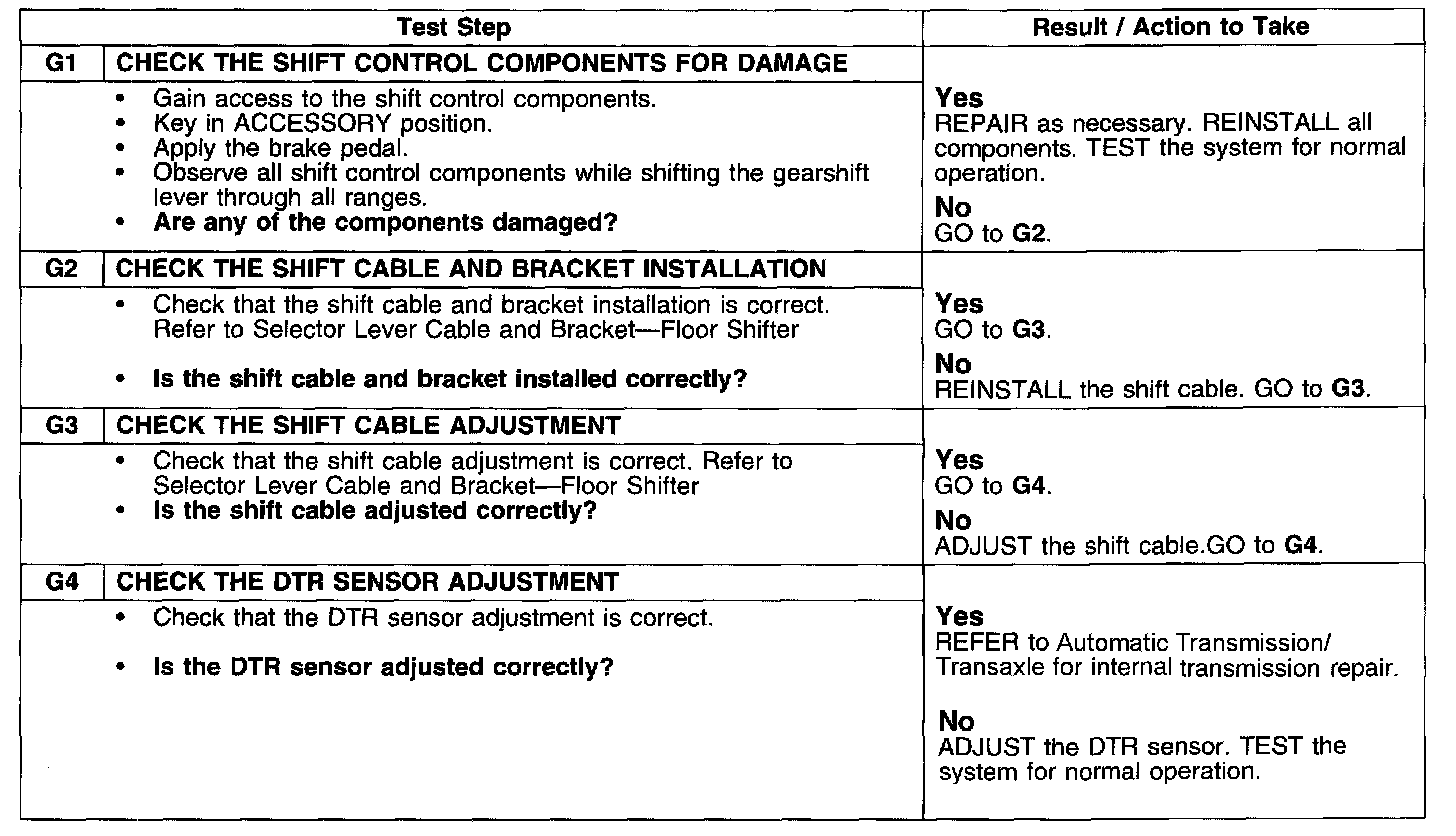

PINPOINT TEST G: THE SHIFT CONTROL IS OUT OF CORRECT GEAR RELATIONSHIP - FLOOR SHIFT
Test G1-G4:
