Pinpoint Test - External Controls - Floor Shift
>>
Test F: The Shift Interlock System Doesn't Release/Lock Correctly
Test F: The Shift Interlock System Doesn't Release/Lock Correctly
PINPOINT TEST F: THE SHIFT INTERLOCK SYSTEM DOES NOT RELEASE/LOCK CORRECTLY - FLOOR SHIFT

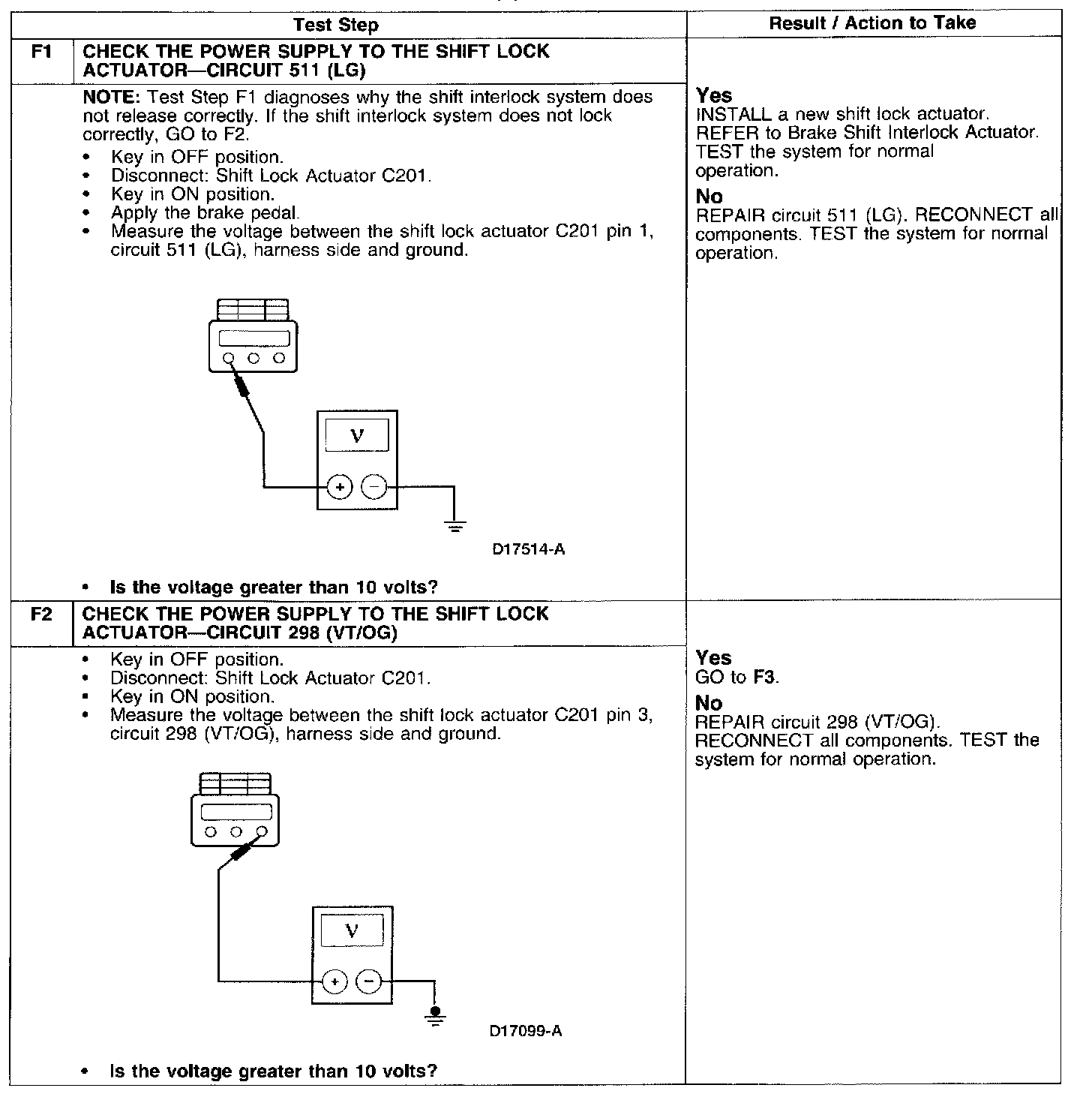

Test F1-F2:
Test F3:
