Initial Inspection - External Controls

Inspection and Verification

1. Verify the customer concern by operating the transmission external control.

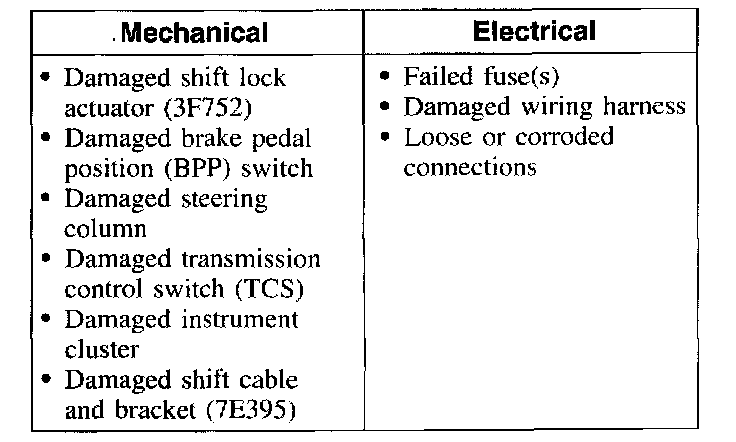

2. Visually inspect for obvious signs of mechanical and electrical damage, incorrect component installation, and component misalignment. Verify that all circuit-related systems are functioning correctly.
3. If the fault is not visually evident, proceed to the Symptom Chart.

Column Shift / Symptom Charts. Diagnosis By Symptom - External Controls - Column Shift

Floor Shift / Symptom Charts. Diagnosis By Symptom - External Controls - Floor Shift
