Shift Speeds

Shift Speed Chart

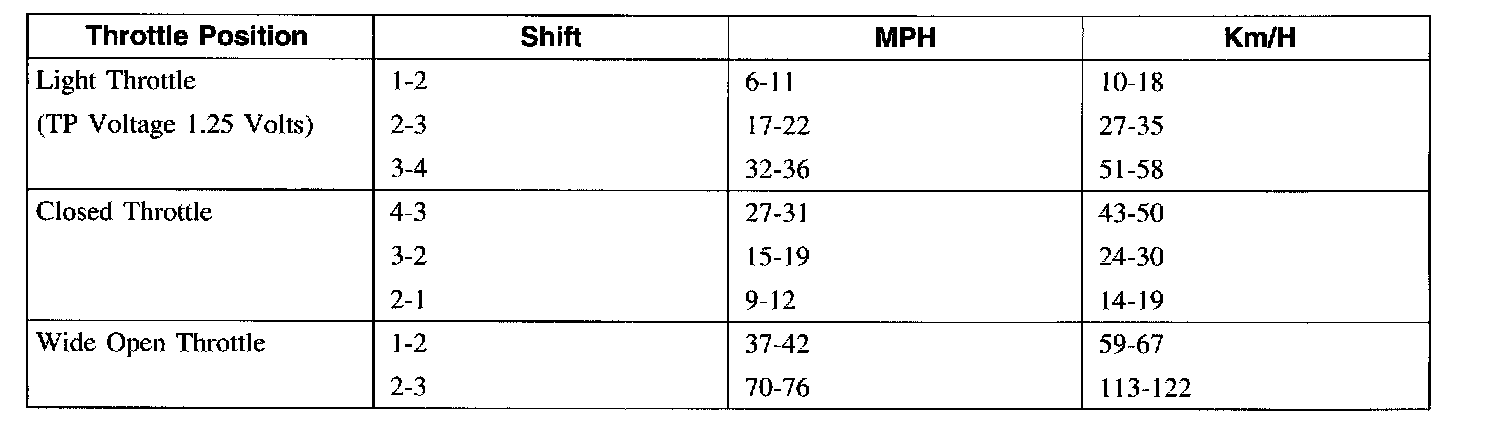

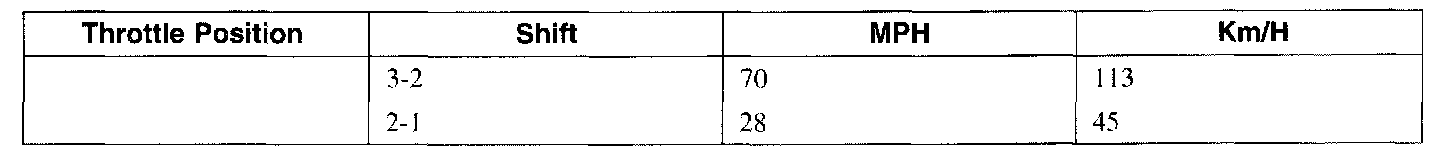

4R70W Shift Speeds Axle Ratio 2.73:1

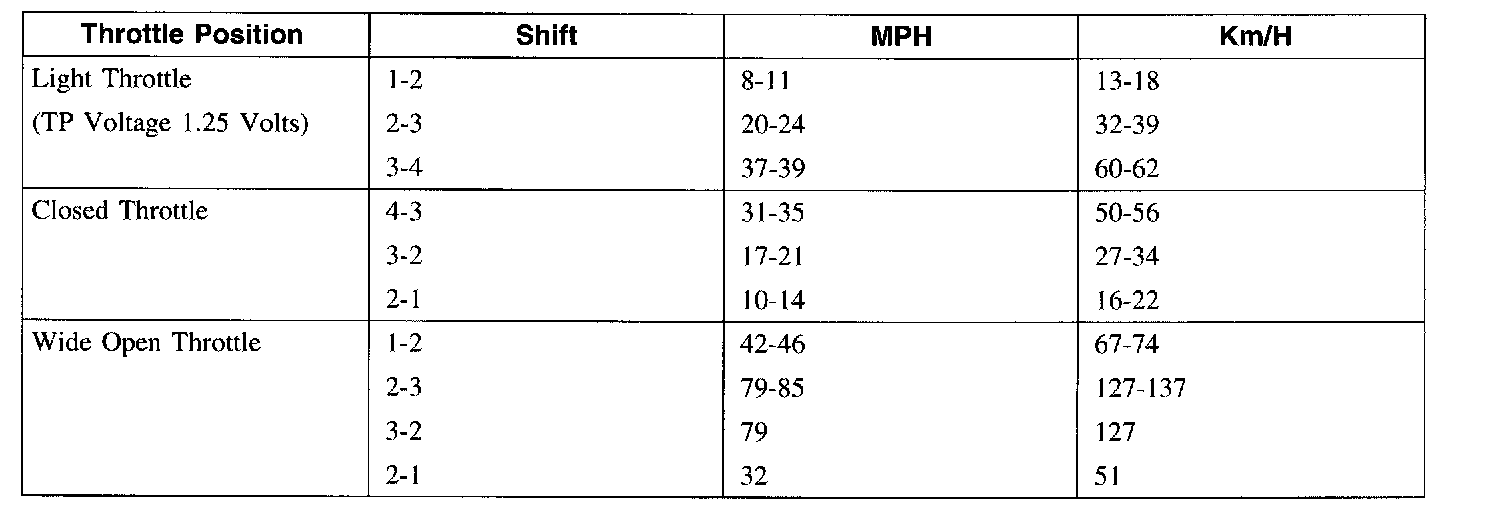

4R70W Shift Speeds Axle Ratio 3.08:1

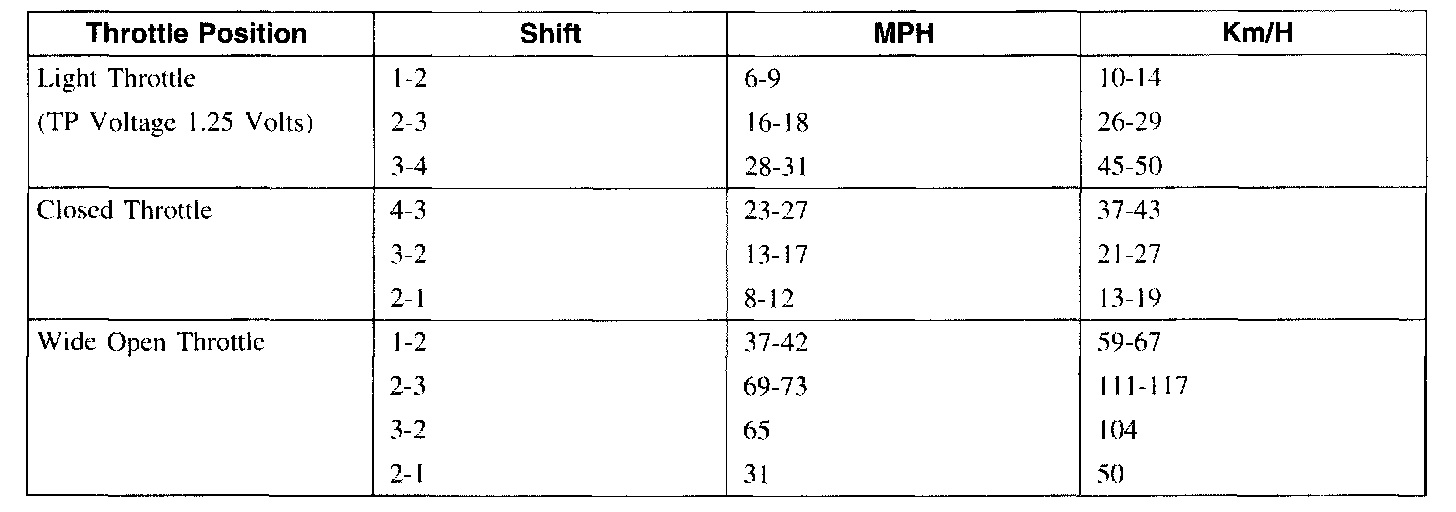

4R70W Shift Speeds Axle Ratio 3.55:1 (Police Package)
