Transmission Filler Tube

Transmission Filler Tube

Removal and Installation

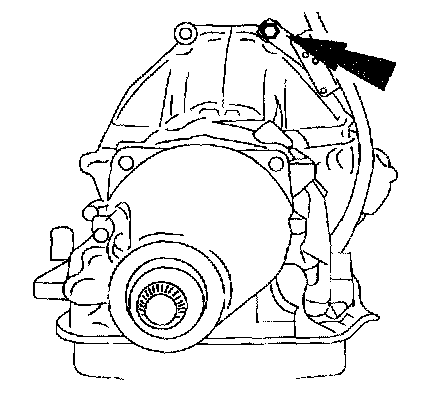

1. Remove the bolt.

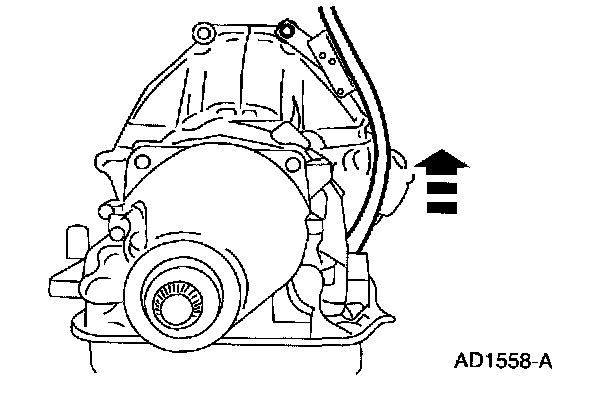

2. Remove the fluid filler tube.

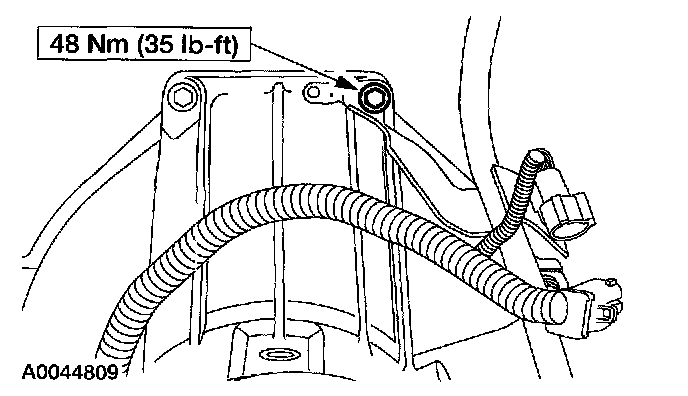

3. To install, reverse the removal procedure.
