Part 2 of 2

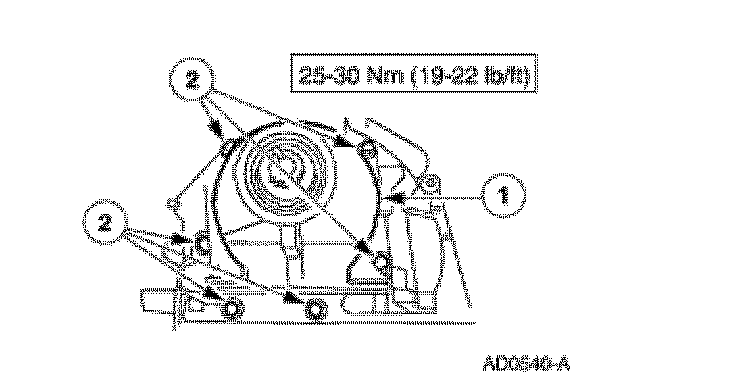

35. Install a new extension housing gasket and the extension housing.

1. Position the extension housing.

2. Install the four bolts and two nuts.

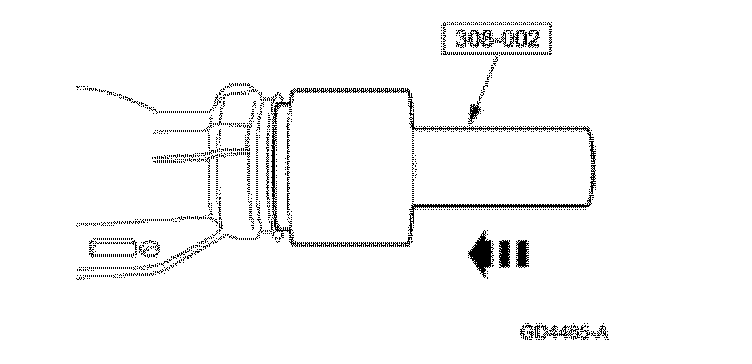

36. Using the special tool, install a new extension housing seal.

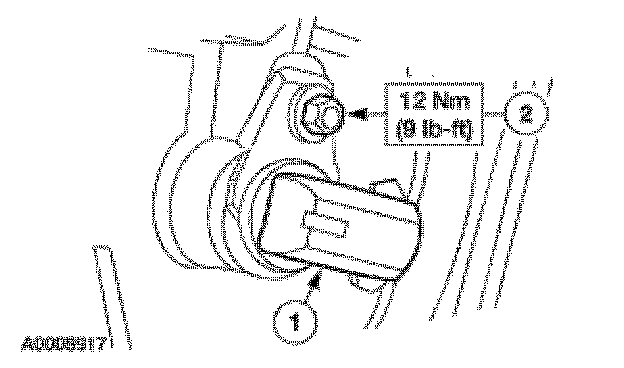

37. Install the output shaft speed (OSS) sensor.

1. Position the 055 sensor.

2. Install the bolt.

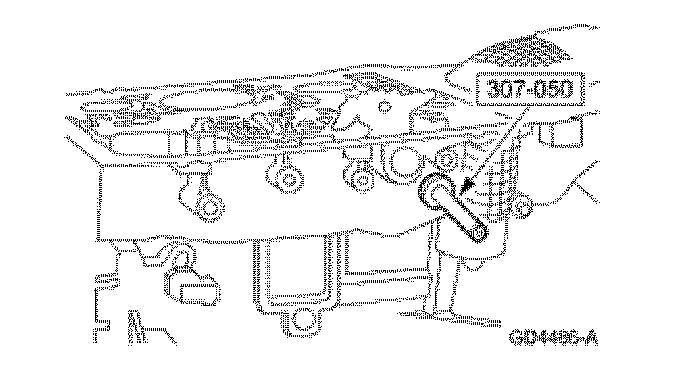

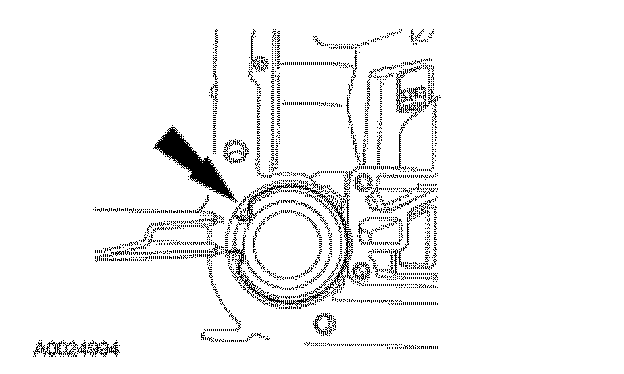

38. Using the special tool, install the manual control lever seal.






39. NOTE: Lubricate the electronic pressure control (EPC) solenoid 0-rings with clean automatic transmission fluid.

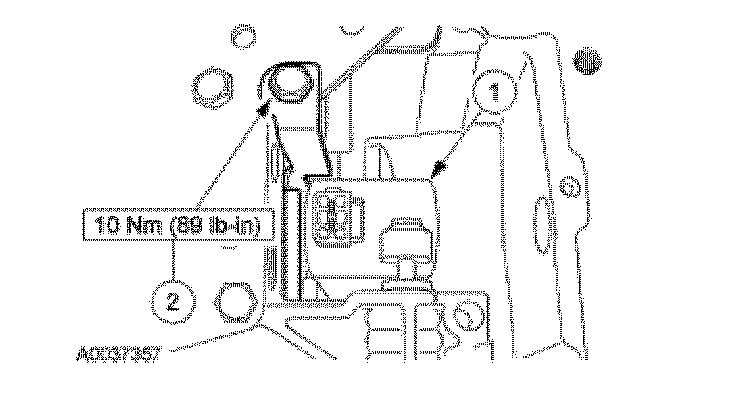

Install the EPC solenoid.

1. Install the EPC solenoid.

2. Install the EPC solenoid bracket and bolt.






40. Install the manual valve detent lever and parking lever actuating rod.






41. Install the manual control lever shaft.

1. Slide the manual control shaft into the case.

2. Install the manual lever shaft inner nut.

3. Install the manual lever shaft retaining pin.






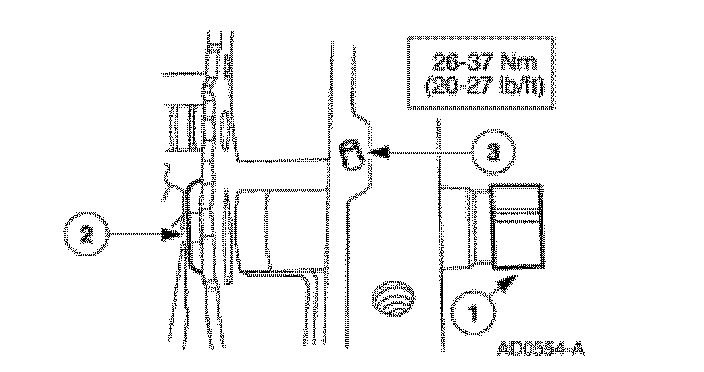

42. Install the 1-2 accumulator piston assembly.

1. Install the 1-2 accumulator upper spring.

2. Install the 1-2 accumulator.

3. Install the 1-2 accumulator lower spring.

4. Install the 1-2 accumulator cover and seal.






43. Install the 1-2 accumulator retaining ring.






44. NOTE: This is not an ordinary installation procedure and does not compensate for band wear. When new piston and rod assembly installation becomes necessary, or when a new reverse band has been installed, the reverse piston and rod length must be adjusted.

NOTE: Lubricate the reverse piston seal to facilitate assembly and prevent damage to the seal.

NOTE: Do not install the reverse servo piston cover and seal at this time. Install the reverse servo piston and rod assembly.

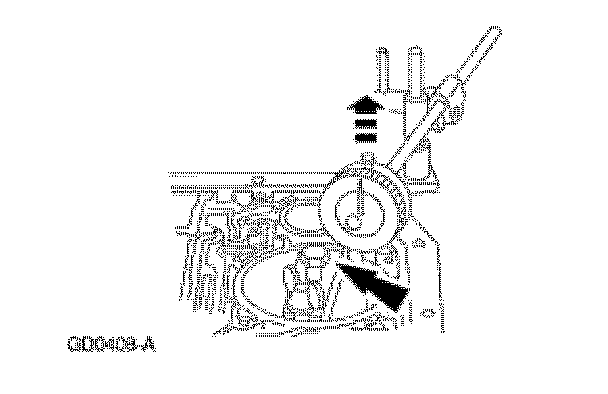

45. Install the special tool. Tighten the bolt.

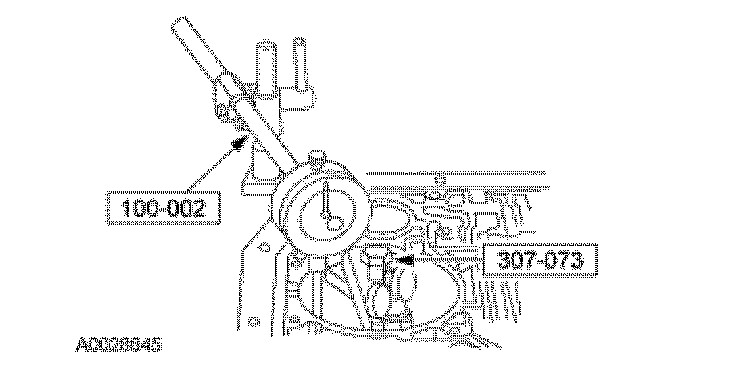

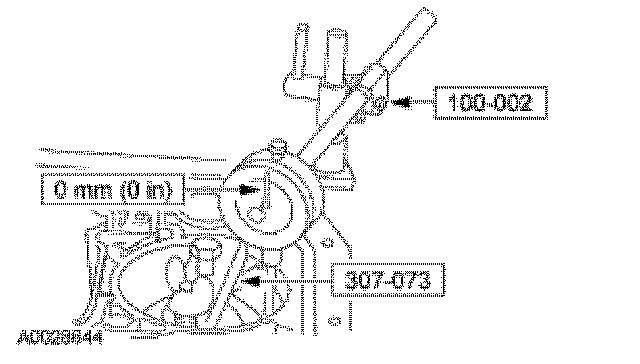

46. Install the special tool.

- Position the indicator stem on the flat portion of the reverse servo piston and zero the dial indicator.






47. Loosen the bolt until the piston stops against the tool.

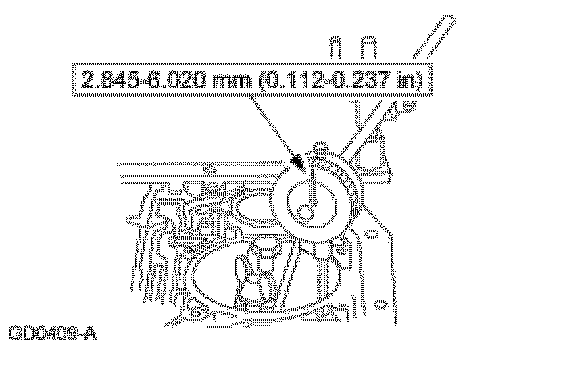

48. Verify that the amount of piston travel on the dial indicator is within specification.

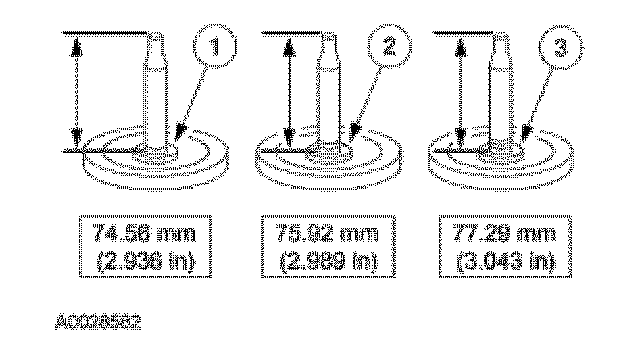

49. If piston travel is not within specification, select and install the correct servo assembly to bring the servo piston travel within specification.

1. One groove

2. Two grooves

3. Three grooves






50. Remove the special tools.






51. Install the reverse servo piston cover and seal assembly.

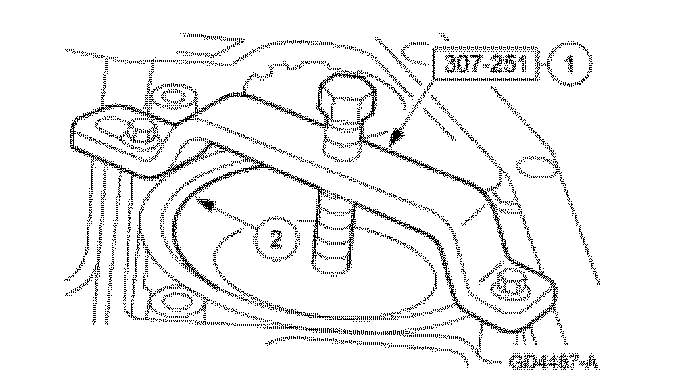

52. Using the special tool, install the reverse servo retaining ring.

1. Compress the reverse band servo.

2. Install the reverse band servo retaining ring.

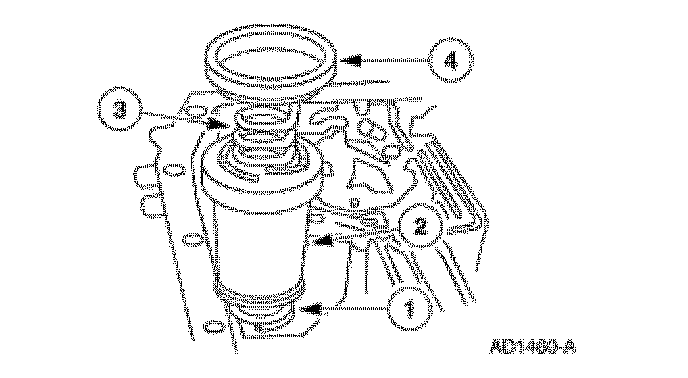

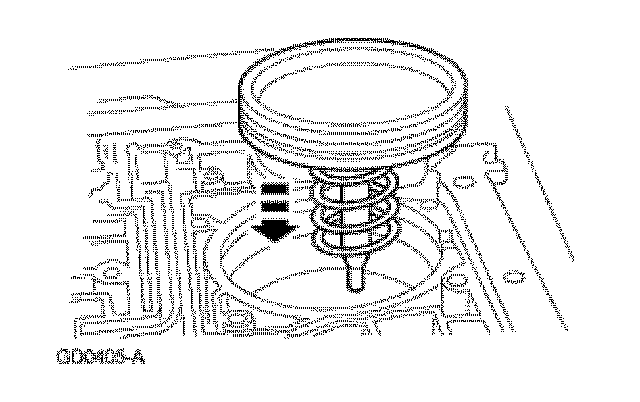

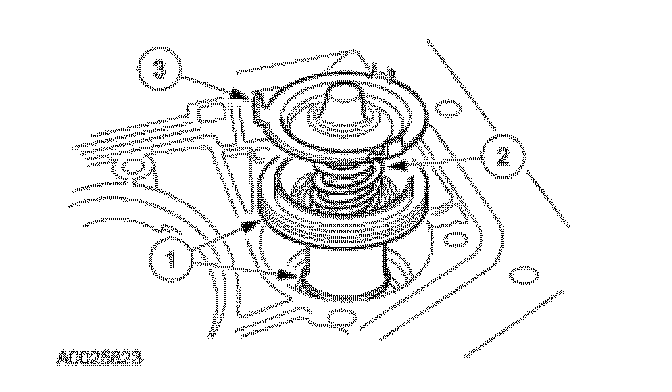

53. Install the 2-3 accumulator assembly.

1. Install the accumulator piston.

2. Install the accumulator piston spring.

3. Install the accumulator spring retainer.

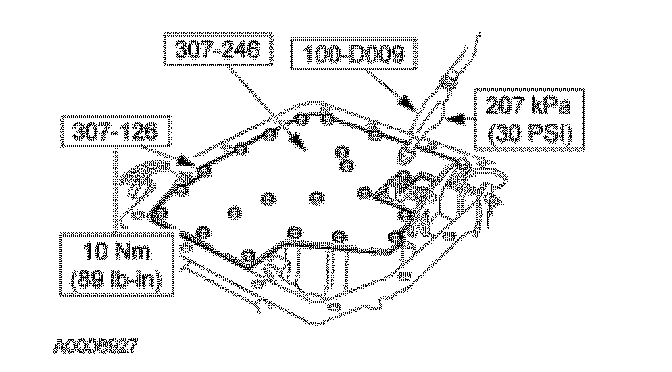

54. Using the special tools apply regulated air pressure to the test ports. Verify that the components are applied and released.

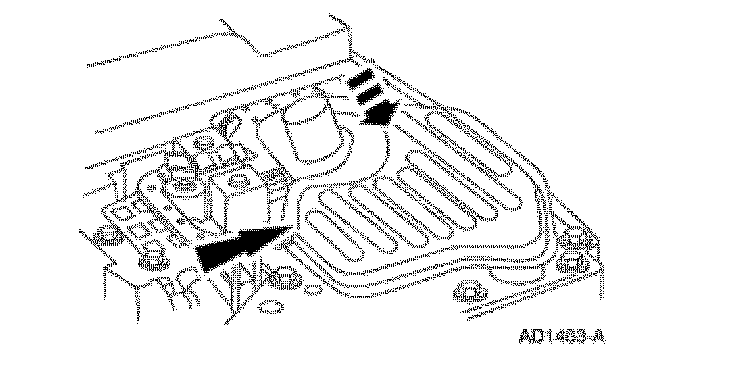

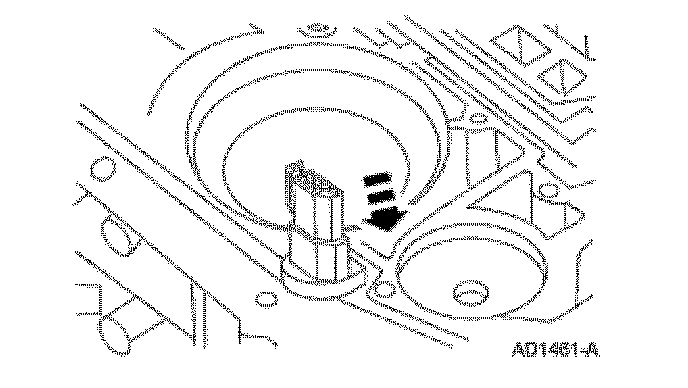

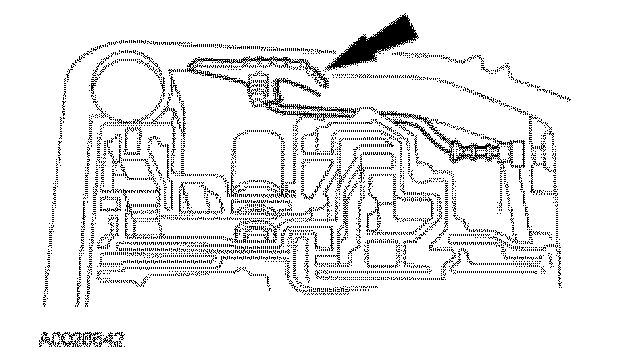

55. NOTE: The tab on the electrical connector is secured by main control valve body. Install the electrical connector into the case.






56. NOTE: The alignment bolts are valve body assembly bolts and are in the valve body.

Align the main control valve body alignment bolts and position the main control valve body.

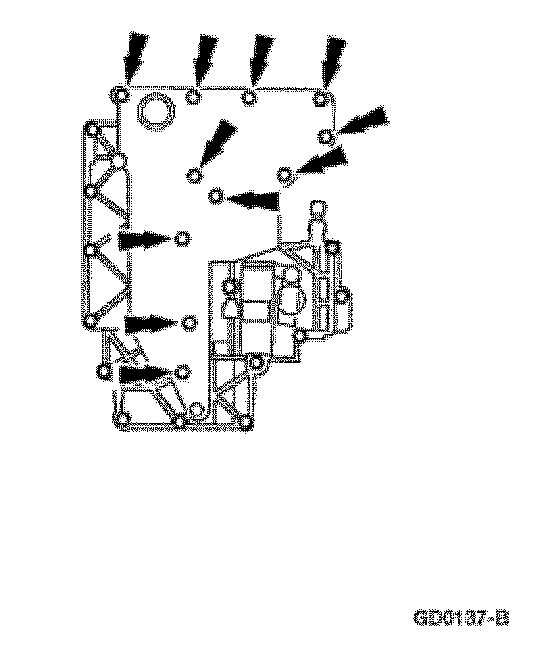

57. NOTE: The main control valve body bolts will be tightened in later steps. Loosely install the 11 long main control valve body bolts.






58. NOTE: The main control valve body bolts will be tightened in later steps. Loosely install the 12 short main control valve body bolts.

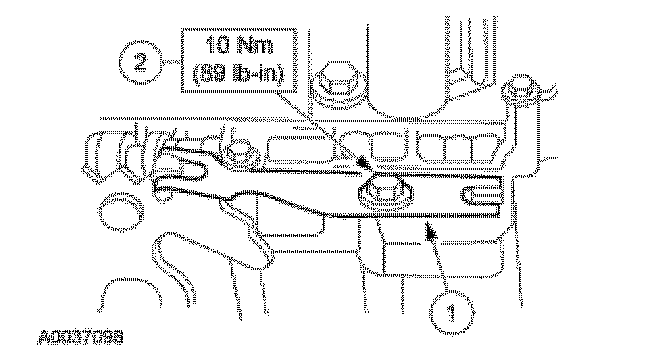

59. Install the manual control valve detent lever spring.

1. Position the manual control valve detent lever spring.

2. Install the bolt.

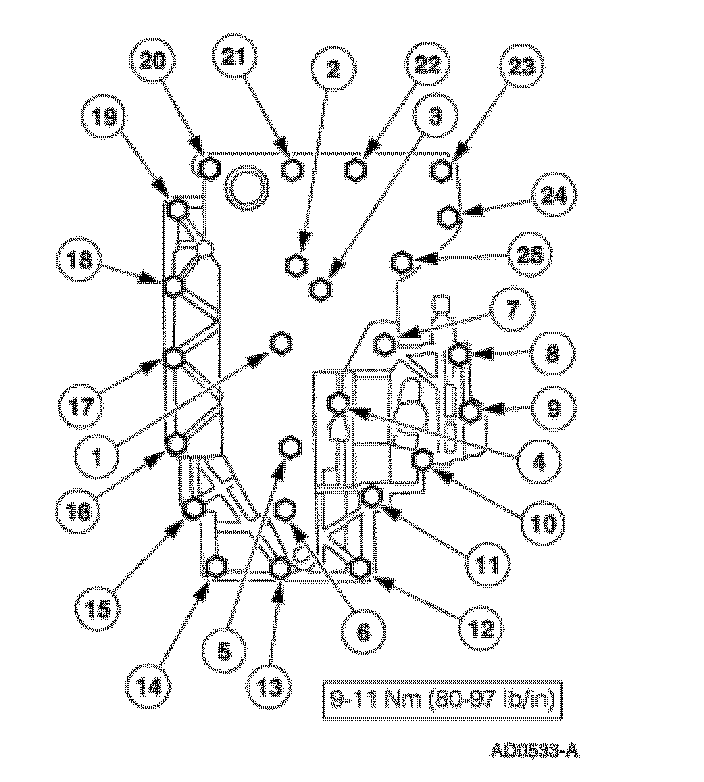

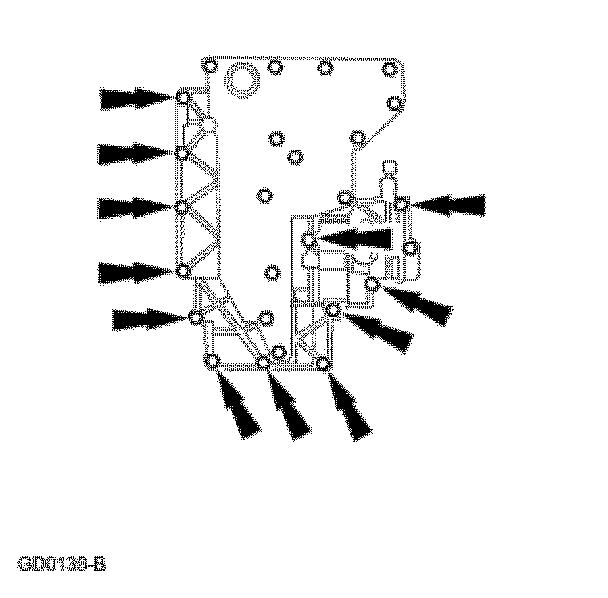

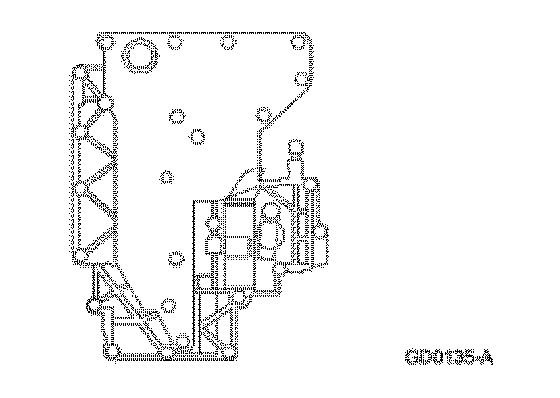

60. Tighten the bolts in the sequence shown.

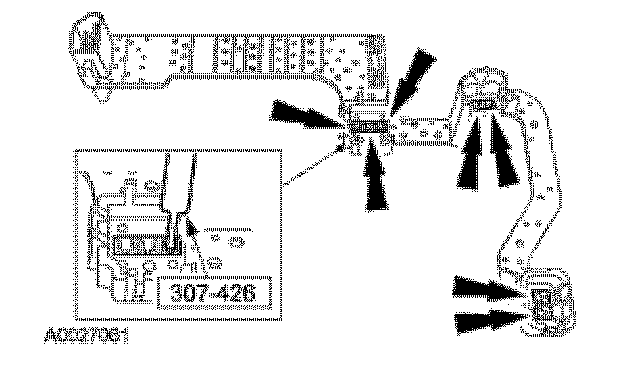

61. Inspect the lead frame for damage.

- Using the special tool, check all the lead frame solenoid connections. The gauge should fit tightly and not fall out after being inserted.

- If the special tool passes through any lead frame connector pins or does not feel like it makes a good contact, install a new lead frame.

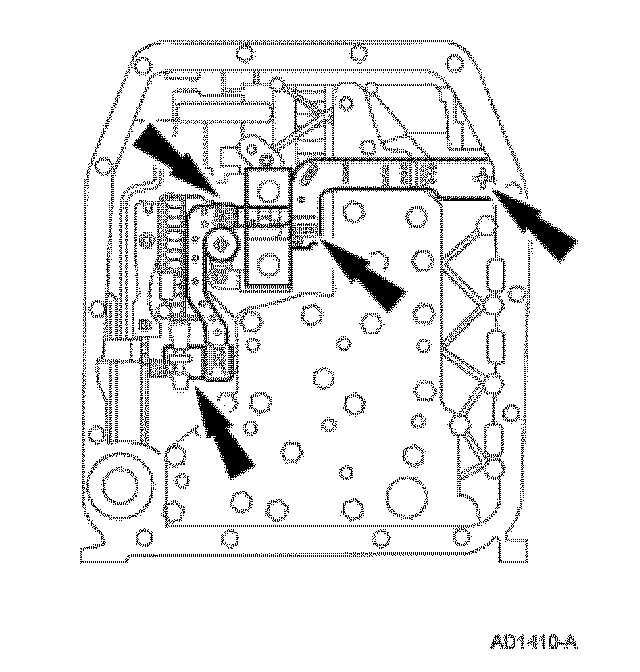

62. Connect the molded lead frame to the solenoids.

- Connect the bulkhead inter-connector by pressing it in place by hand and fully seating the connector in place.

- Connect the EPC solenoid by pressing it in place by hand and fully seating the connector in place. Make sure that the terminals pass fully through the connector slots.

- Connect the TCC by pressing it in place by hand and fully seating the connector in place. Make sure that the terminals pass fully through the connector slots.

- Connect the shift solenoid SSA and SSB by pressing it in place by hand and fully seating the connector in place. Make sure that the terminals pass fully through the connector slots.

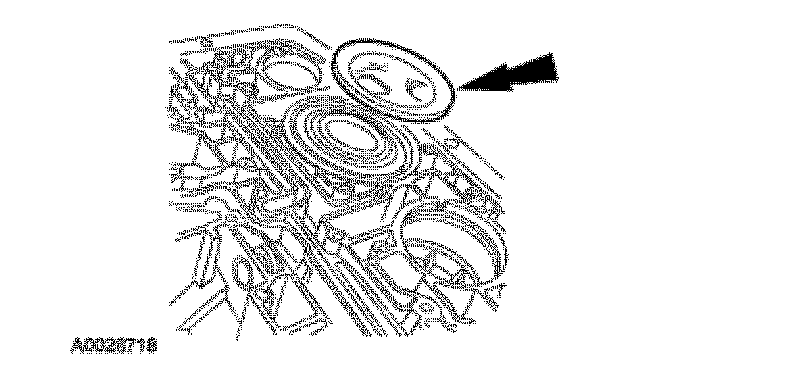

63. Install the fluid filter and seal assembly.

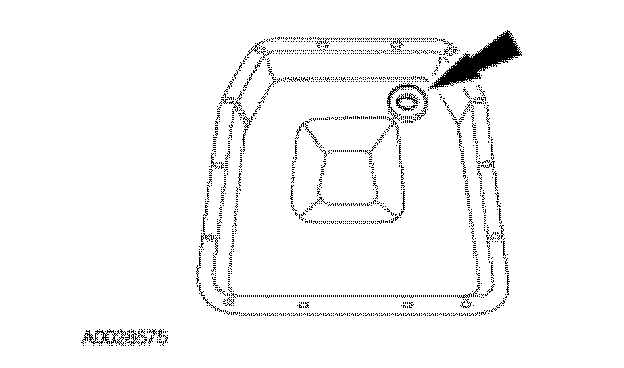

64. Position the pan magnet into the transmission fluid pan.






65. NOTE: The pan gasket is reusable; clean and inspect for damage. If not damaged, the gasket should be reused.

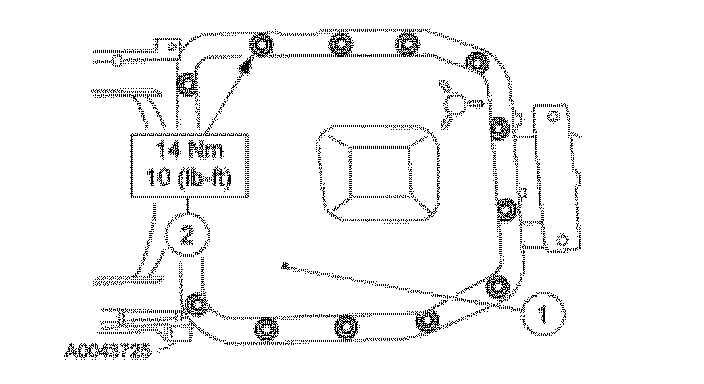

Install the fluid pan.

1. Position the transmission fluid pan and gasket.

2. Install the transmission fluid pan bolts.

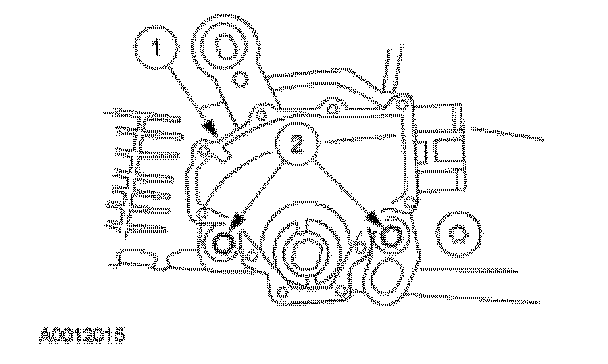

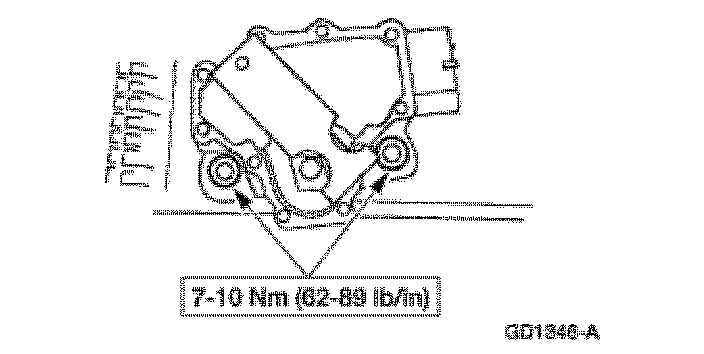

66. Install the digital transmission range (TR) sensor.

1. Install the digital TR sensor.

2. Loosely install the digital TR bolts.

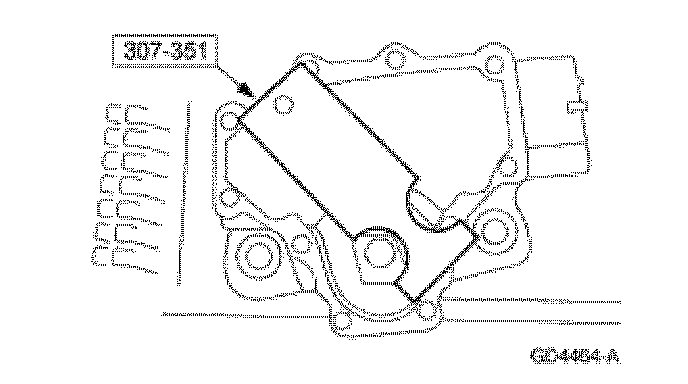

67. NOTE: The tool is designed to fit snugly. NOTE: Manual shift lever must be in the neutral position. Using the special tool, align the digital TR sensor slots.






68. Tighten the bolts.






69. Lightly lubricate the converter hub with clean automatic transmission fluid.

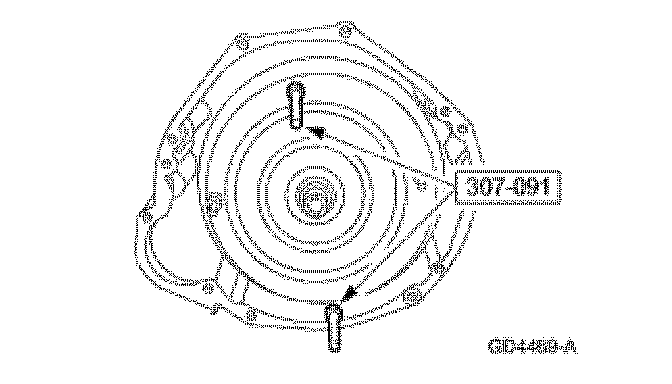

70. WARNING: The torque converter can fall out if the transmission is tipped.

CAUTION: Make sure the converter hub is fully engaged in the front pump support and gear and rotates freely. Do not damage the hub seal.

CAUTION: If the torque converter slides out, the hub seal may be damaged. Using the special tools, install the torque converter.

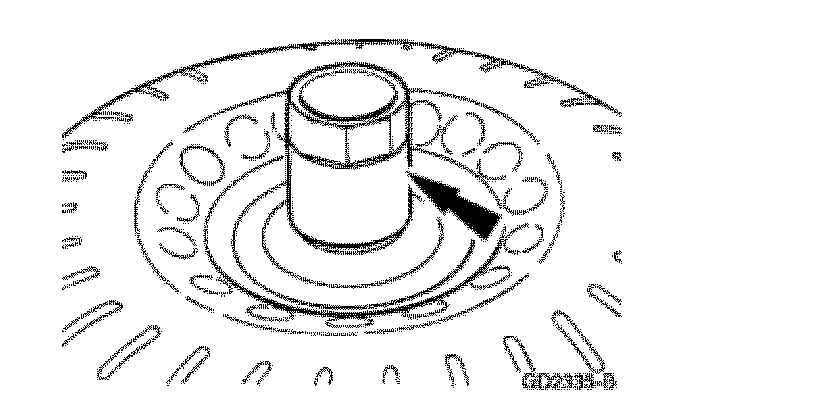

71. Lubricate the torque converter pilot hub with multi-purpose grease.
