PINPOINT TEST M: THE AIR COMPRESSOR CONTINUOUSLY CYCLES WITH THE IGNITION SWITCH IN THE OFF POSITION AND NO DTC IS SET

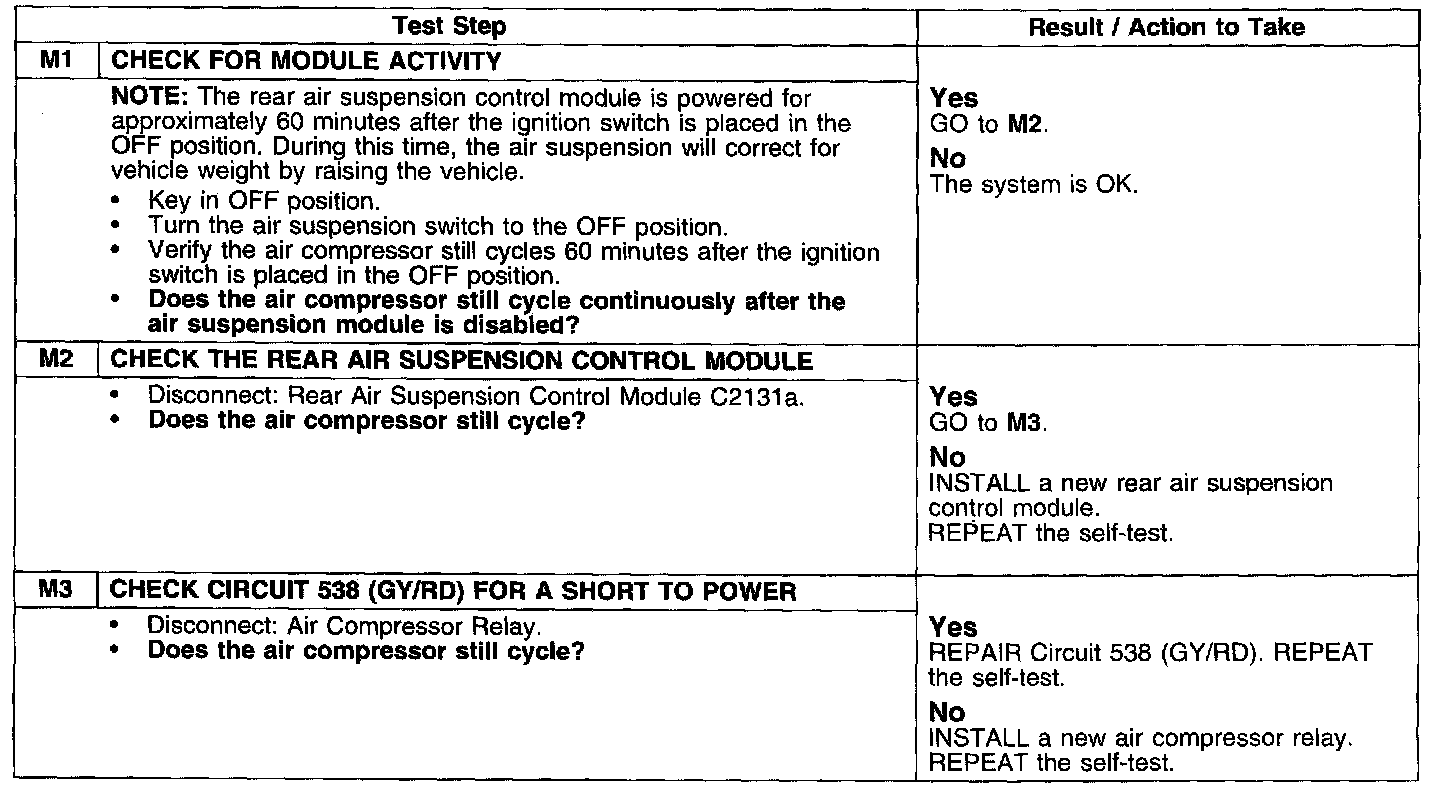

Test M1 - M3:
