Home >> Mercury >> 2003 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Pinpoint Tests >> Test L

Test L

PINPOINT TEST L: THE COMPRESSOR IS INOPERATIVE

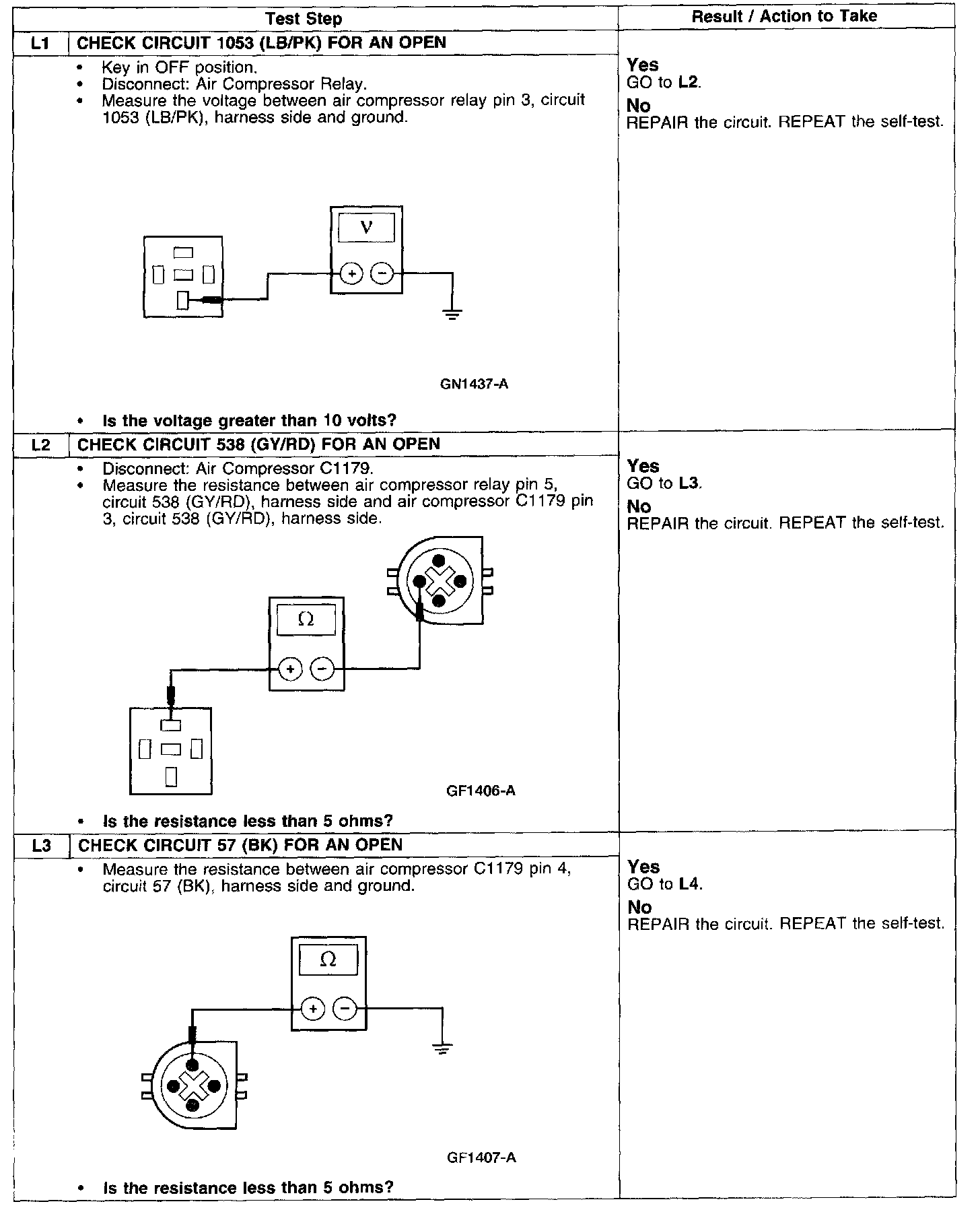

Test L1 - L3:

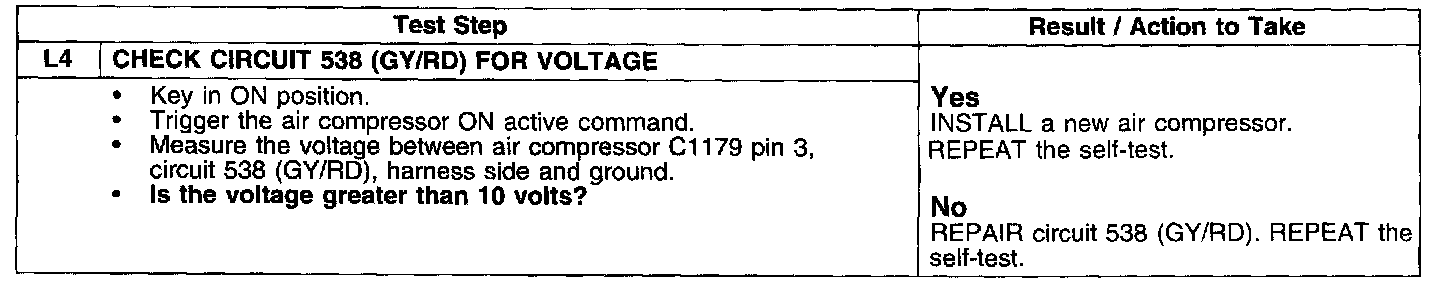

Test L4:
