Test H

PINPOINT TEST H: DTC C1770-AIR SUSPENSION VENT SOLENOID OUTPUT CIRCUIT FAILURE

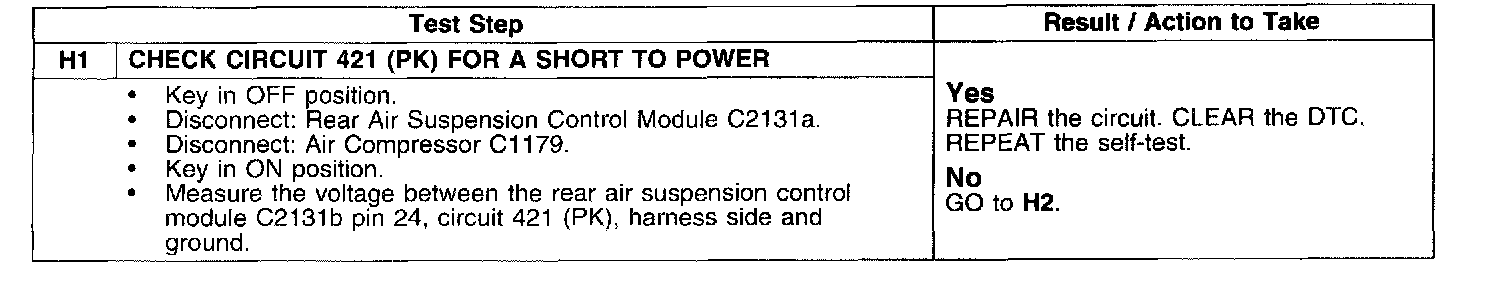

Test H1:

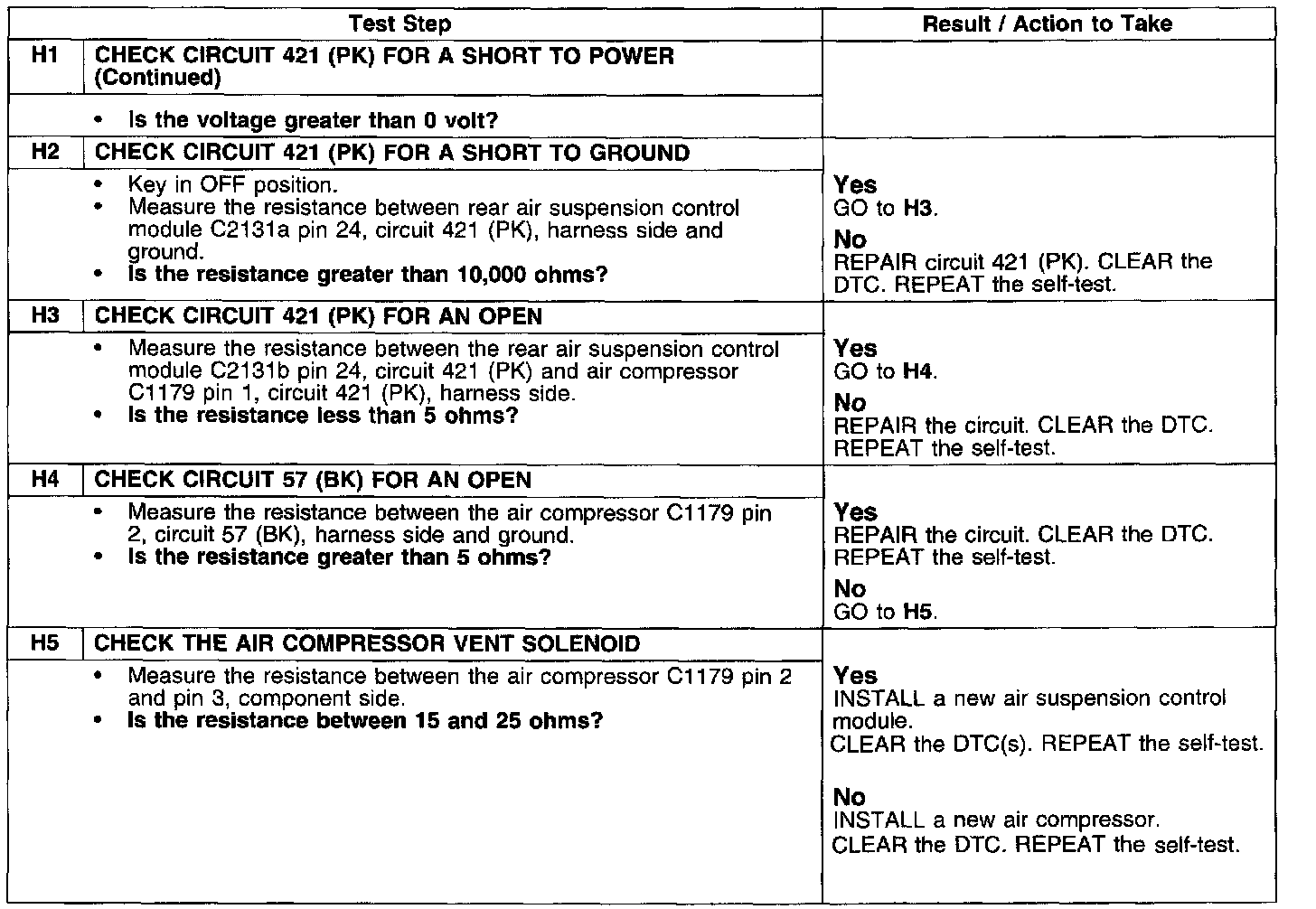

Test H1 - H5:
