Home >> Mercury >> 2003 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Pinpoint Tests >> Test G

Test G

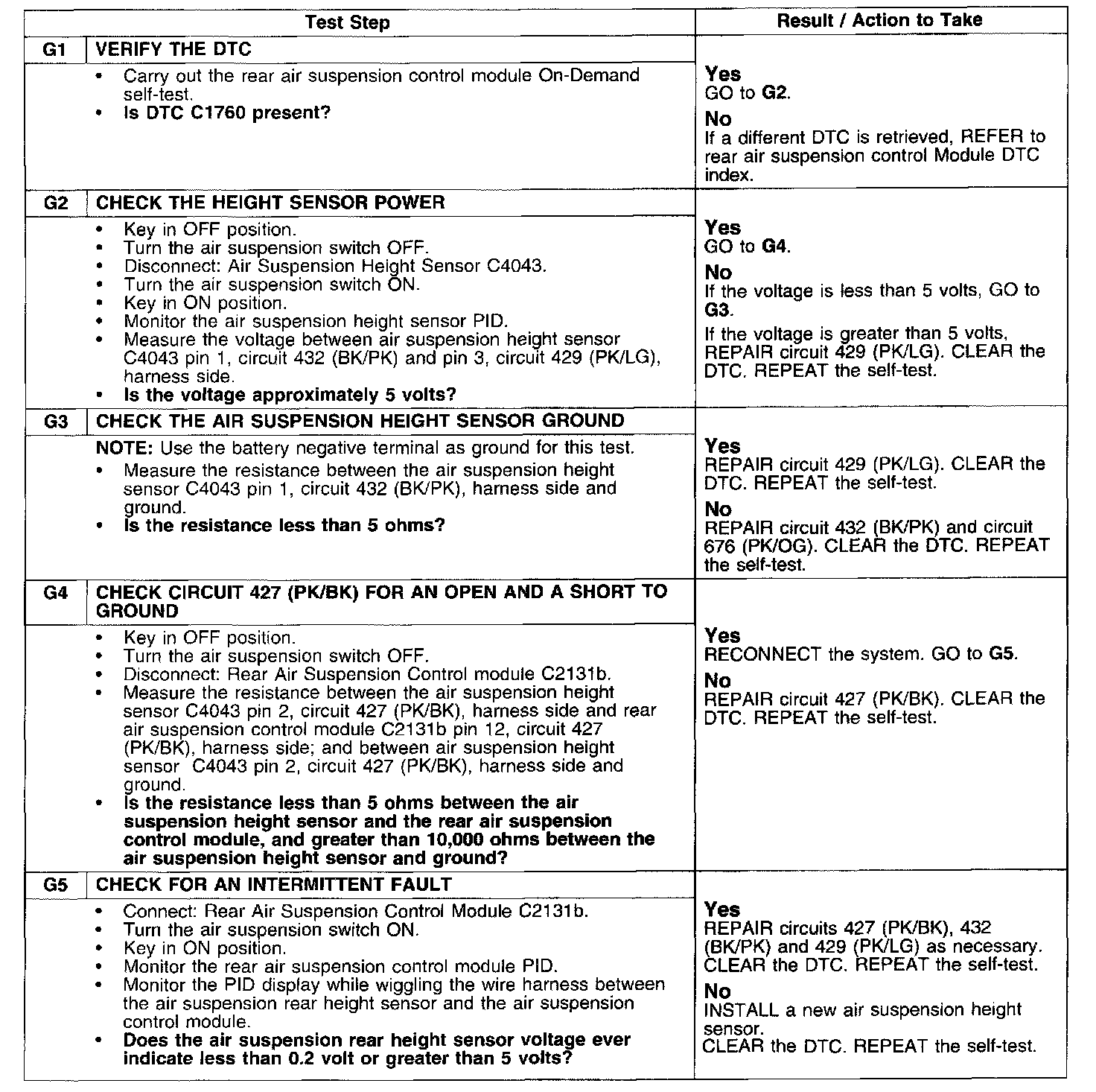

PINPOINT TEST G: DTC C1760-AIR SUSPENSION REAR HEIGHT SENSOR HIGH SIGNAL CIRCUIT

Test G1 - G5:
