Test F

PINPOINT TEST F: DTC C1726-AIR SUSPENSION PNEUMATIC FAILURE

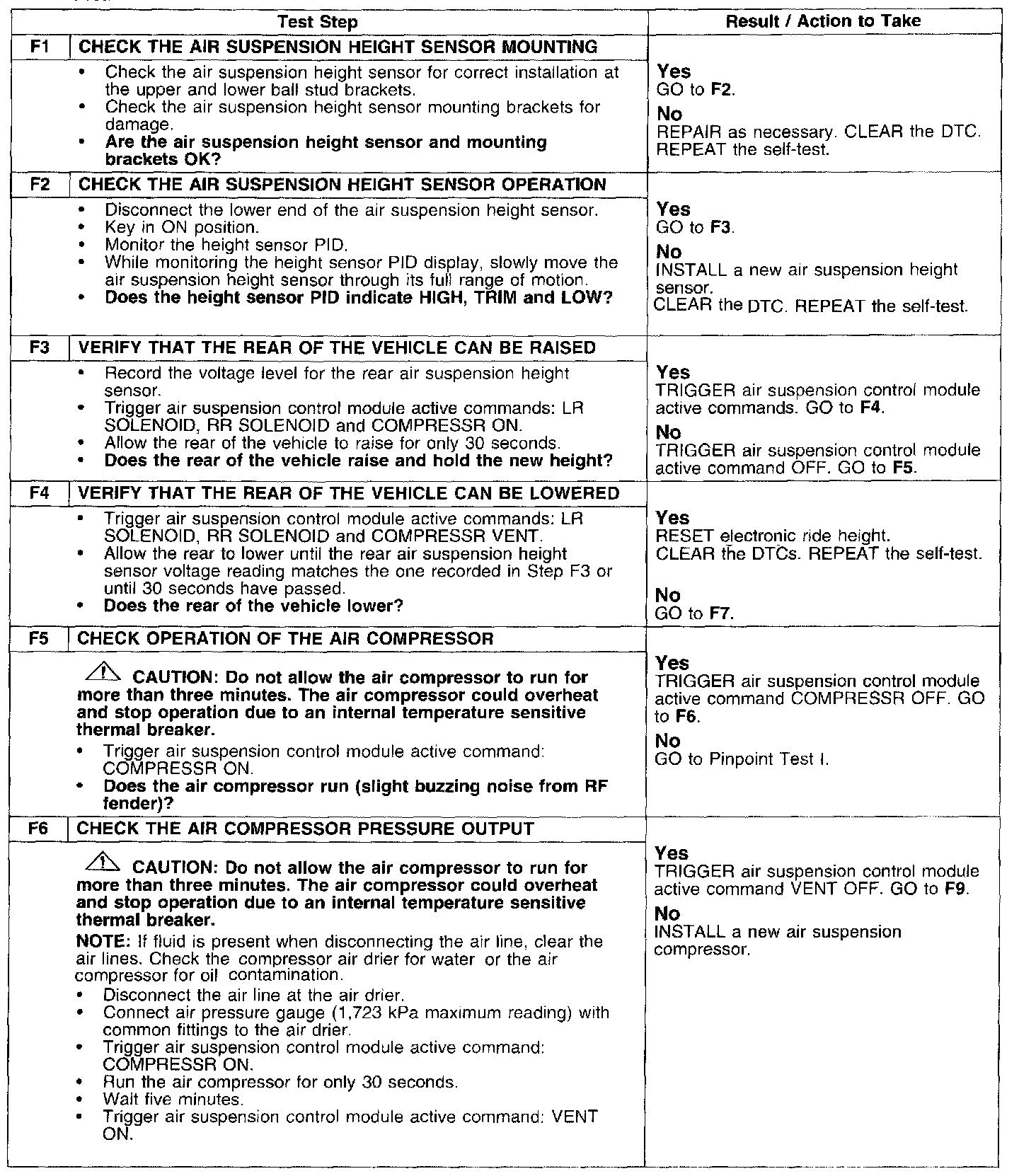

Test F1 - F6:

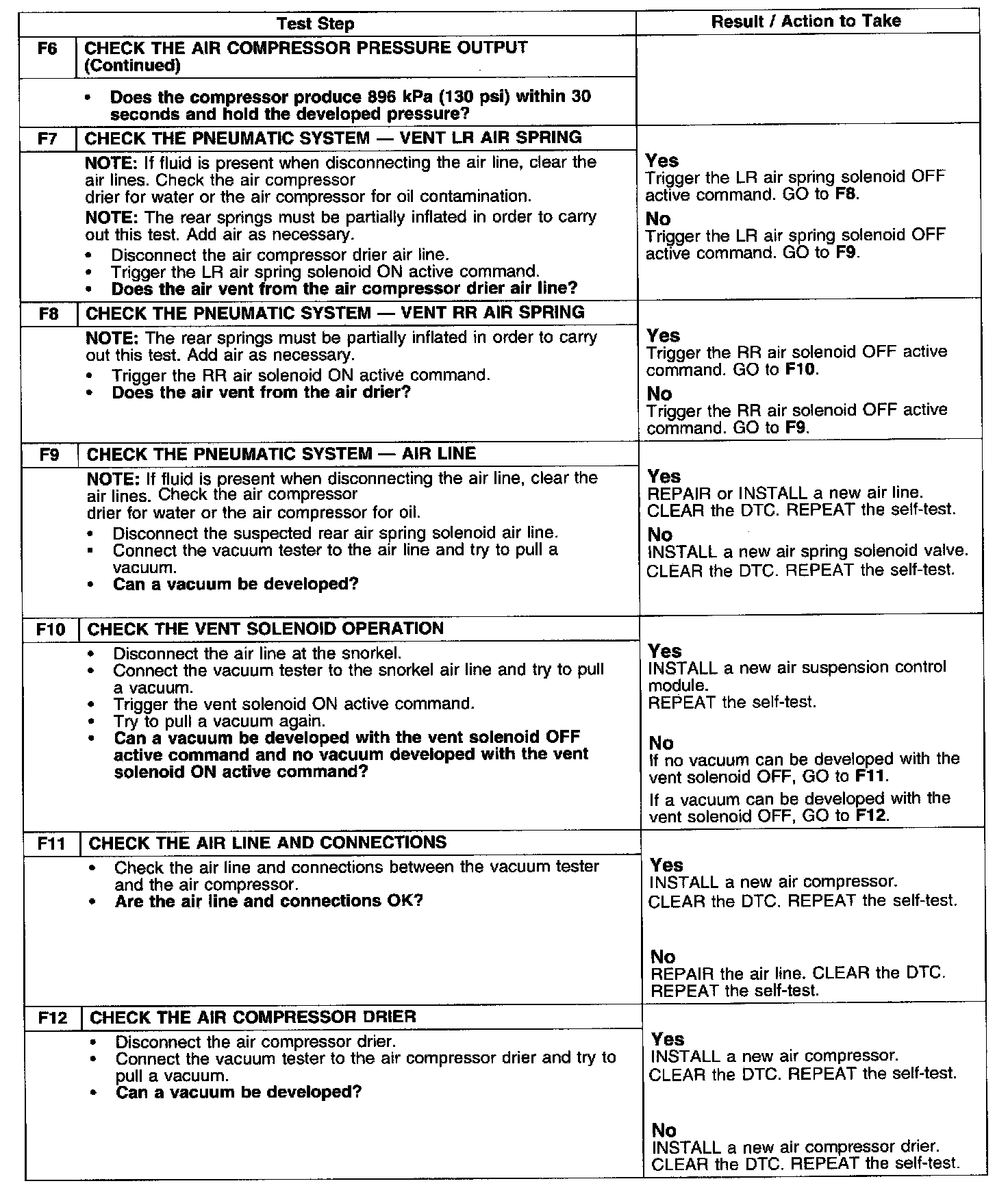

Test F6 - F12:

NOTE: Repair all other DTCs before repairing DTC C1726.

NOTE: It can be necessary to partially vent air from the rear air springs during this Pinpoint Test.
