Drier

Removal

1. Remove the air compressor.





2. Remove the air compressor drier.

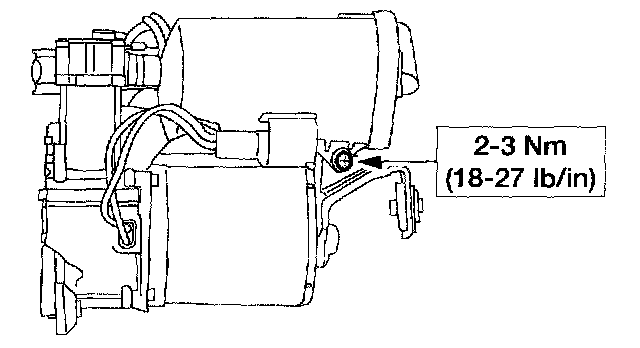

1 Remove the screw.
2 Rotate 90 degrees to unlock then remove the air compressor drier.

Installation





1. NOTE: Inspect the O-ring for damage and install a new O-ring as necessary. Lubricate the solenoid seal area with grease.

NOTE: When installing the air lines make sure the white air line is fully inserted into the fitting for correct installation.

NOTE: Ride height adjustments must be carried out after the air compressor/drier is installed.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms can occur while the vehicle relearns its adaptive strategy. The vehicle can need to be driven 16 km (10 miles) or more to relearn the strategy.

To install, reverse the removal procedure.
