Power Steering Pump

Power Steering Pump





Special Tool(s)

Removal and Installation
1. Remove the power steering pump pulley.

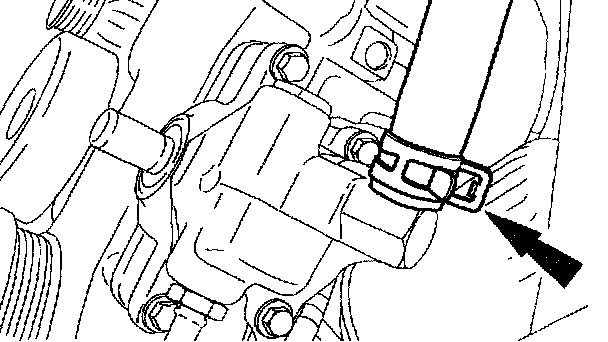

2. Loosen the clamp and disconnect the hose.
^ Drain the fluid into a suitable container.

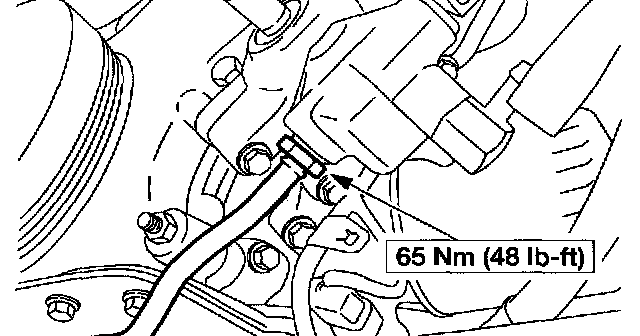

3. Remove the nut.





4. Disconnect the pressure line.

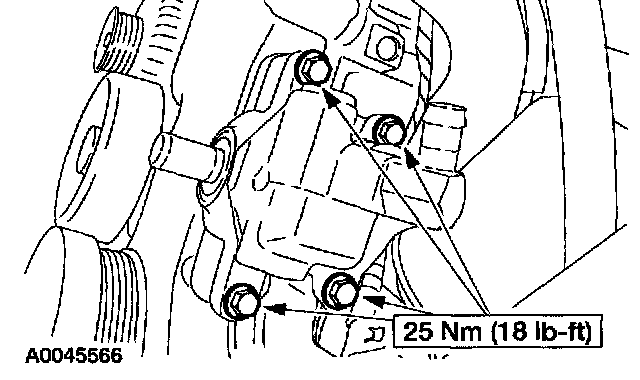

5. Remove the bolts and the power steering pump.
6. To install, reverse the removal procedure.





7. Fill, purge and check the system for leaks.

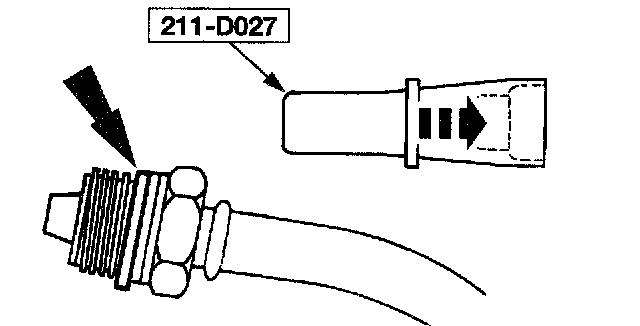

^ Using the special tool, install a new O-ring seal on the pressure line fitting.
