Police Option

PLEASE NOTE: Some diagrams may appear to be missing because of gaps in the number sequences. These "gaps" are actually for diagrams that do not apply to the vehicle model selected.

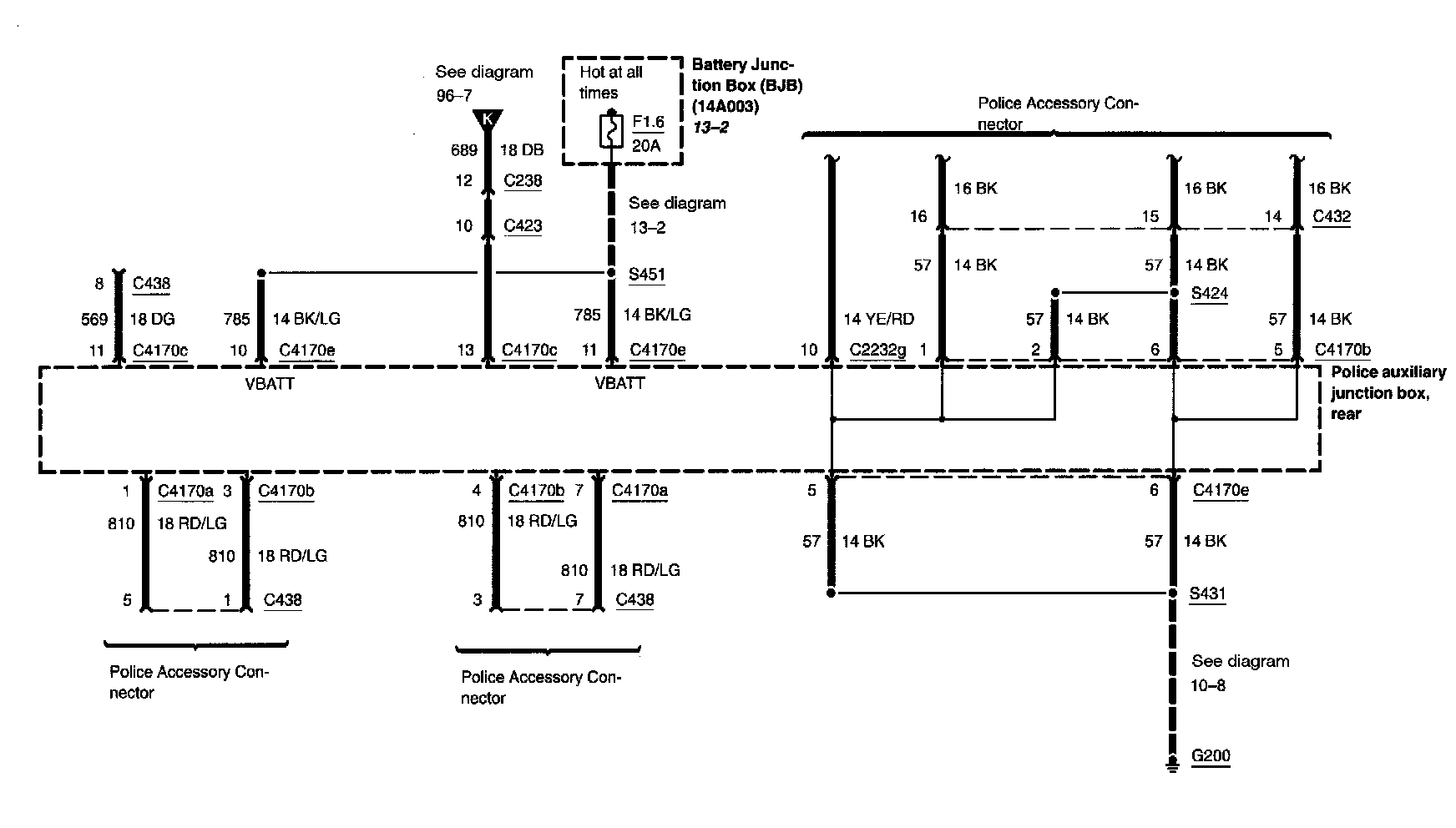

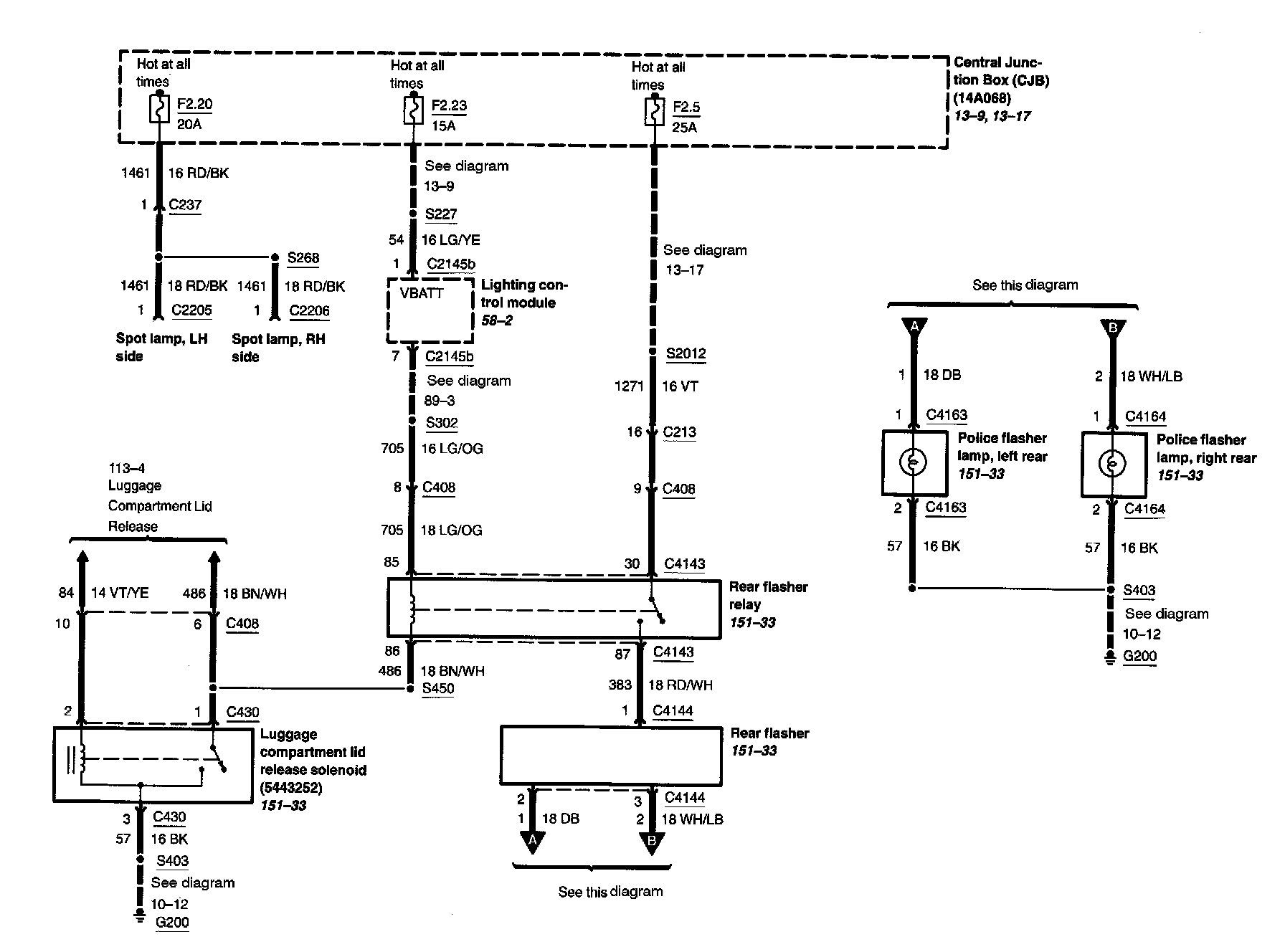

96-1:

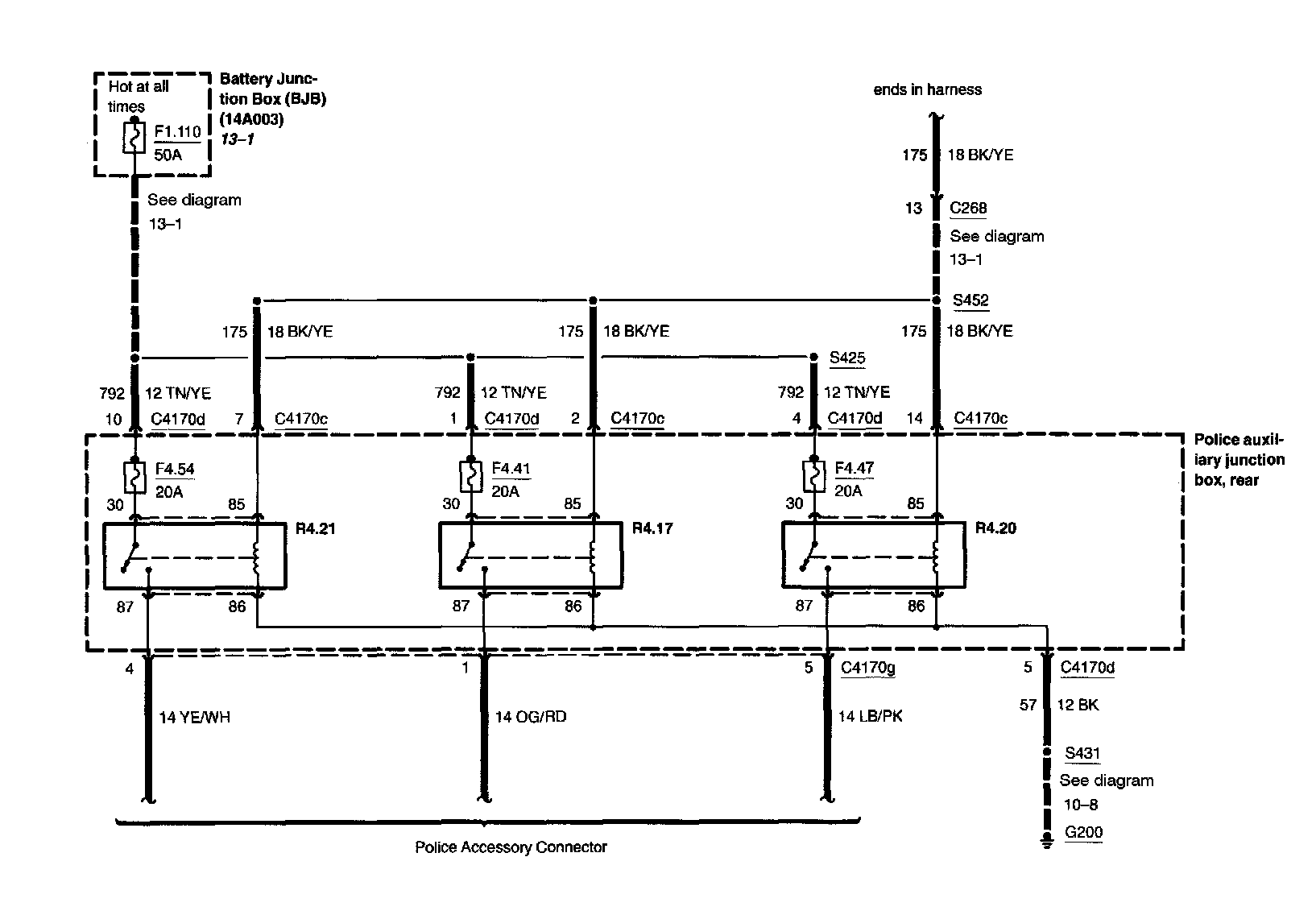

96-2:

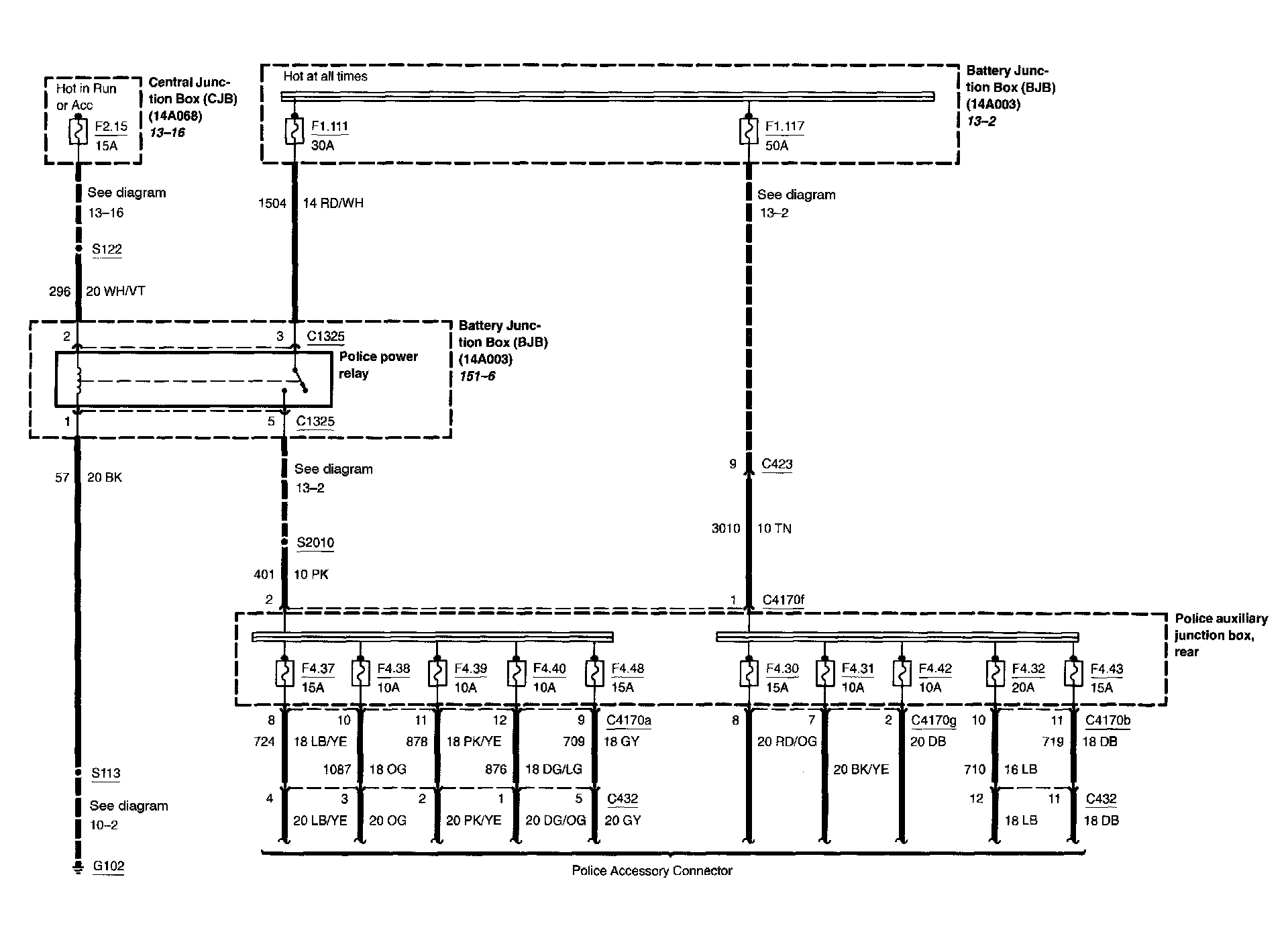

96-3:

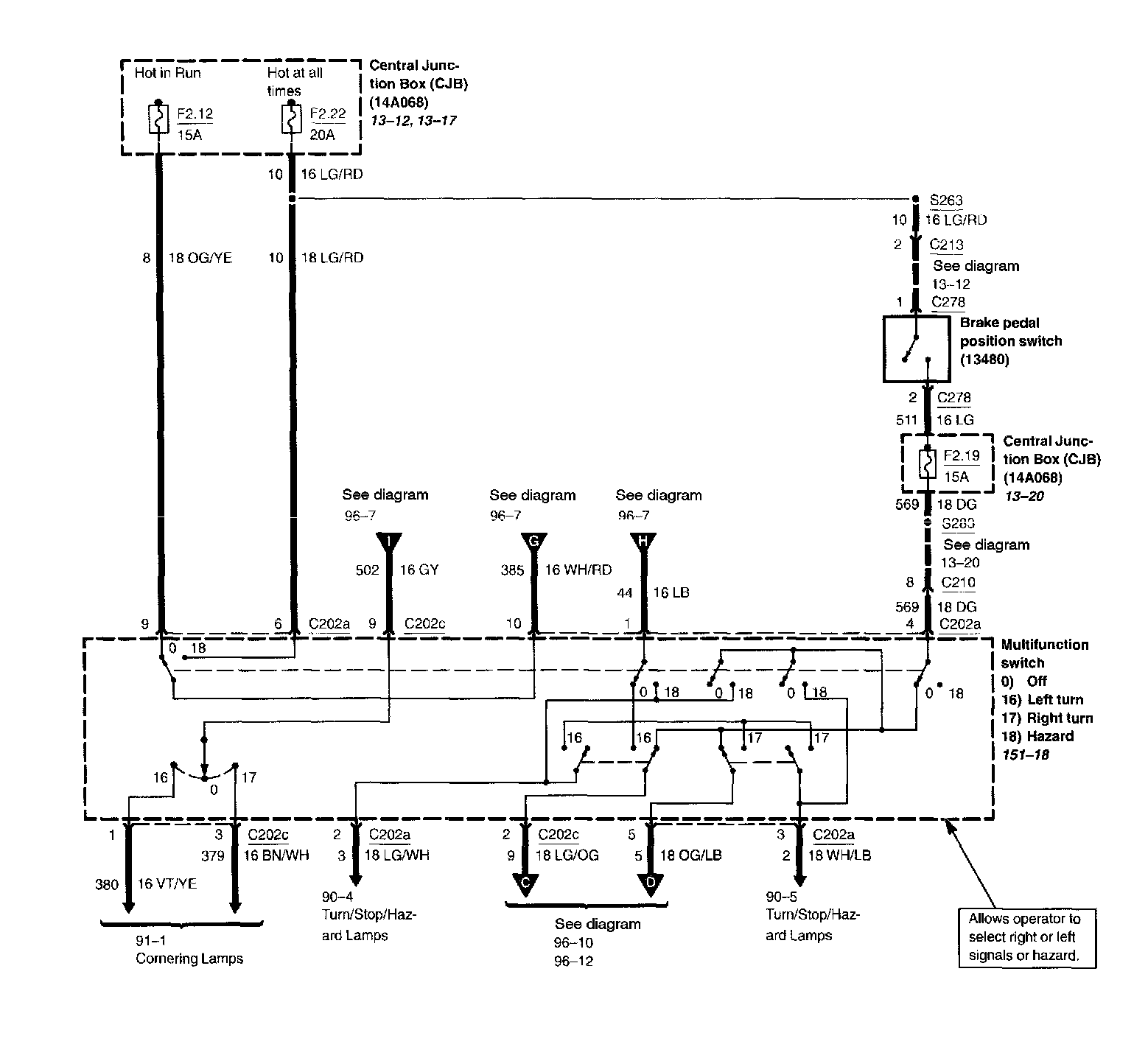

96-4:

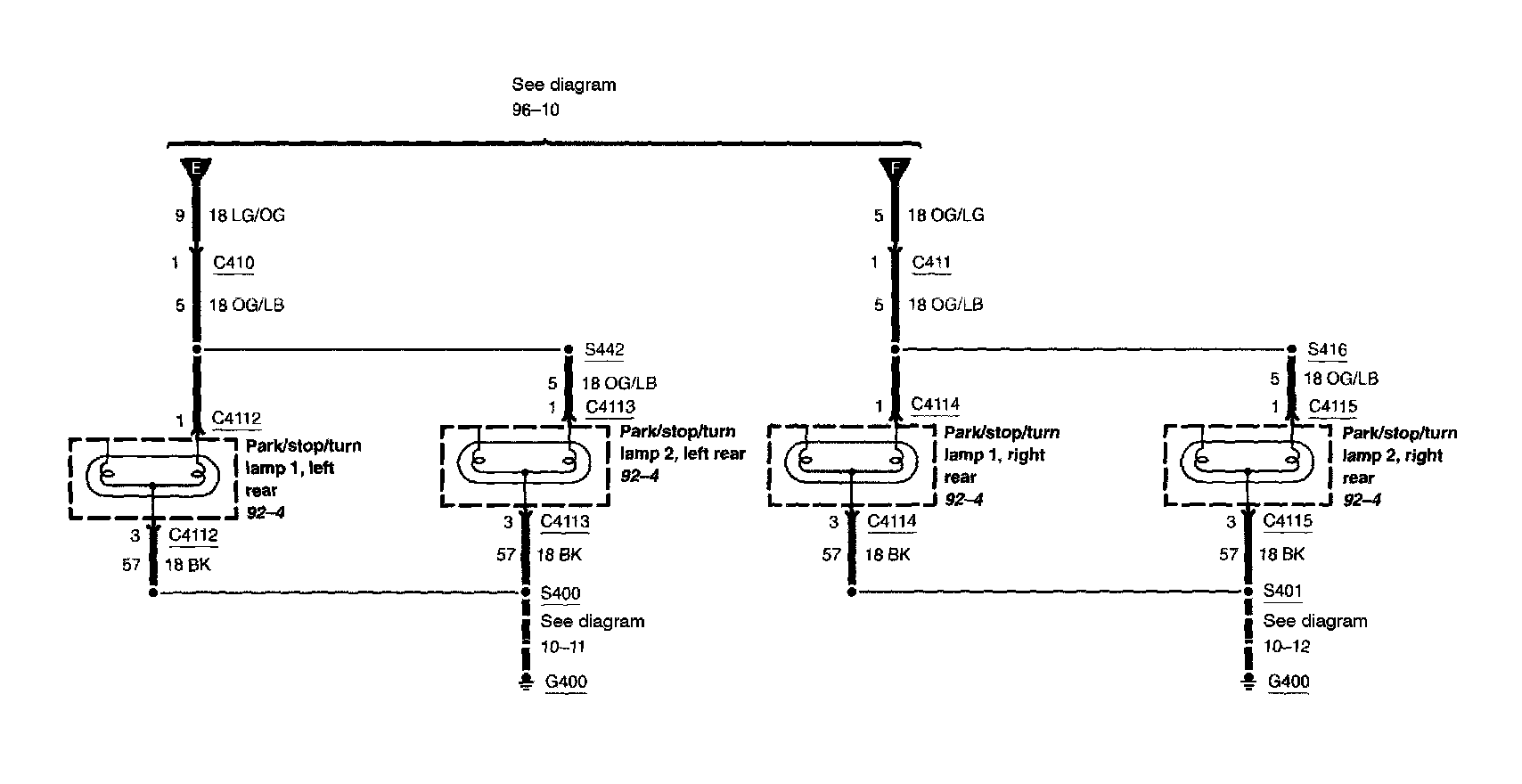

96-5:

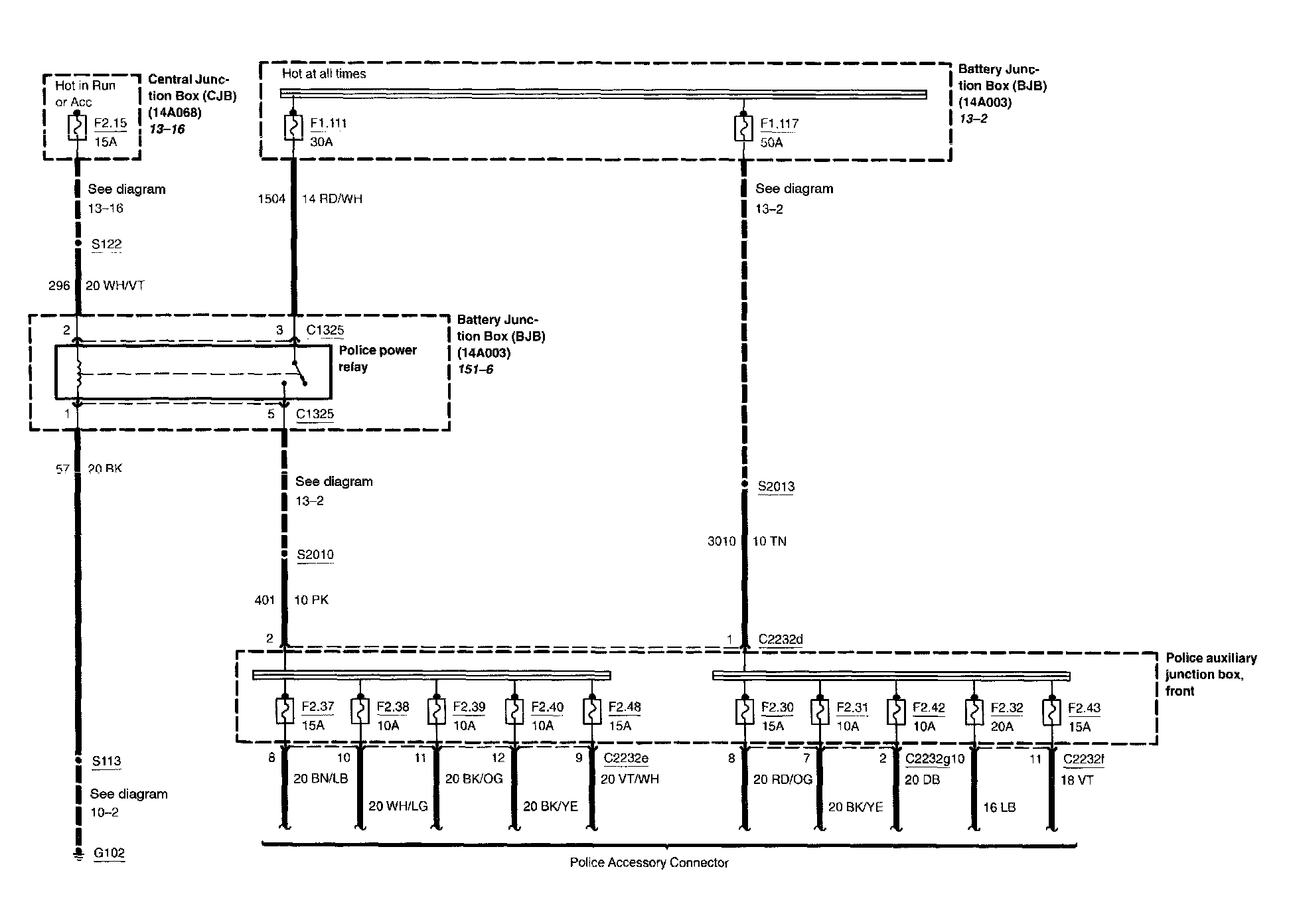

96-6:

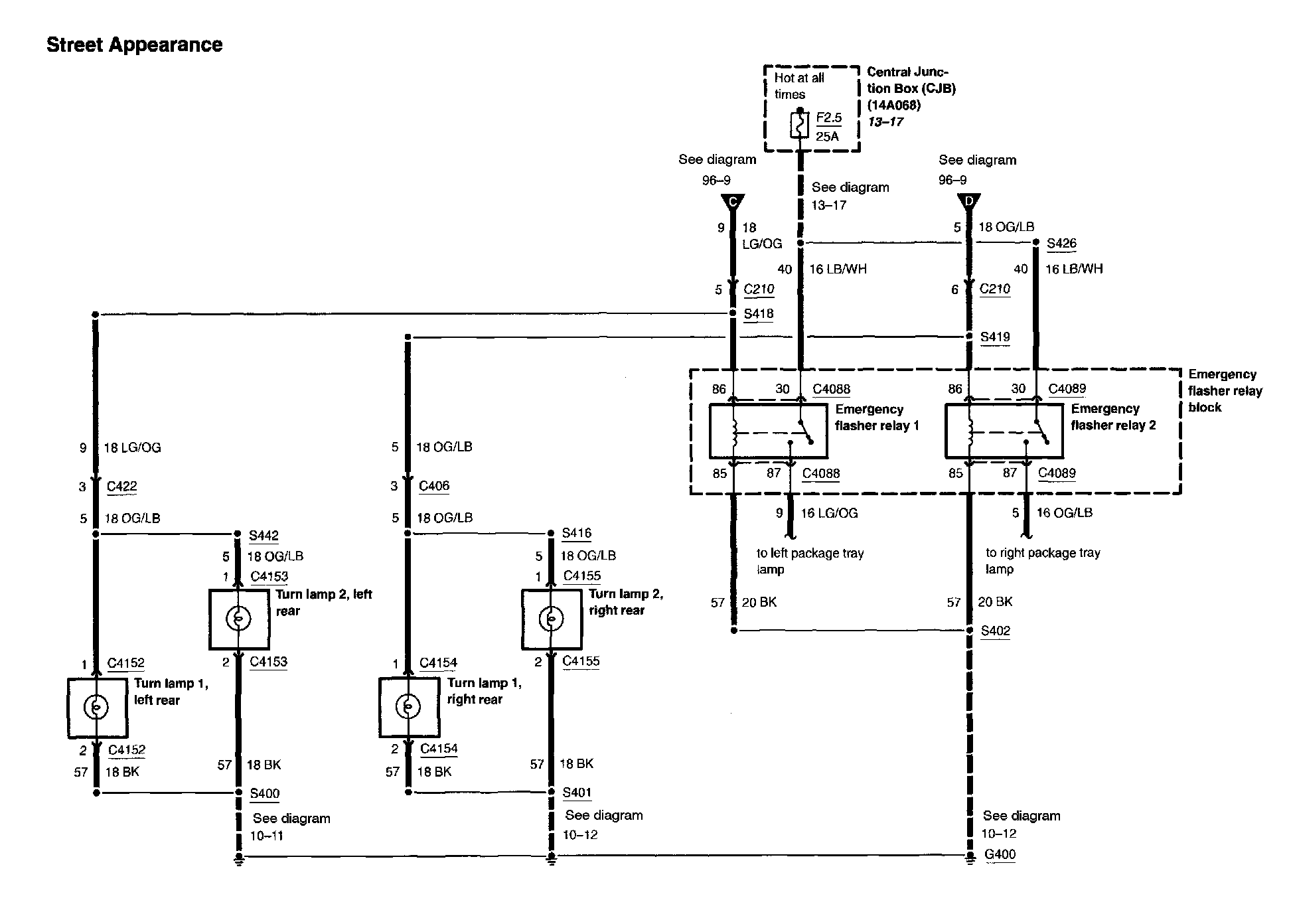

96-7:

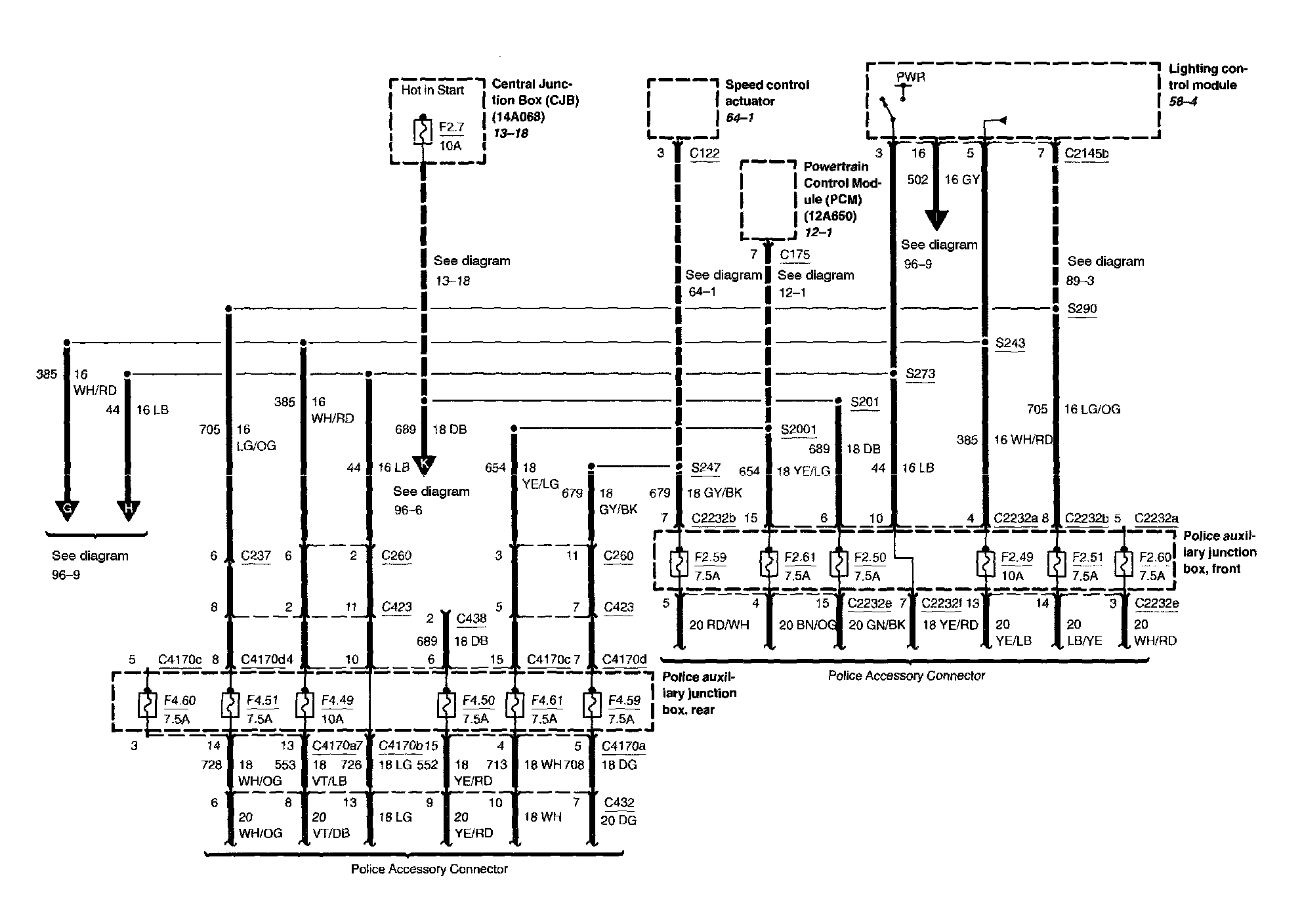

96-8:

96-9:

96-10:

96-11:

96-12:

96-13:

96-14:

Diagrams -- Other diagrams referred to by number (See Diagram ##-#, etc.) within these diagrams can be found at Diagrams by Number. Diagrams By Number

Locations -- Location views (reference numbers starting with 151-) referred to within these diagrams can be found at Component Location Views. Component Location Views
