Test B
Test B
PINPOINT TEST B: THE
CHARGING SYSTEM
WARNING INDICATOR IS ON WITH THE ENGINE RUNNING (THE SYSTEM VOLTAGE DOES NOT INCREASE)

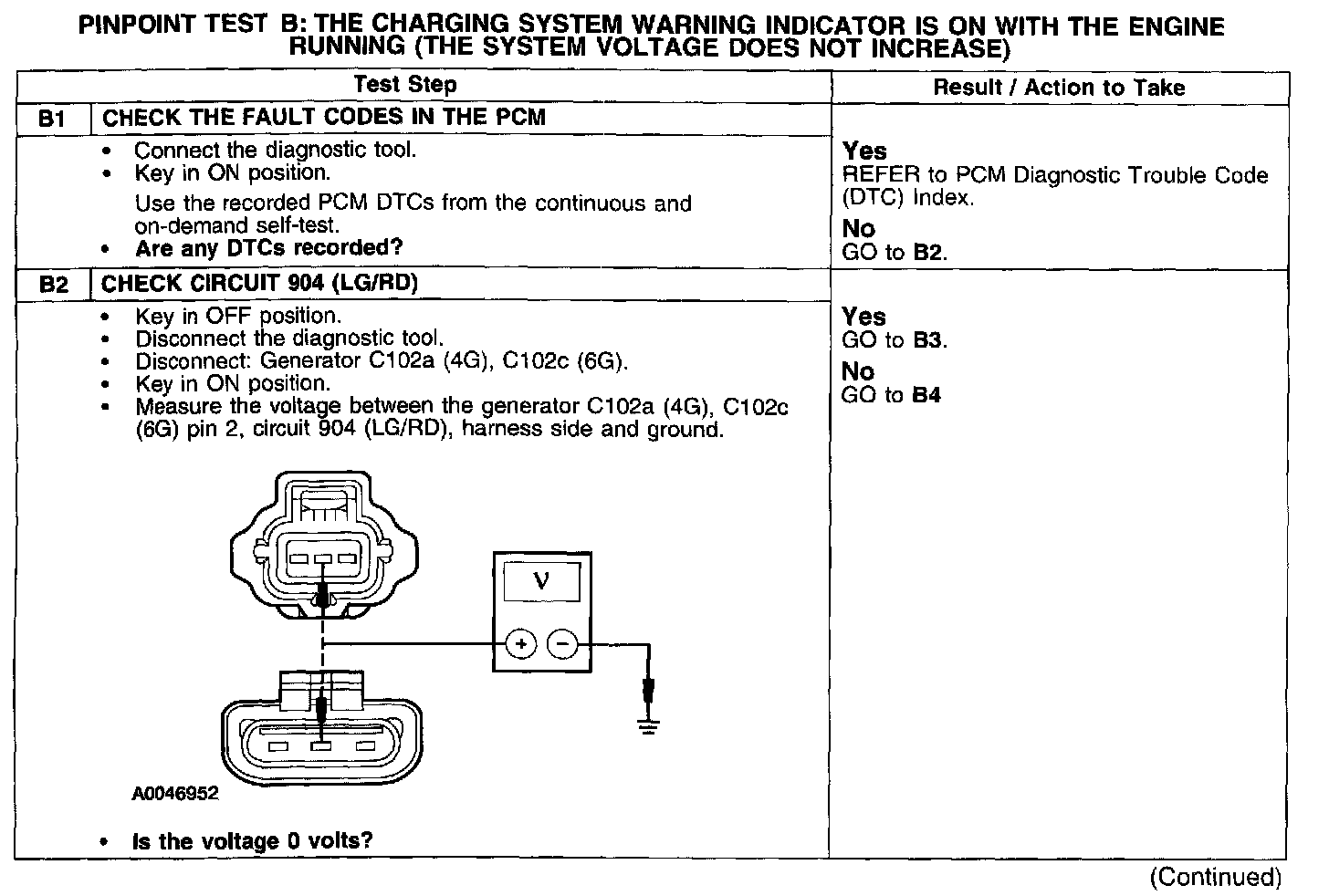

Test B1-B2:

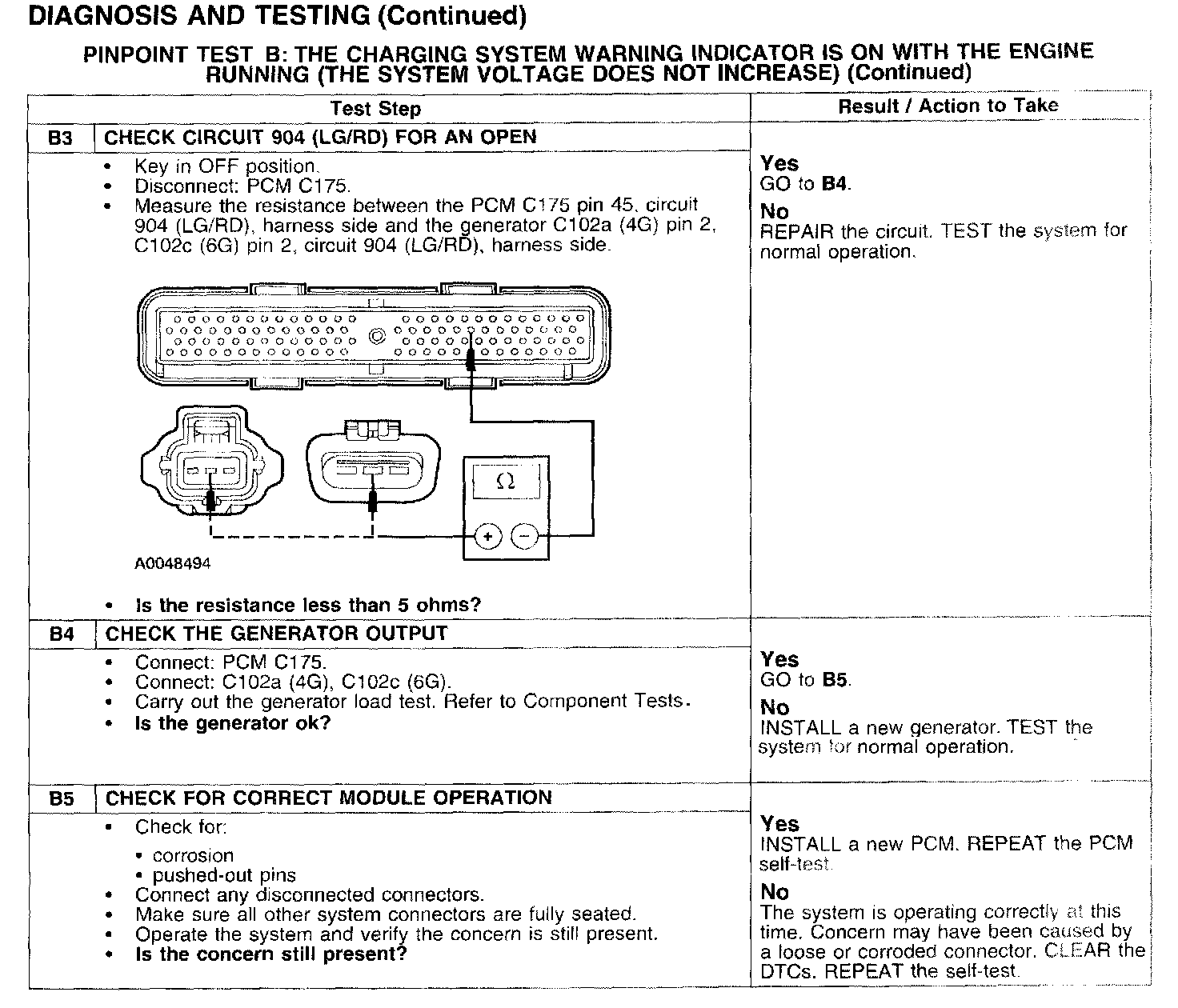

Test B3-B5:
