Transmission Position Sensor/Switch: Adjustments

Transmission Range (TR) Sensor Adjustment

Special Tools:

Special Tool(s)

1. Position the vehicle on a hoist. Place in NEUTRAL.

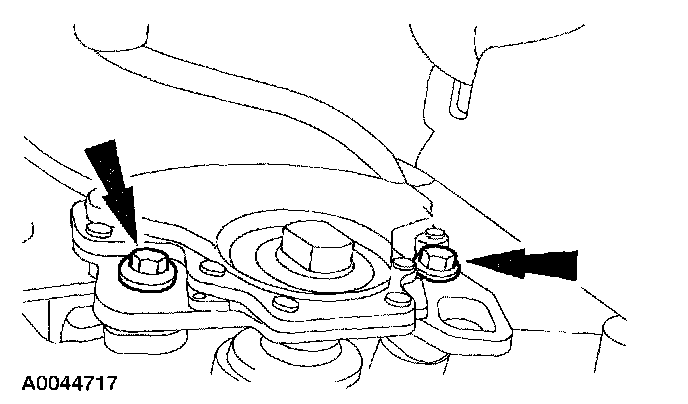

2. Loosen the digital TR sensor bolts.





3. NOTE: Make sure that the manual lever is in the NEUTRAL position.

Using the special tool, align the digital TR sensor slots. The tool is designed to fit snugly.





4. Tighten the digital TR sensor bolts and remove the special tool.
5. Lower the vehicle.
6. Verify that the vehicle starts in the PARK and NEUTRAL positions and the REVERSE lamps illuminate in REVERSE.
