Brake Light Switch: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.







2. Remove the pin-type retainers and the LH instrument panel insulator.
^ Disconnect the courtesy lamp.







3. Disconnect the Brake Pedal Position (BPP) switch electrical connector.

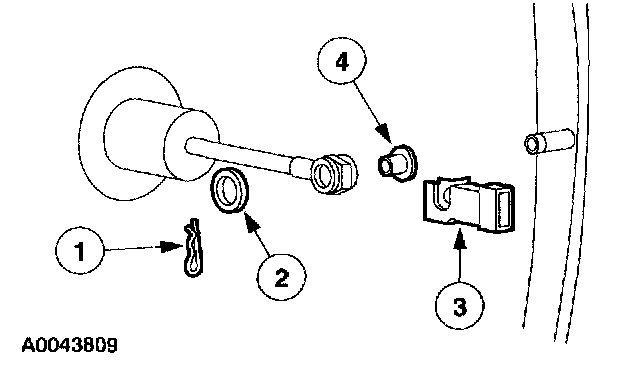

4. Remove the BPP switch.
1 Remove the self locking pin.
2 Remove the brake master cylinder push rod spacer.
3 Remove the BPP switch from the brake master cylinder push rod.
4 Remove the brake master cylinder push rod bushing.

INSTALLATION
1. To install, reverse the removal procedure.
