Power Door Lock Switch: Service and Repair

REMOVAL

NOTE: Driver side shown, passenger side similar.

1. Disconnect the battery.

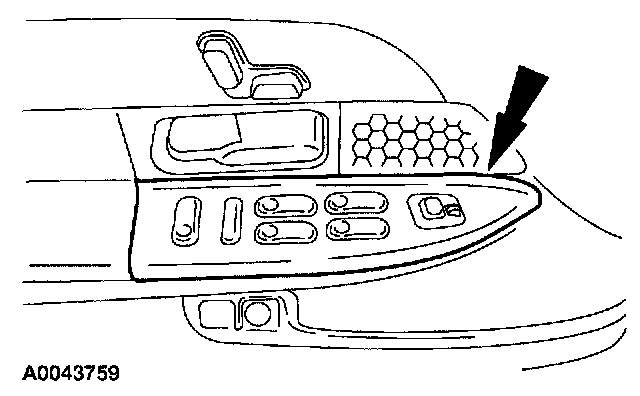

2. Remove the switch plate.

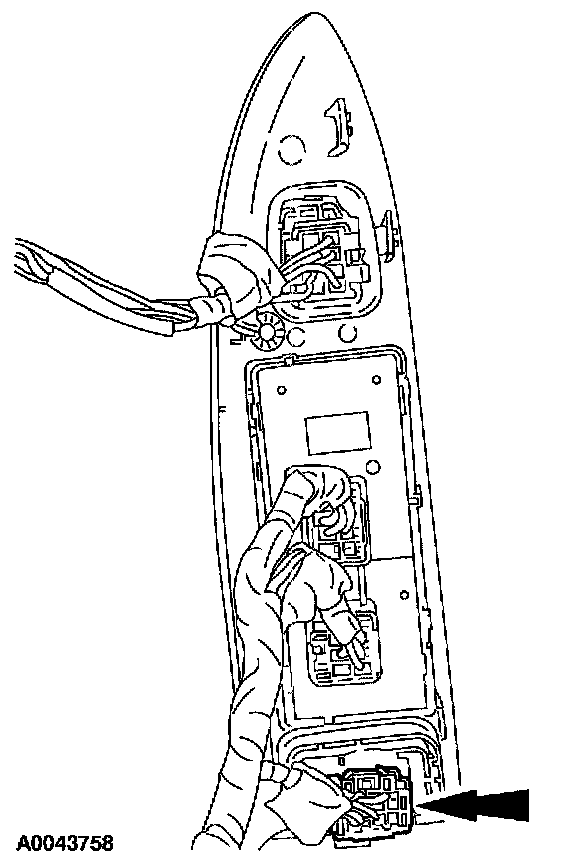

3. Disconnect the electrical connector.

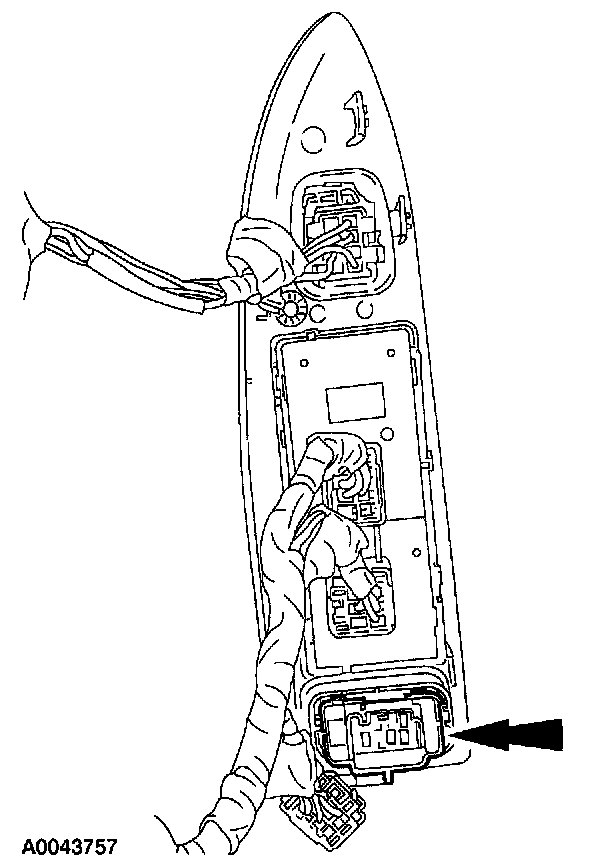

4. Release the clips and remove the door lock switch.

INSTALLATION
1. To install, reverse the removal procedure.
