Lighting Control Module (LCM)

PINPOINT TEST C: NO COMMUNICATION WITH THE LIGHTING CONTROL MODULE (LCM)

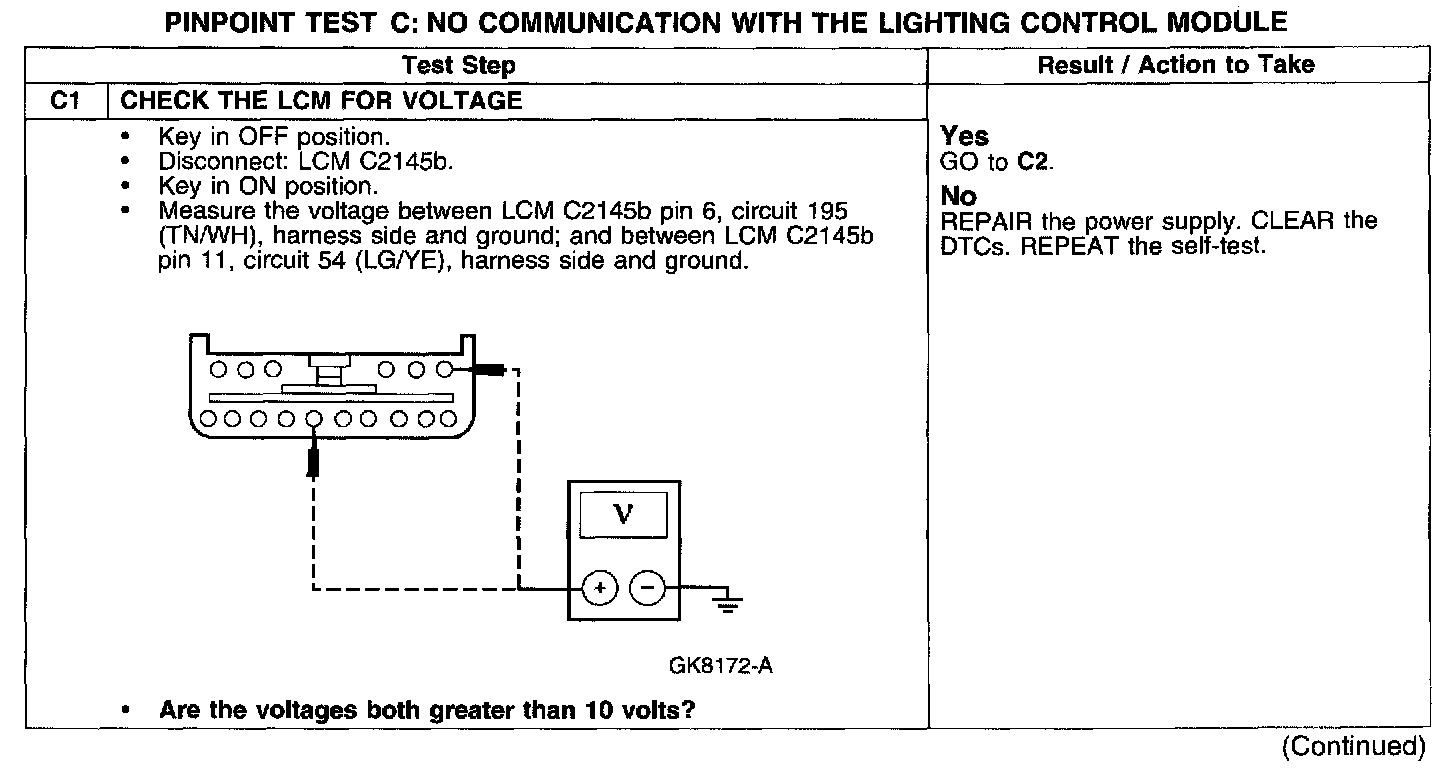

Test C1:

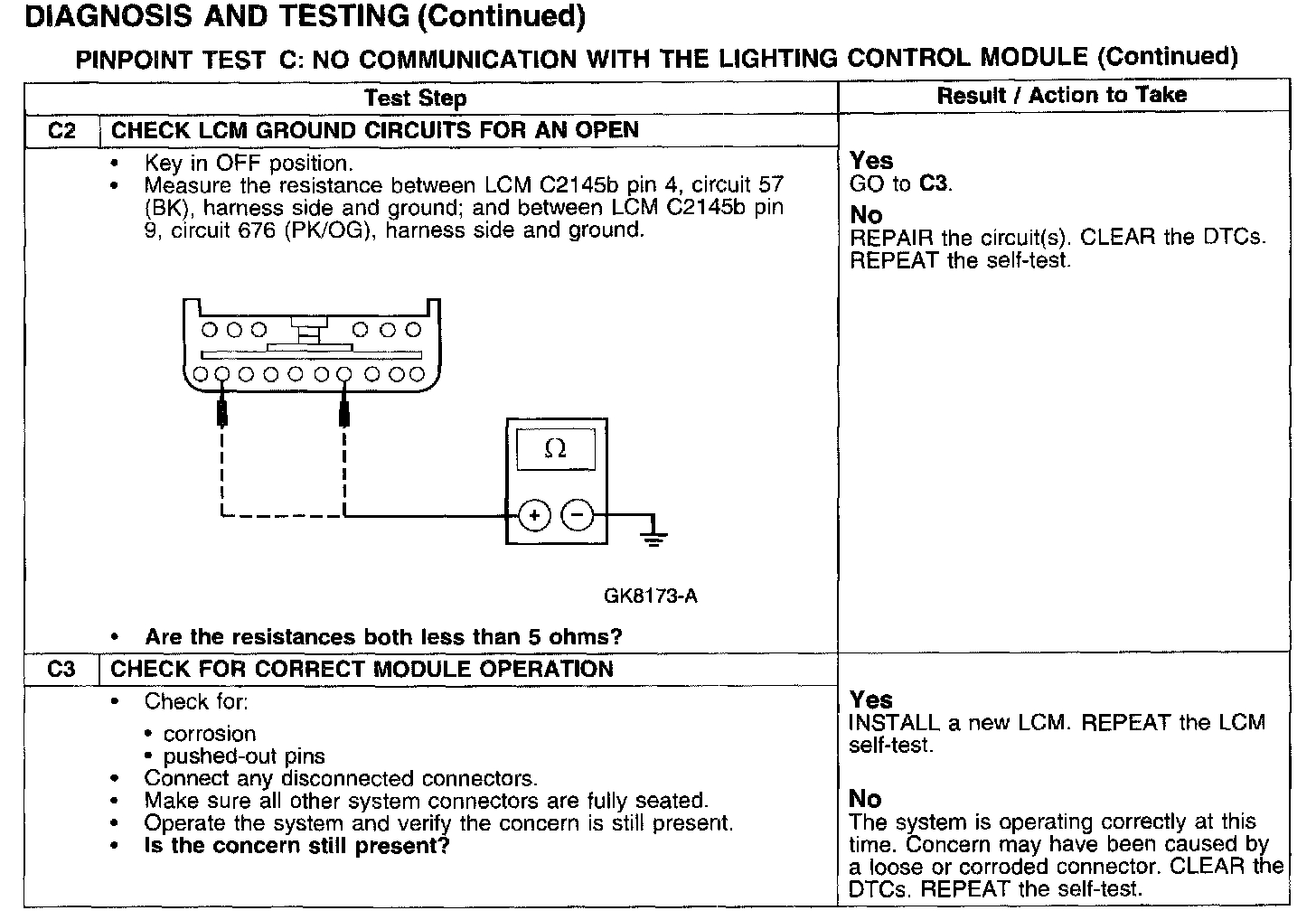

Test C2-C3:
