Air Suspension Module (ASM)

PINPOINT TEST A: NO COMMUNICATION WITH THE AIR SUSPENSION MODULE

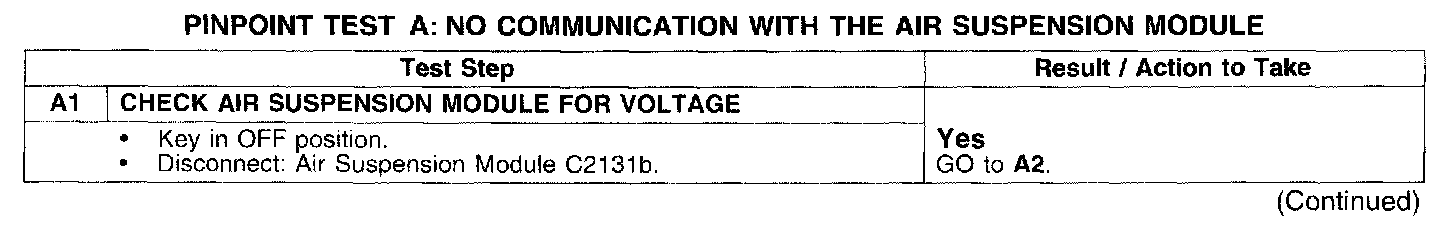

Test A1:

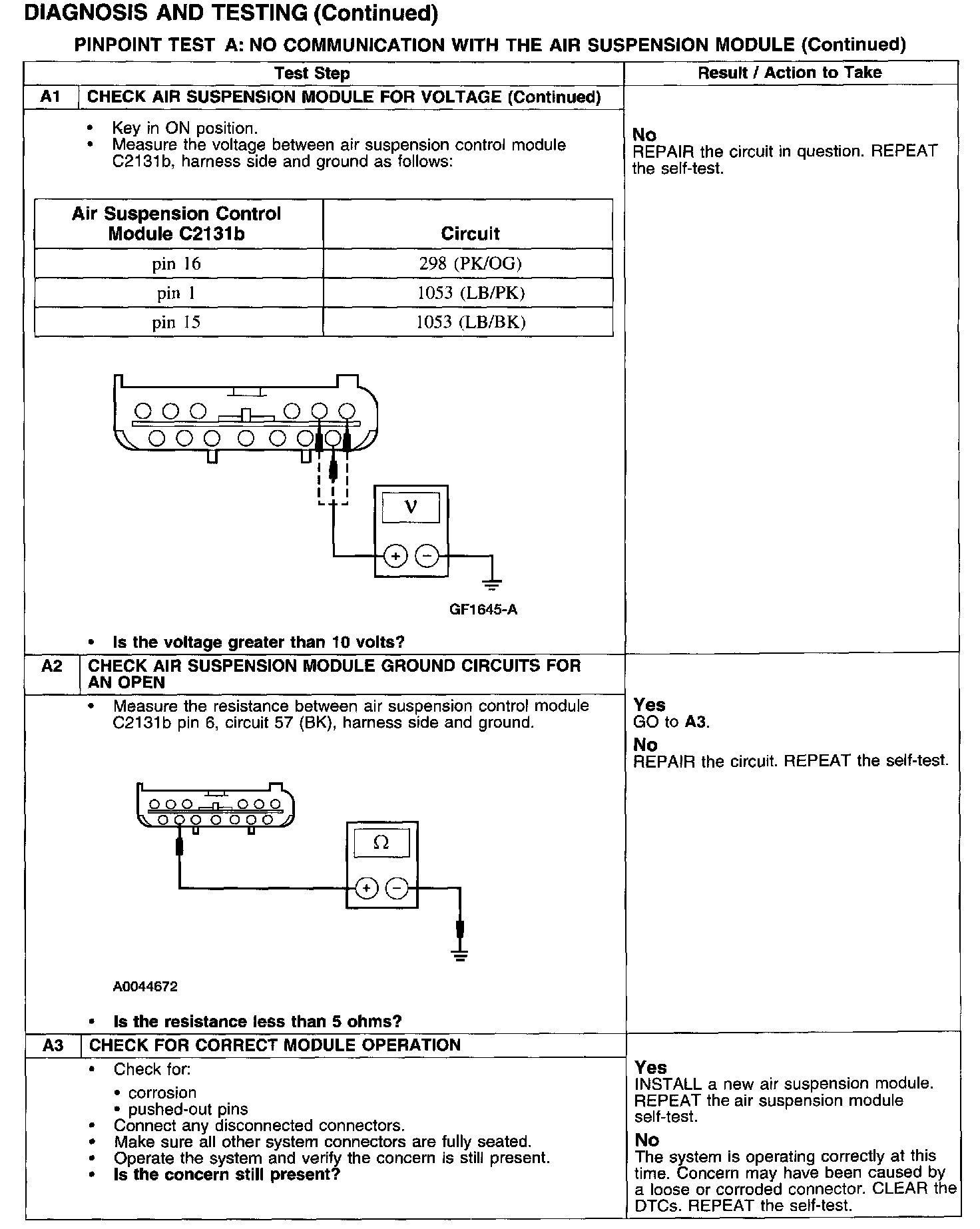

Test A1-A3:
