Intake Air Duct: Service and Repair

REMOVAL







1. Remove the engine appearance cover.

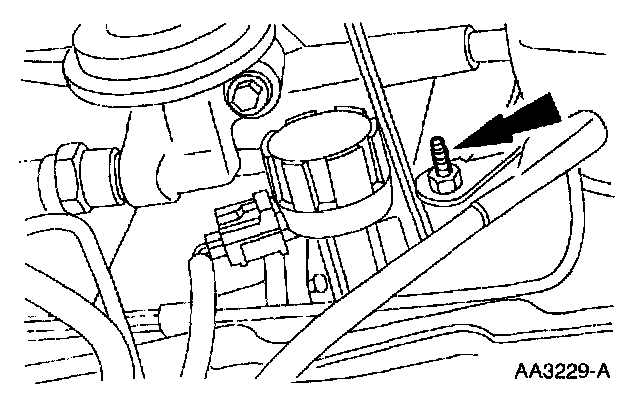

2. Remove the nut securing the air cleaner outlet tube and resonator assembly.

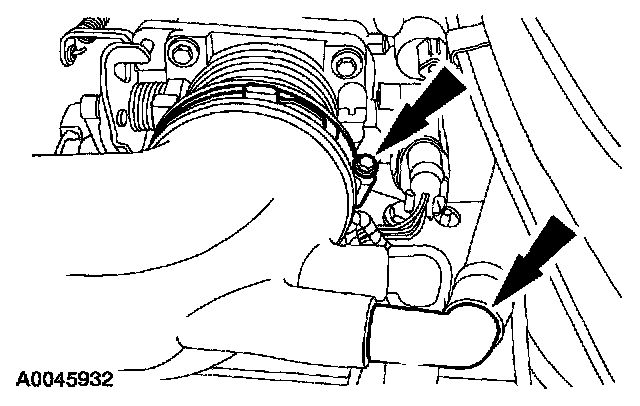

3. Remove the crankcase ventilation hose.







4. Loosen the clamp and disconnect the Idle Air Control (IAC) valve inlet hose.







5. Loosen the clamp and remove the air cleaner outlet tube and resonator assembly.

INSTALLATION
1. To install, reverse the removal procedure.
