Evaporative Emission Control Canister: Service and Repair

REMOVAL
1. Disconnect the battery.

WARNING: THE EVAPORATIVE EMISSION SYSTEM CONTAINS FUEL VAPOR AND CONDENSED FUEL VAPOR. ALTHOUGH NOT PRESENT IN LARGE QUANTITIES, IT STILL PRESENTS THE DANGER OF EXPLOSION OR FIRE. DISCONNECT THE BATTERY GROUND CABLE FROM THE BATTERY TO MINIMIZE THE POSSIBILITY OF AN ELECTRICAL SPARK OCCURRING, POSSIBLY CAUSING A FIRE OR EXPLOSION IF FUEL VAPOR OR FUEL LIQUID IS PRESENT IN THE AREA. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.

2. Raise and support the vehicle.

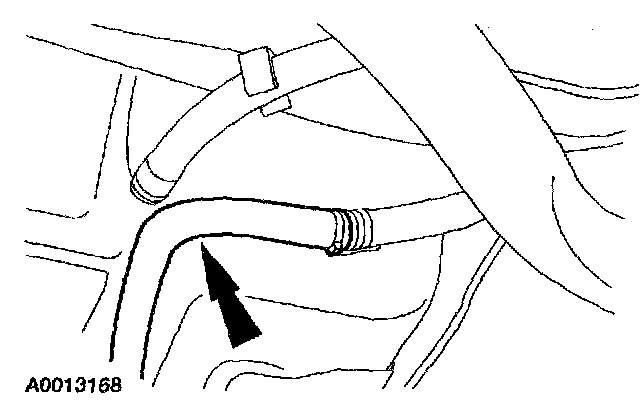

3. Separate the canister vent solenoid hose assembly.

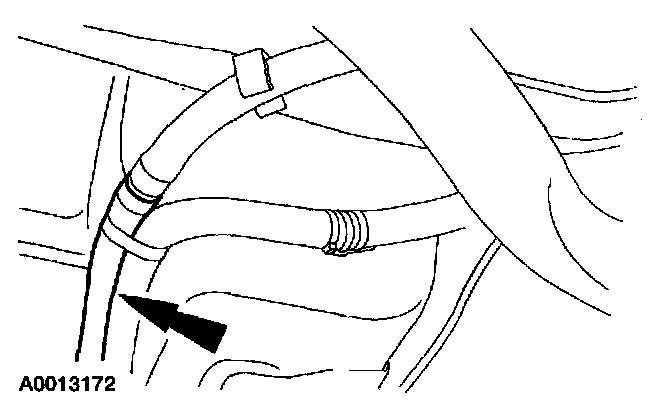

4. Separate the fuel vapor hose assembly.







5. Remove the Evaporative Emissions (EVAP) canister with bracket assembly.

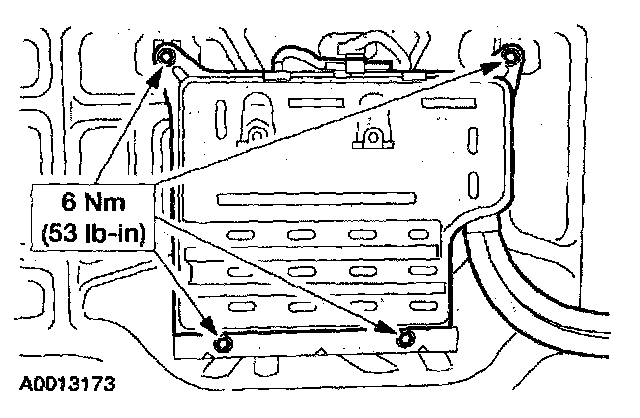

^ Remove the bolts.
^ Remove the nuts.

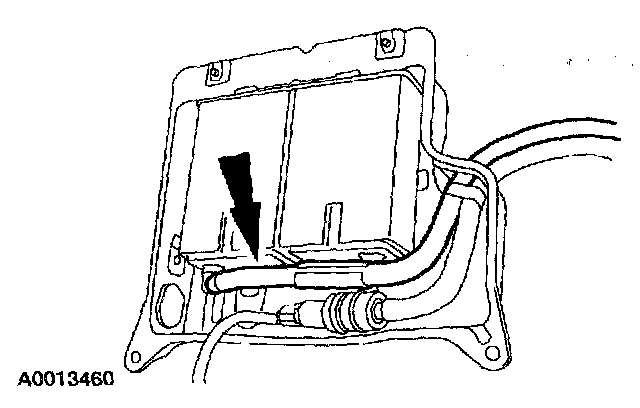

6. Disconnect the fuel vapor hose assembly elbow at the EVAP canister.

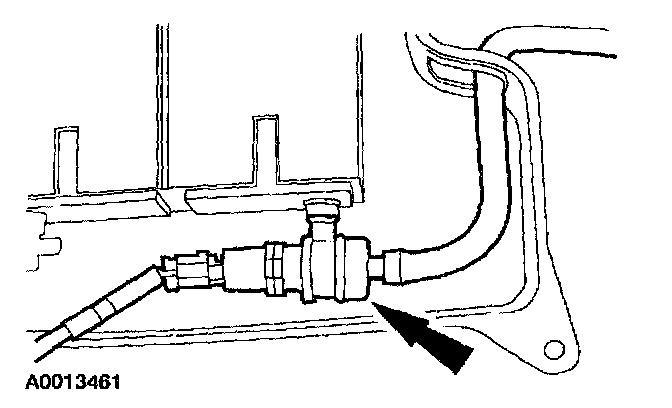

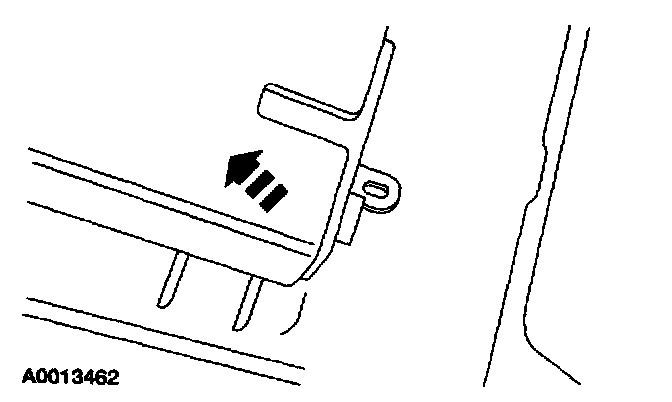

7. Remove the canister vent solenoid from the EVAP canister.







8. Remove the EVAP canister.

INSTALLATION
1. To install, reverse the removal procedure.
^ Leak test the system. Evaporative Emission System Leak Test
^ Carry out the evaporative emission repair verification drive cycle. Evaporative Emission Repair Verification Drive Cycle
