Evaporative Check Valve: Service and Repair
REMOVAL1. Remove the fuel tank.

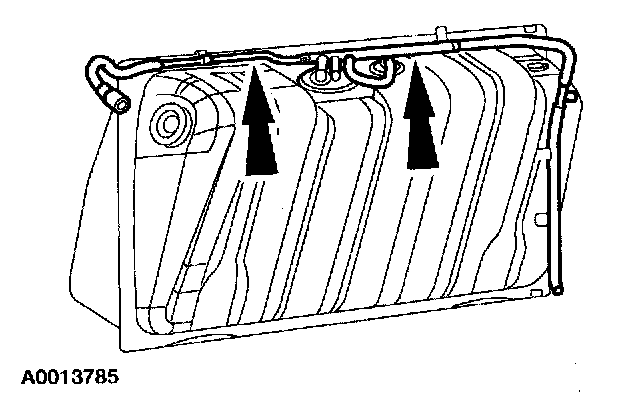

2. Remove the fuel vapor control valve tube assembly.
^ Apply upward pressure on the fuel vapor vent valve.
^ Remove the fuel vapor control valve tube assembly.
CAUTION: The fuel vapor control valve tube assembly and the fuel vapor vent valve are removed as one piece. Do not attempt to separate.
3. Remove the fuel vapor control valve.
^ Push down and rotate counterclockwise.
^ Remove the fuel vapor control valve.
INSTALLATION
1. To install, reverse the removal procedure.
^ Leak test the system. Evaporative Emission System Leak Test
^ Carry out the evaporative emission repair verification drive cycle. Evaporative Emission Repair Verification Drive Cycle
NOTE: Lubricate all O-ring seals with P80 Rubber Lubricant Emulsion or equivalent meeting Ford specification WSE-M99C45-A2.
