PINPOINT TEST K: NO MODULE/NETWORK COMMUNICATION - ISO 9141 NETWORK

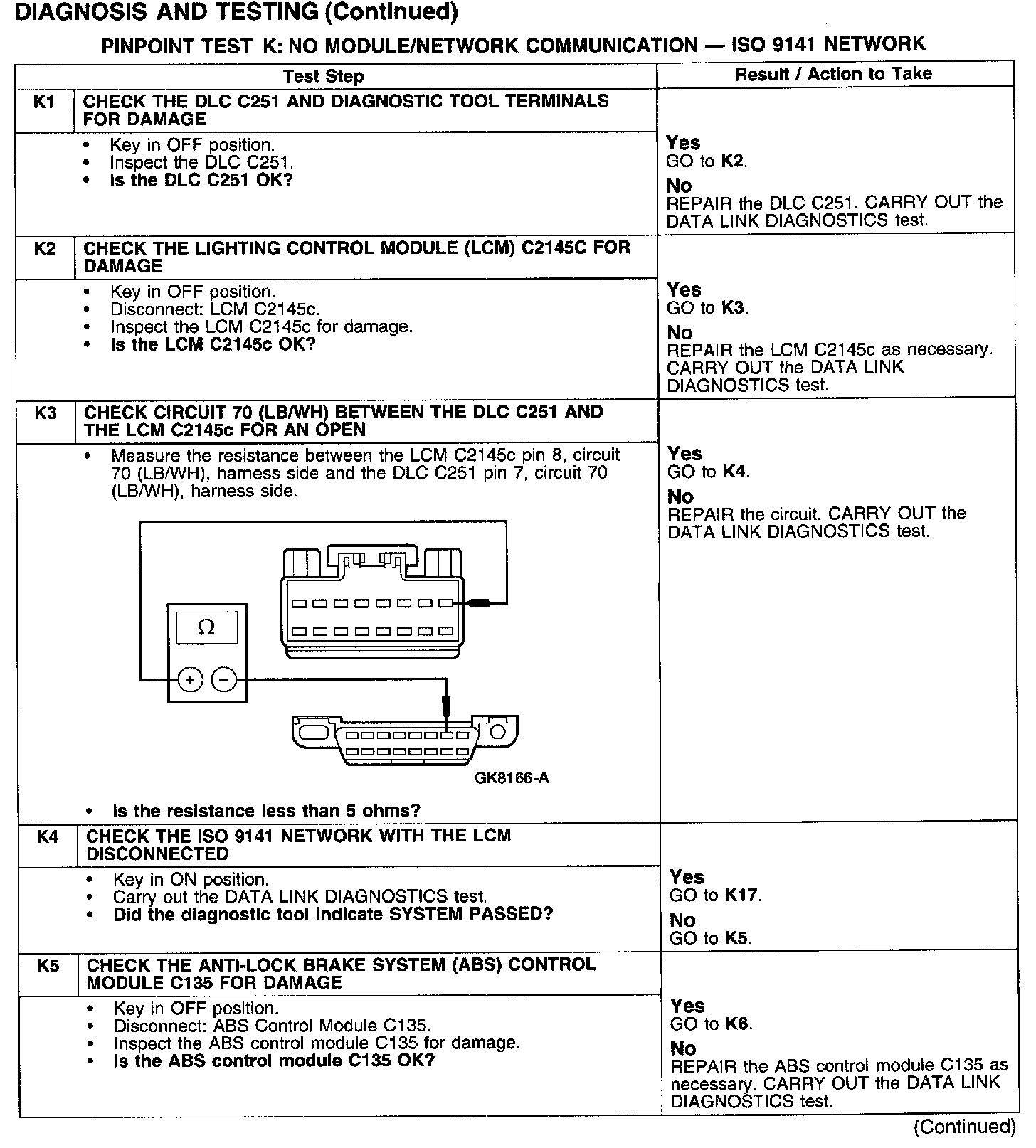

Test K1-K5:

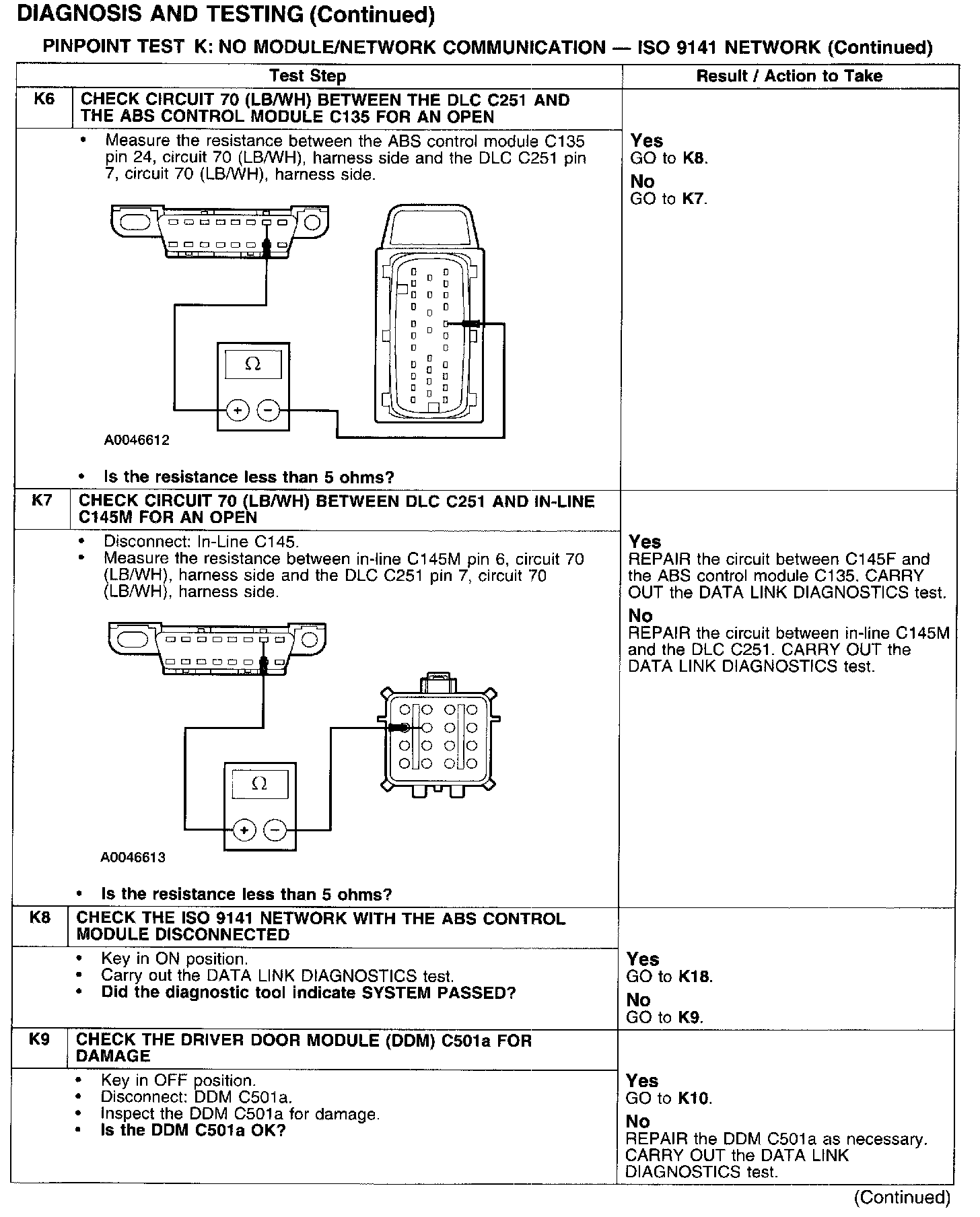

Test K6-K9:

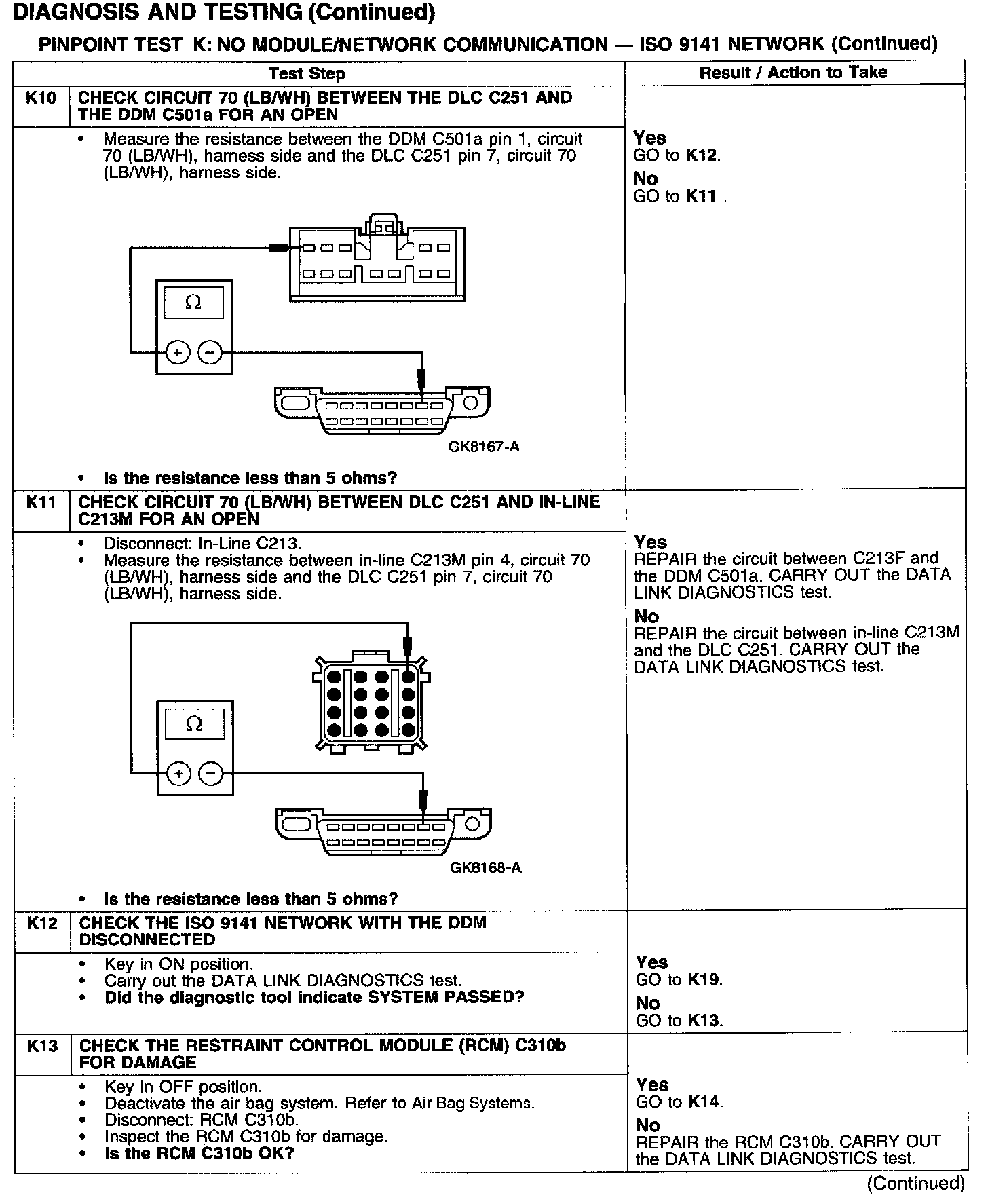

Test K10-K13:

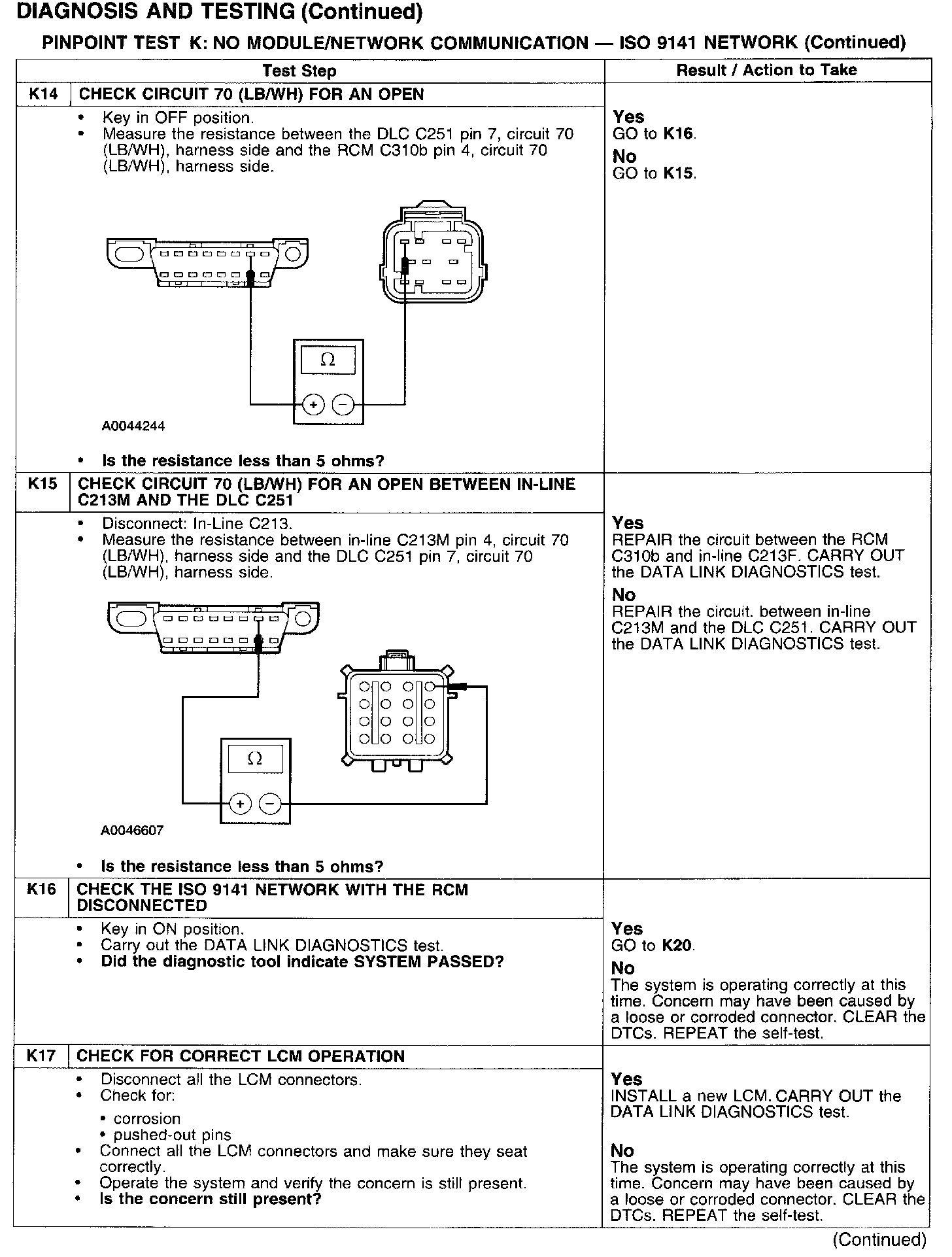

Test K14-K17:

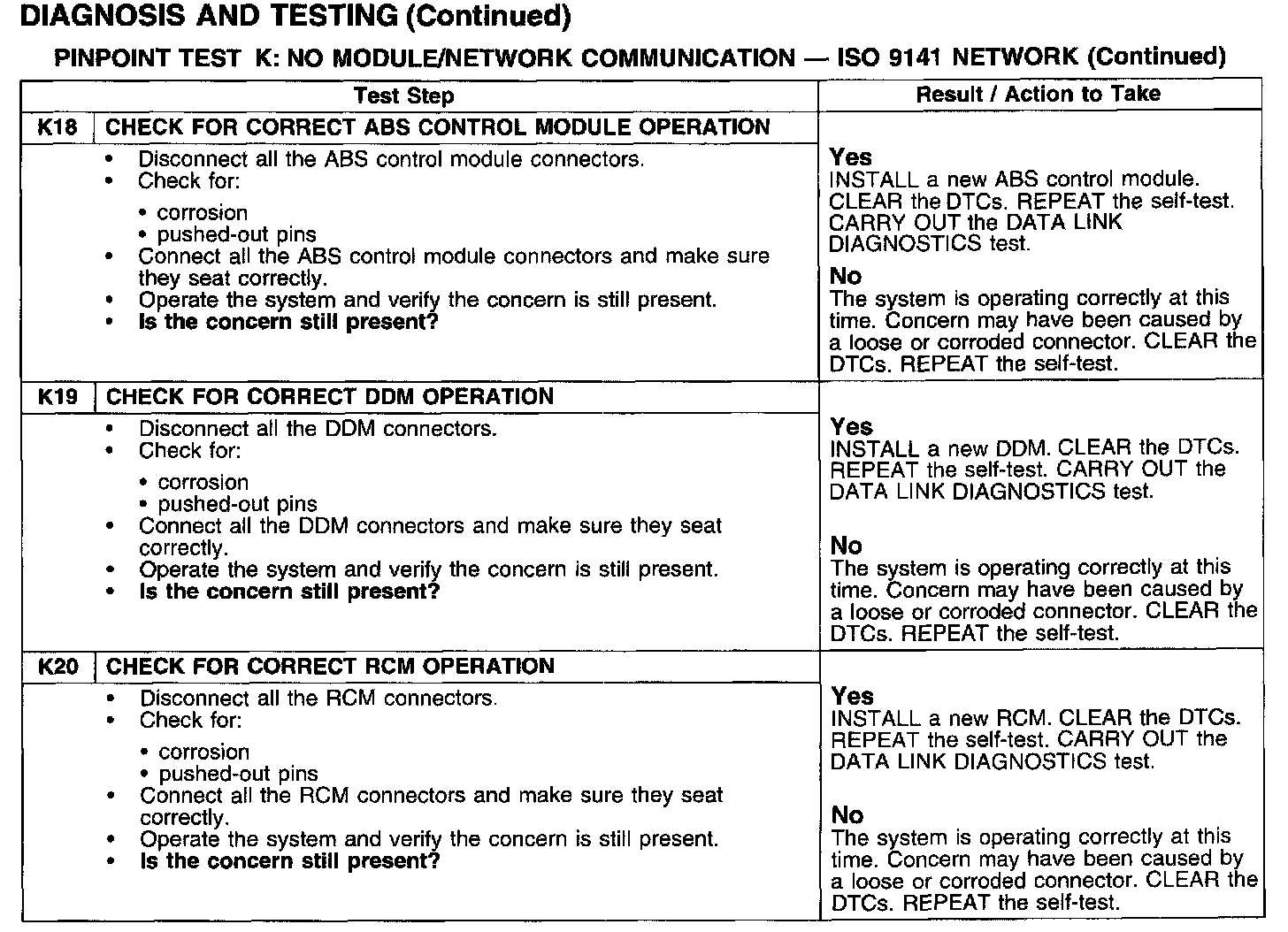

Test K18-K20:
