PINPOINT TEST I: THE VARIABLE ASSIST POWER STEERING (VAPS) MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

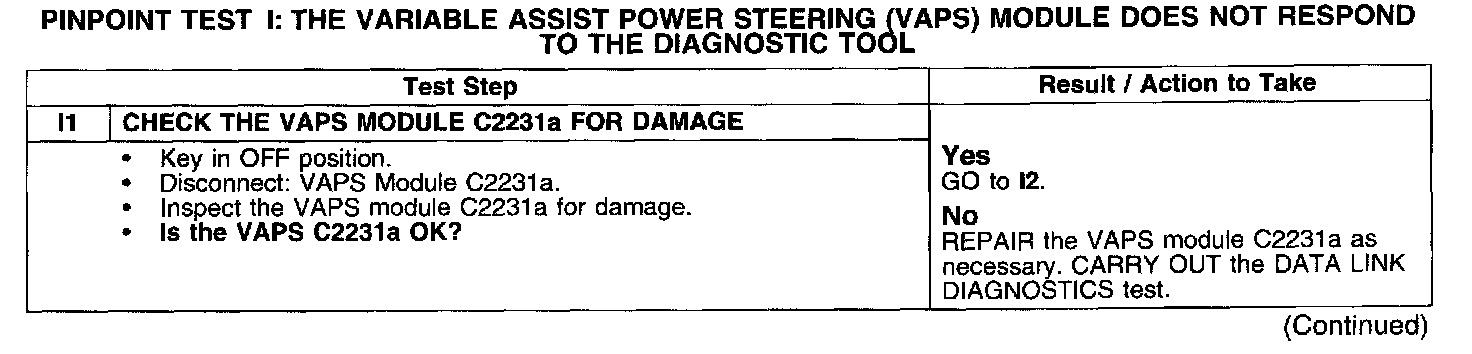

Test I1:

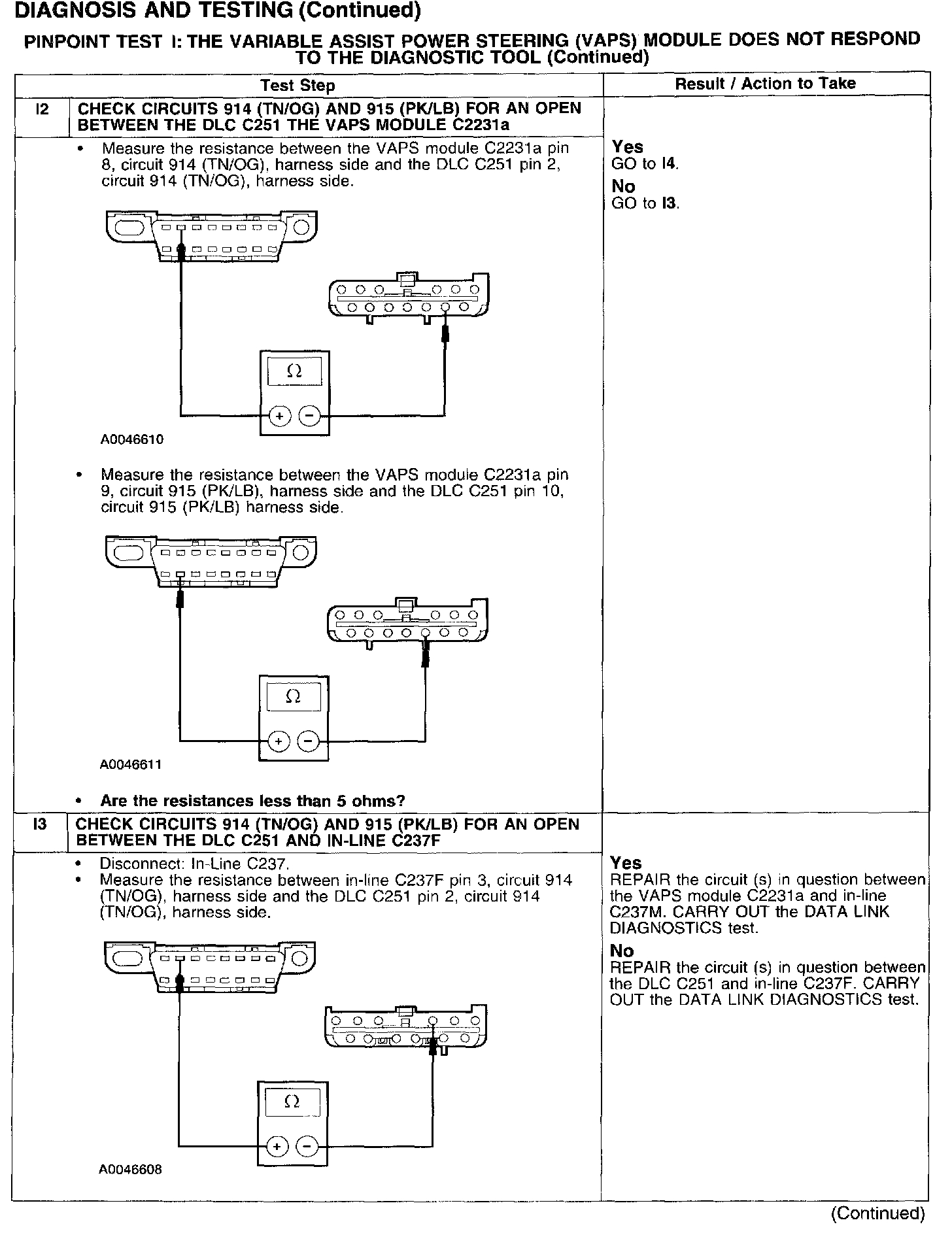

Test I2-I3:

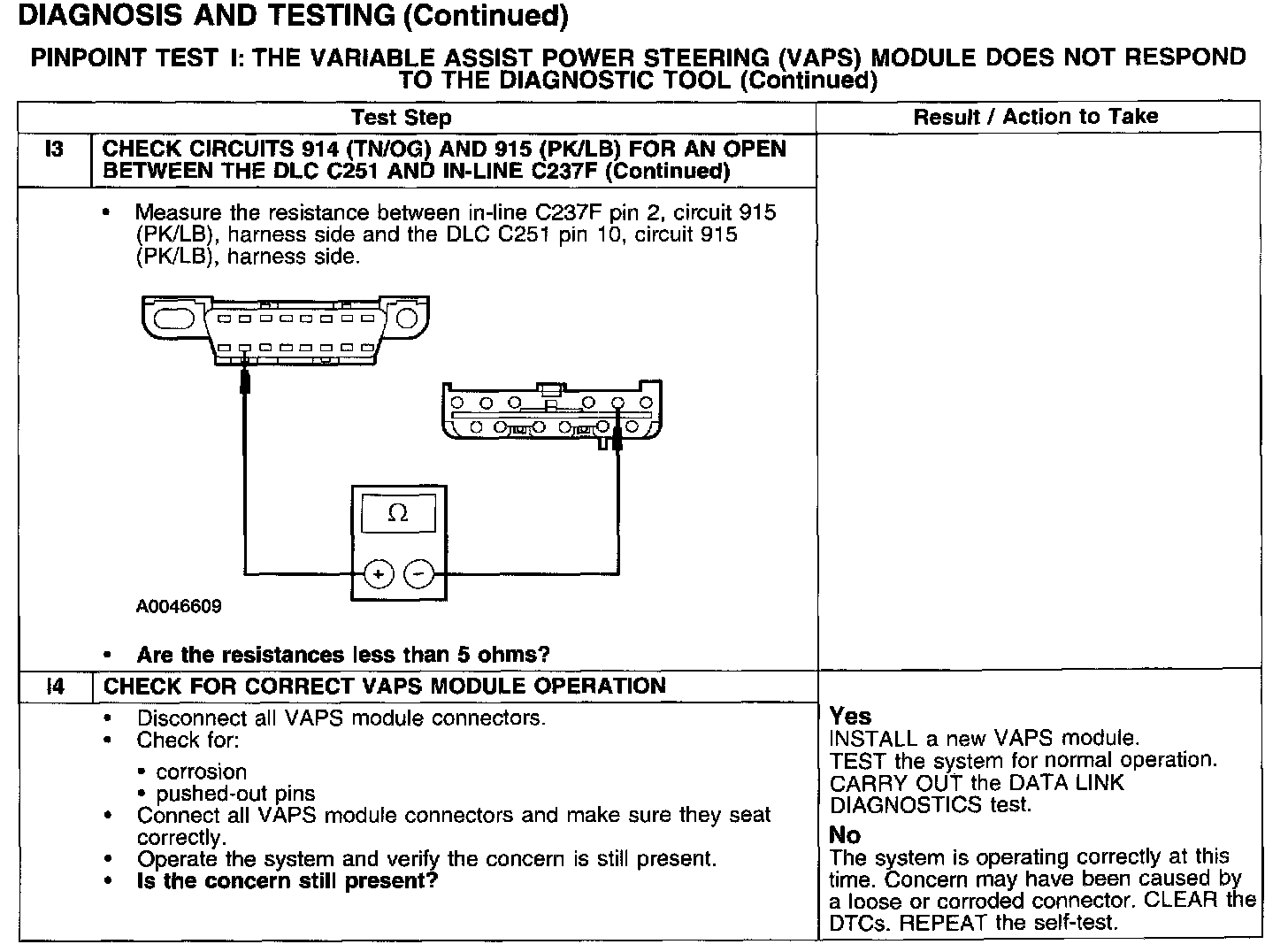

Test I3-I4:
