Test A
Test A
PINPOINT TEST A: THE ANTI-LOCK BRAKE SYSTEM (ABS) CONTROL MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL (SCP)

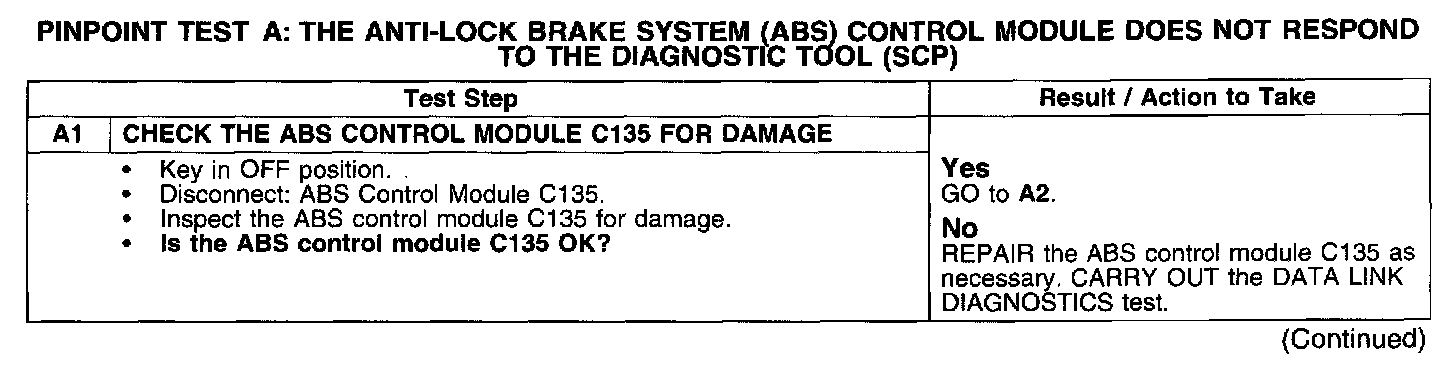

Test A1:

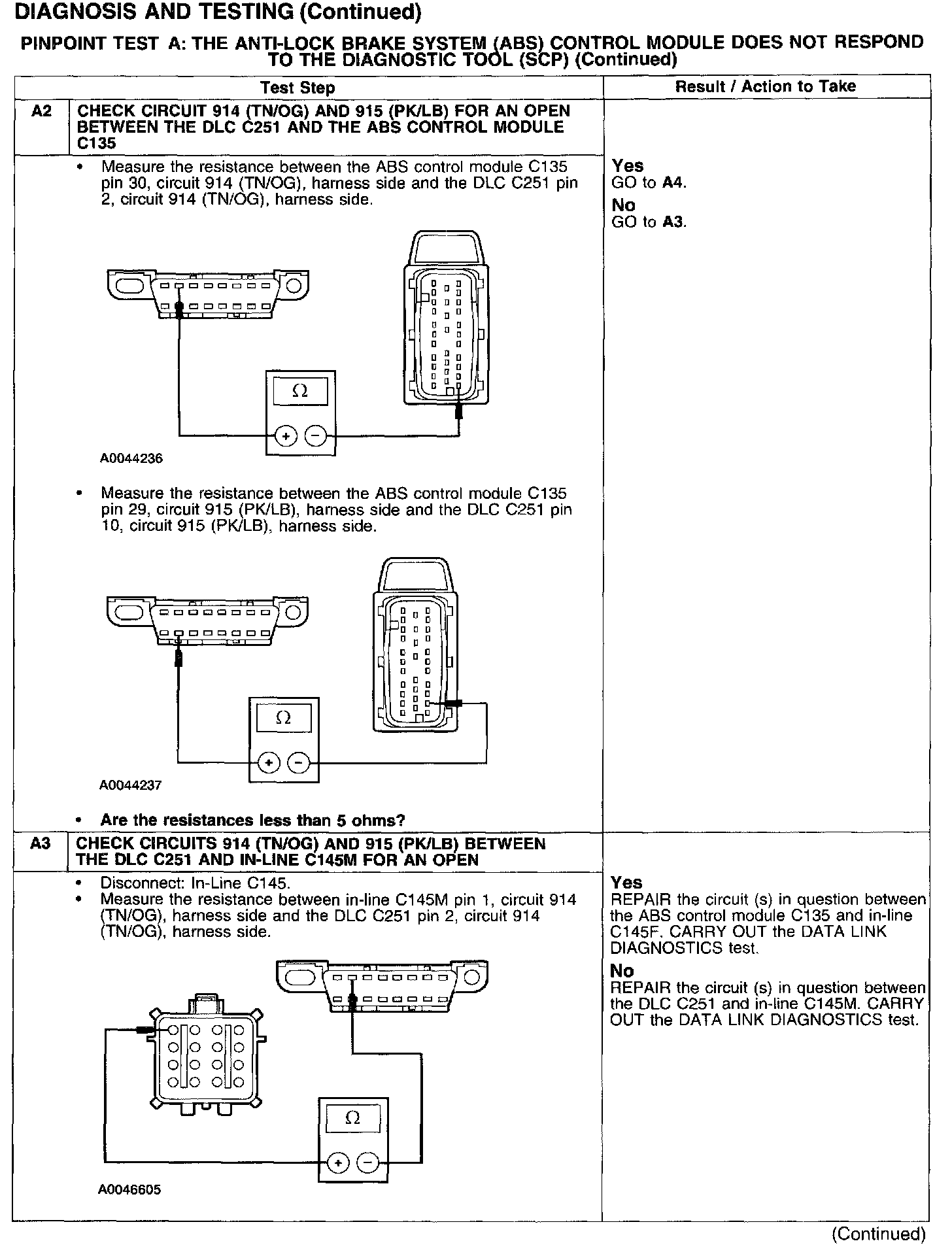

Test A2-A3:

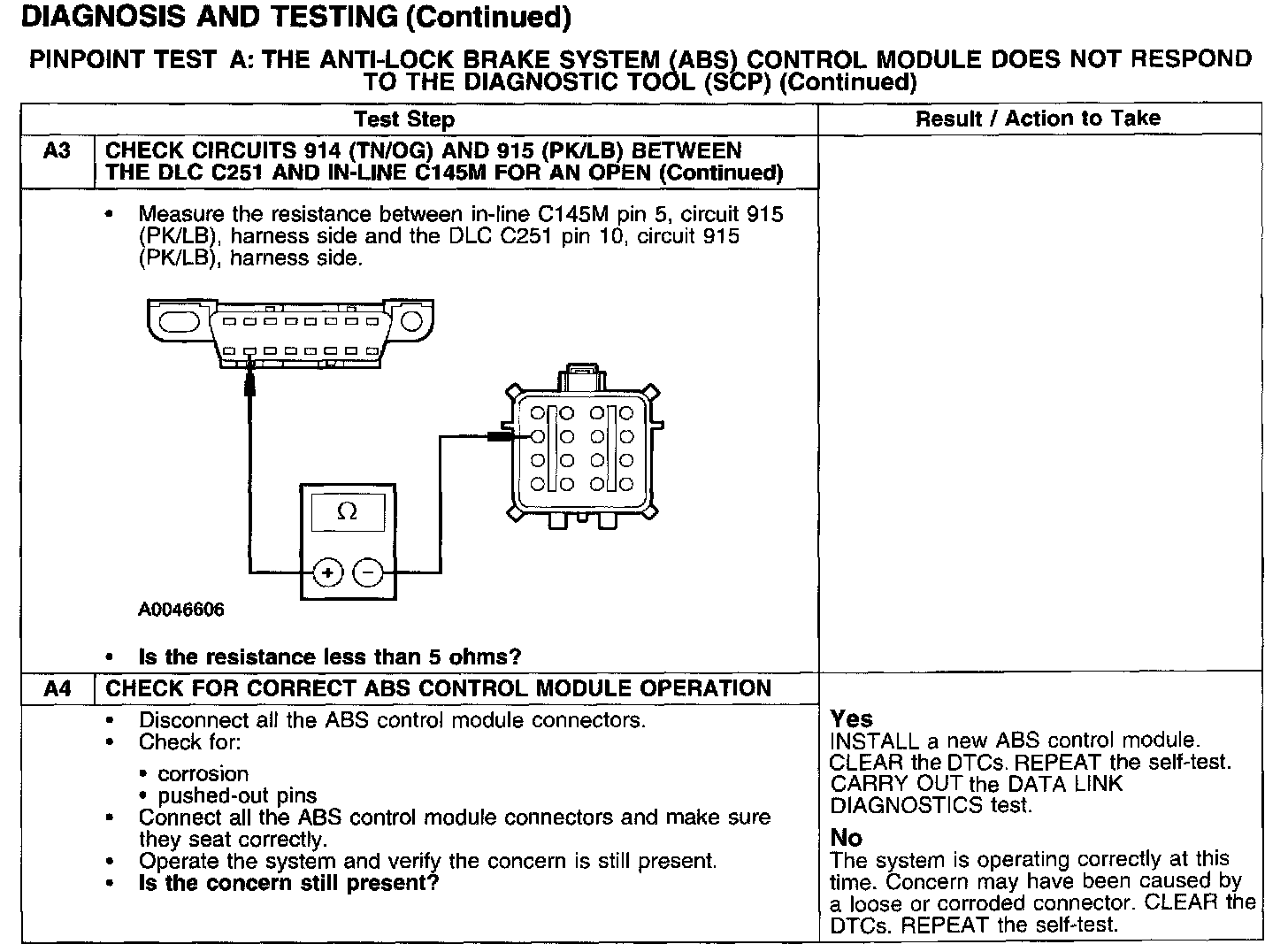

Test A3-A4:
