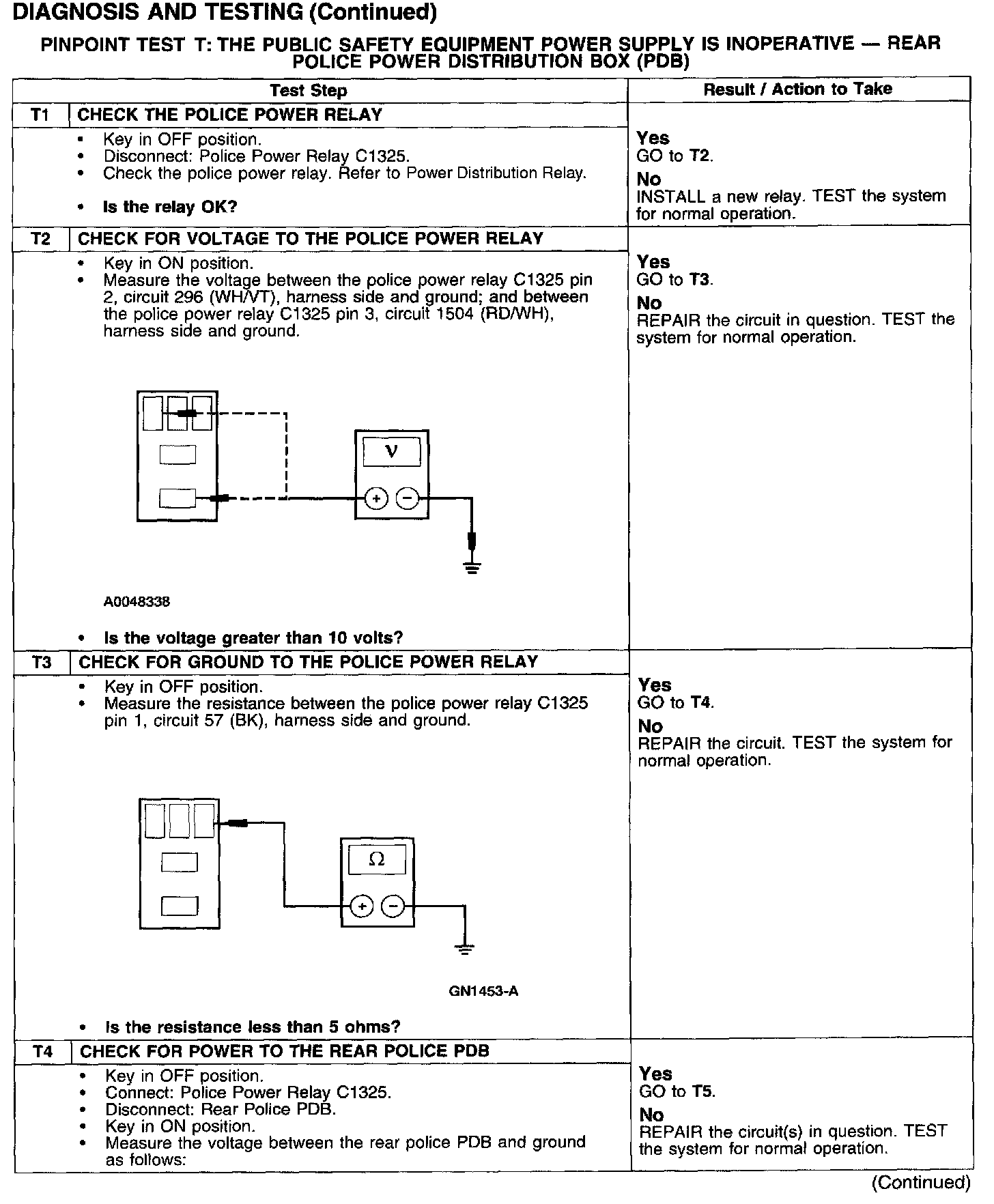

PINPOINT TEST T: THE PUBLIC SAFETY EQUIPMENT POWER SUPPLY IS INOPERATIVE - REAR POLICE POWER DISTRIBUTION BOX (PDB)
Test T1-T4:
Test T4-T5:
