PINPOINT TEST S: THE PUBLIC SAFETY EQUIPMENT POWER SUPPLY IS INOPERATIVE - FRONT POLICE POWER DISTRIBUTION BOX (PDB)

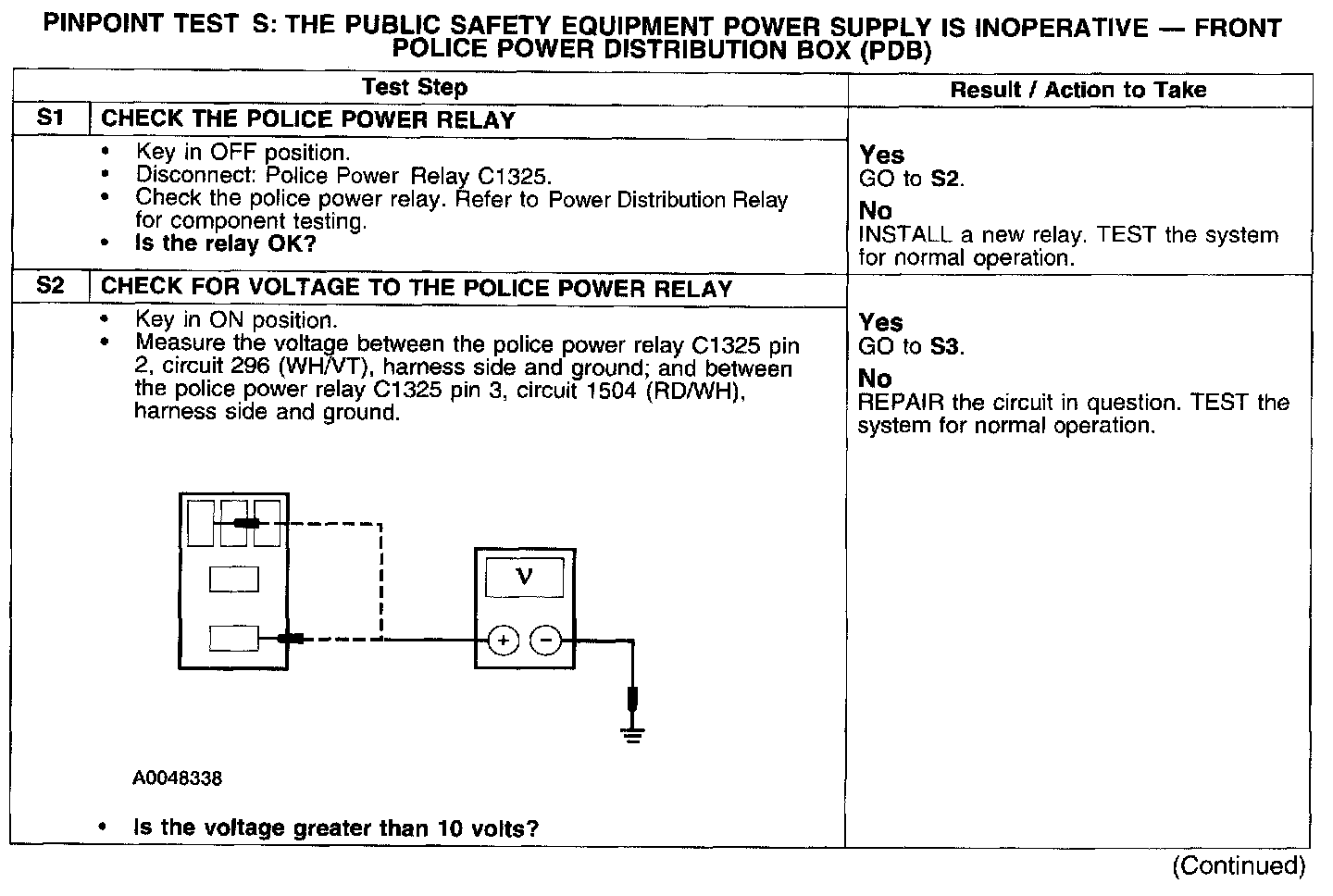

Test S1-S2:

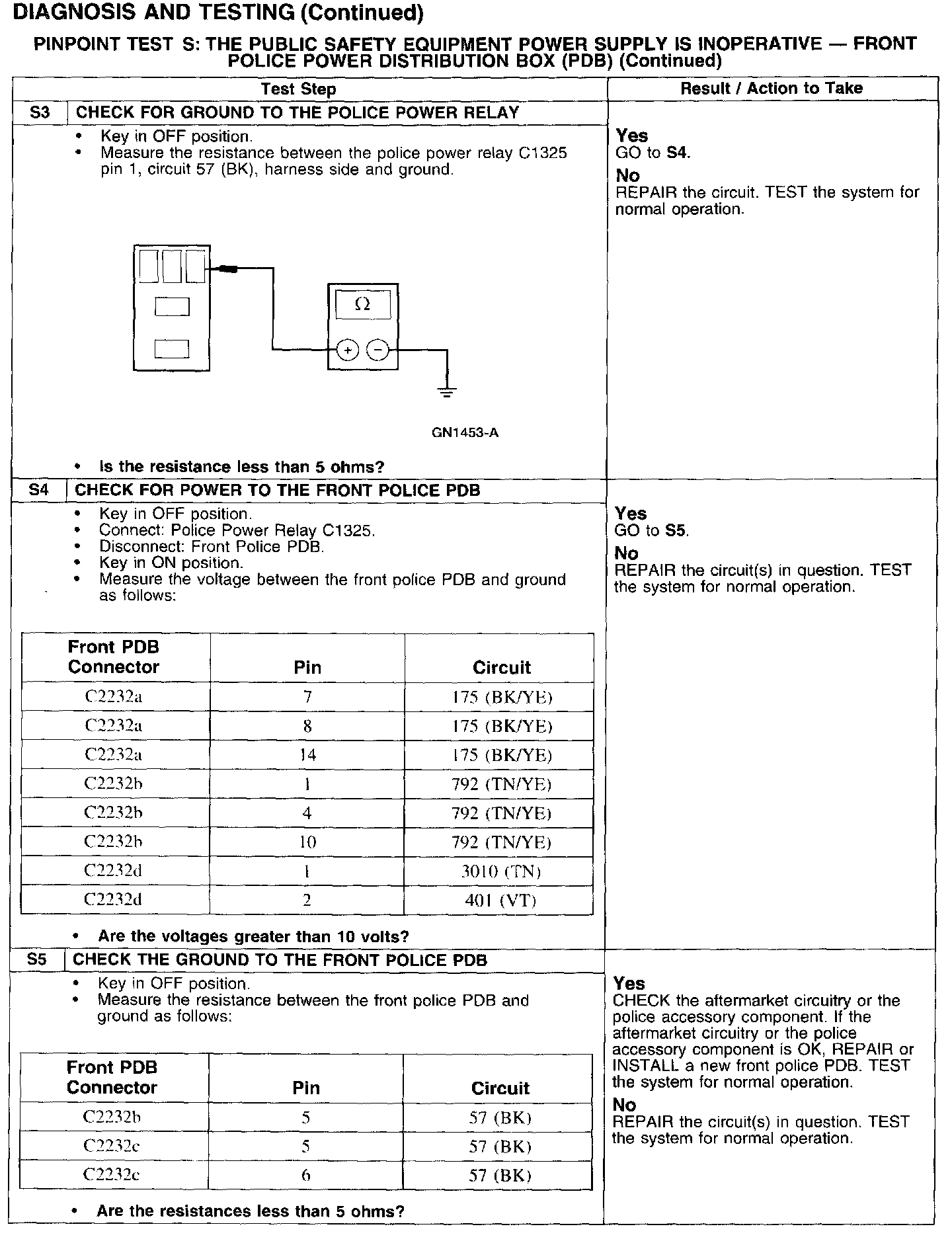

Test S3-S5:
