Tail Lamp: Service and Repair

REMOVAL

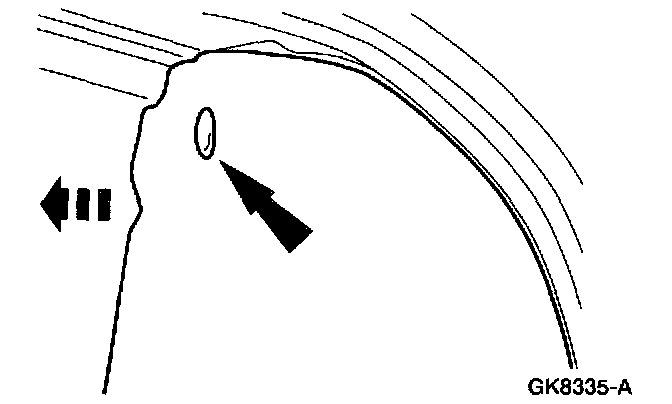

1. Remove the pin-type retainer and position the luggage compartment trim aside.

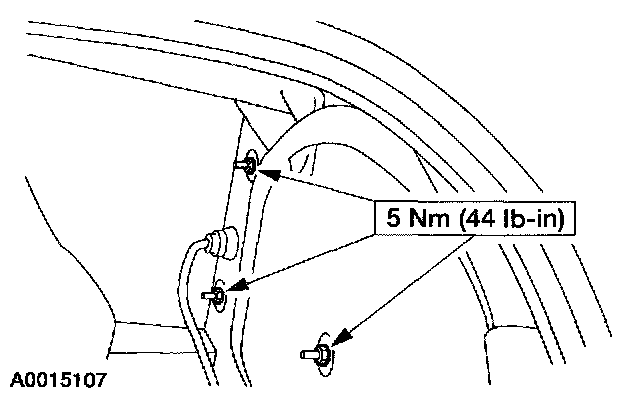

2. Remove the nuts and the rear lamp assembly.
^ Disconnect the electrical connectors.

INSTALLATION
1. To install. reverse the removal procedure.
