Fog/Driving Lamp: Adjustments
Front Fog Lamp Adjustment1. Before starting the fog lamp assembly adjustment:
^ check the tire inflation.
^ make sure there are no other loads in the vehicle other than a half tank of fuel.
^ make sure the vehicle is on level ground.
^ make sure the fog lamps and headlamps are clean.
^ make sure the headlamps are operating and are correctly aimed.
NOTE: Horizontal aim is not required for this vehicle and is not adjustable. Consult your state vehicle inspection center for recommended tolerance ranges for visual aiming.
2. Park the vehicle on a level surface approximately 7.6 meters (25 ft) from the vertical wall or screen directly in front of it.
NOTE: The vertical wall screen must be a minimum of 2.4 meters (8 ft) wide.

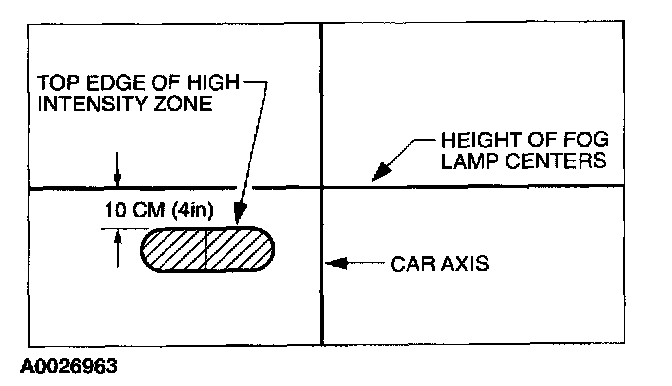

3. The correct visual aim for the fog lamps is with the top edge of the high-intensity zone 10 cm (4 in) below the horizontal center of the fog lamps.
